FILL IN FOR FUTURE REFERENCE:
MODEL: ___________________________________
SERIAL NUMBER: ____________________________
DATE PURCHASED: ___________________________
COMPLETE AND MAIL YOUR WARRANTY REGISTRATION
CARD INCLUDED WITH THIS PRODUCT OR FILE ONLINE AT:
WWW.MDMINC.COM/PUMP-REGISTRATION
XXXXXXXXX
S/N: XXXX-XXXXXX

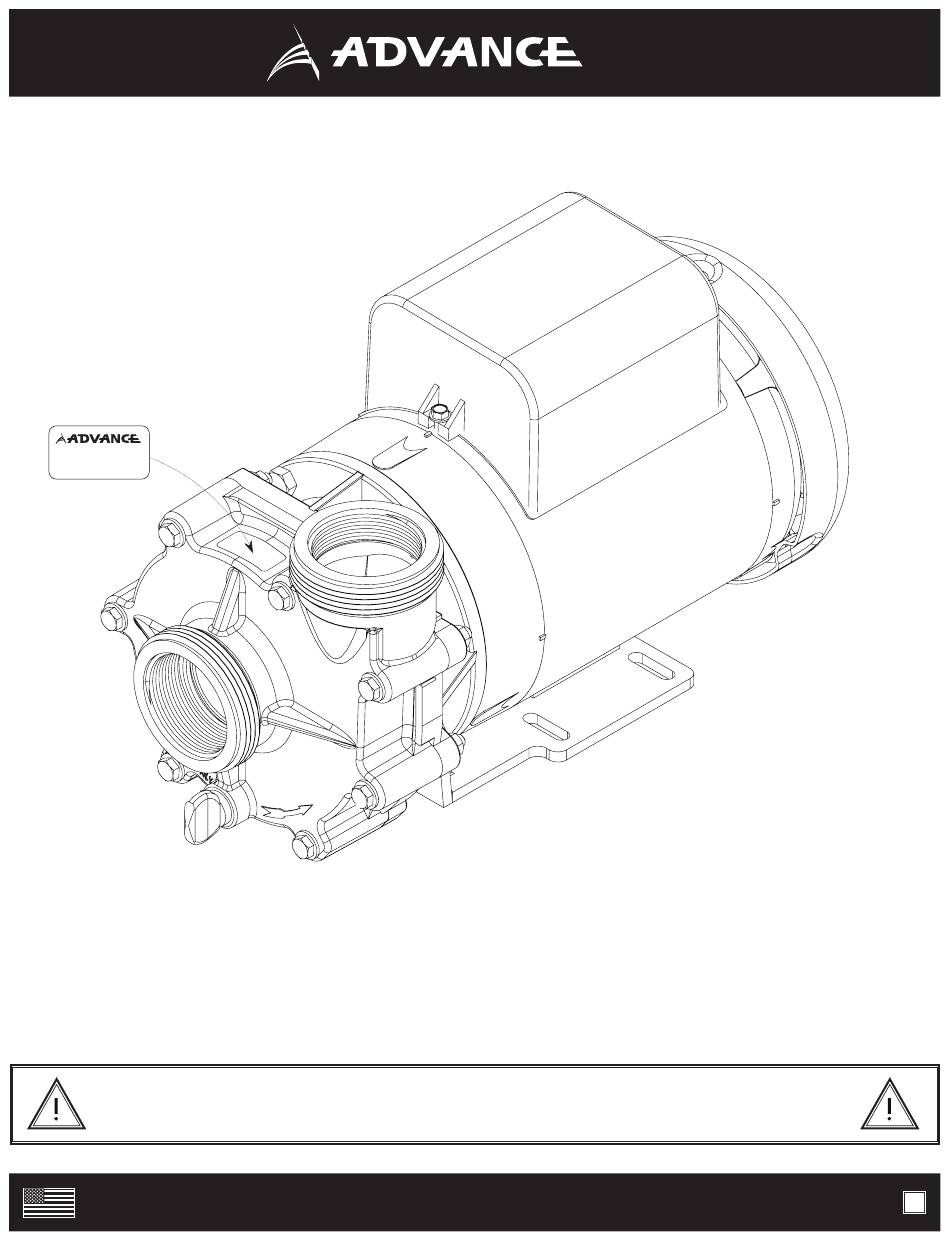

TYPE: END-SUCTION CENTRIFUGAL
MOTOR: NEMA C FACE, 56J
HORSEPOWER: 1/8 HP THROUGH 5 HP
INLET: 2" FNPT AND BUTTRESS THREAD PORT
DISCHARGE: 2" FNPT AND BUTTRESS THREAD PORT
MATERIAL: 30% GLASS-FILLED NORYL® IMPELLER
40% GLASS-FILLED POLYPROPYLENE BRACKET & VOLUTE
HARDWARE: STAINLESS STEEL
Read completely before you install or operate your new pump. Do not allow this pump to become submerged.
Never run dry. Never reverse rotation. Use of a phase rotation meter is highly recommended to prevent damage to the pump.
PROUDLY MADE
IN THE USA
Installation AND SERVICE MANUAL
Never exceed an internal case pressure of: 65 PSI
Corrosion-resistant, non-metallic pumps.
4000
*MOTORS ARE SUBJECT TO CHANGE DUE TO
AVAILABILITY OR SPECIFICATION REQUIREMENTS.
SEAL OPTIONS: STAINLESS STEEL WITH VARIOUS ELASTOMERS
NON-METALLIC IMPENATRA
CONFIGURATIONS FOR CHEMICAL COMPATIBILITY
OTHER OPTIONS: EXTENSION COUPLED, PEDESTAL MOUNTED AND LONG-
COUPLED WITH PEDESTAL MOUNTED PUMP ON FIBER-
GLASS BASEPLATE. PUMP ENDS ALSO AVAILABLE
ACCESSORIES: 500 CUBIC INCH STRAINER BASKET (2")
SWING CHECK VALVES (1.5", 2", 3")
®
SEAL WITH MULTIPLE
© MDM INCORPORATED
P.1
WWW.MDMINC.COM
