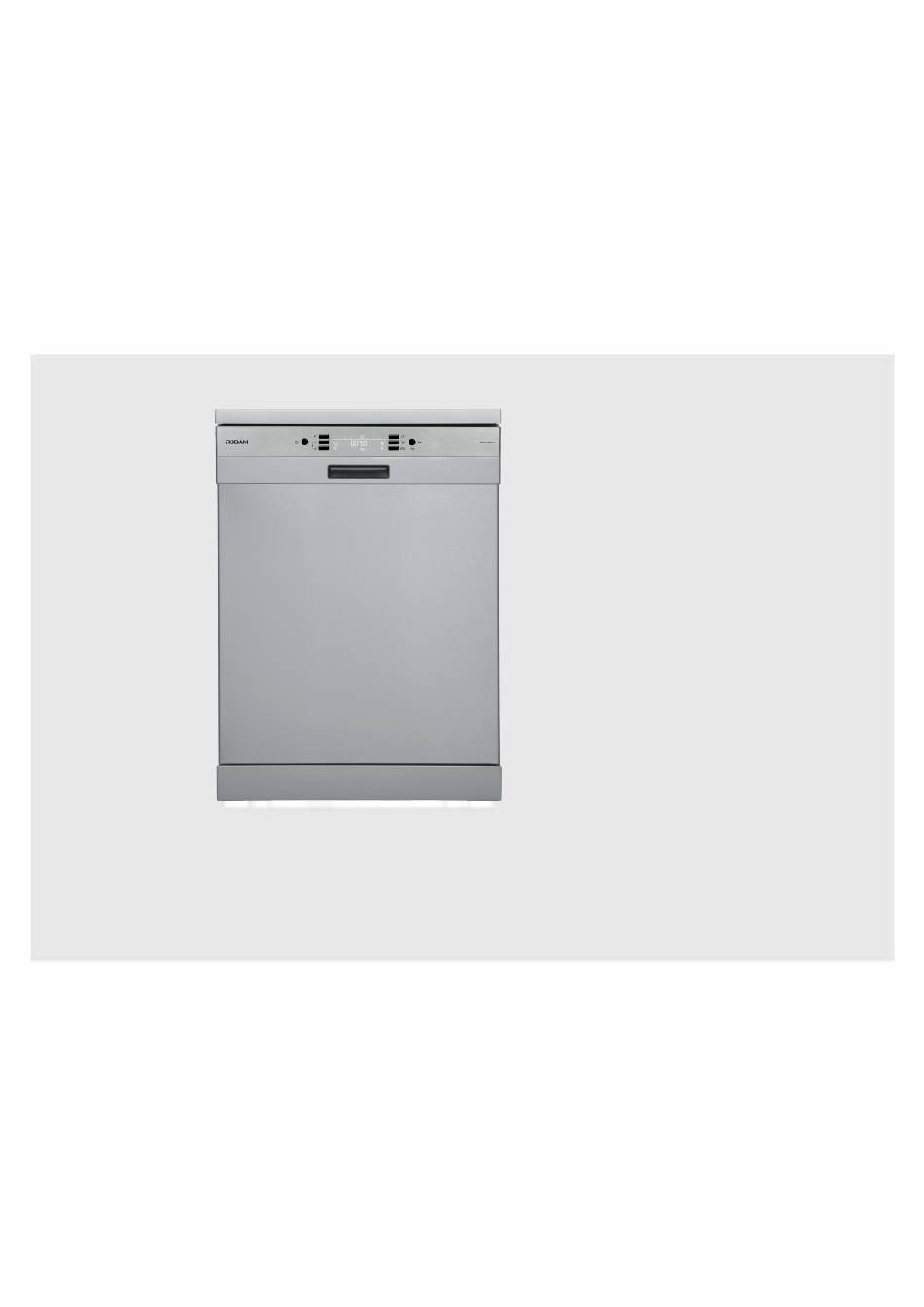

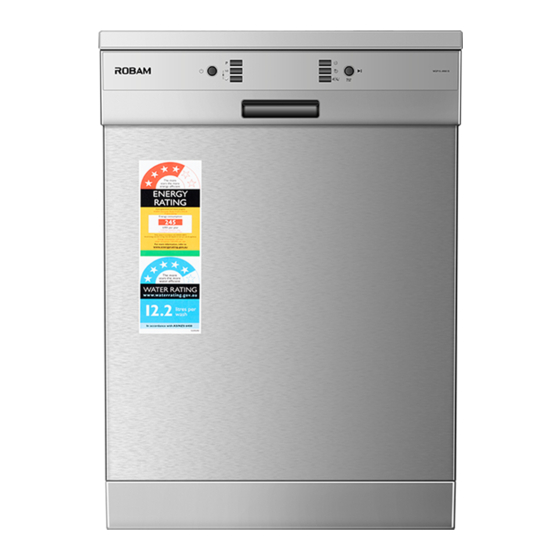

- Page 1 �OBAM User Manual Befare aperating this unit, please read the user manual campletely and keep it. lf the manual is last, yau can sende-mail ta averseas@rabam.cam, request far an electranic manual. WQP15-W651 B WQP15-W651 S Dishwasher...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. lnstallation Warnings .....................2 1.3. During Use ........................2 2.INSTALLATION ......................... 6 2.1. Machine Positioning ..................... 6 2.2. Water Connection ......................6 2.3. Water inlet Hose ......................6 2.4. Drain Hose ........................6 2.5. - Page 7 be performed by an authorised service company, be performed by an authorised service company, otherwise the warranty will be void. othe ise the warranty will be void. 『w /f\ /!\ s efore repair work, the machine should be /2\/2\sefore repair work, the machine should be 。...
- Page 8 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 9: Installation
2. INSTALLATION &wARNING: Run water through the new 2.1. Machine positioning hose before connecting. When positioning the machine, place it in &wARNING: Connect the hose directly an area where dishes can be easily loaded to the water inlet tap. The pressure and unloaded. -
Page 10: Electrical Connection
V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Worktop 1: upper table(only for The earthed plug of the WQP15-W651 B machine must be connected to an WQP15-W651S earthed outlet supplied by suitable voltage and current. -
Page 11: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions (mm) 845 (mm) Height 598(mm) Width 598(mm) Depth Net weight 56 kg Operating 220-240V 50 Hz, voltage / frequency Total current (A) 10(A) Total power (W) 1900(W) Maximum: 1 Water supply (Mpa) Minimum: pressure... -
Page 12: Technical Specifications
When you stop using combined detergents, 4. BEFORE USING THE make sure that rinse aid settings are set to APPLIANCE correct level. 4 . 4 . Rinse-aid usage 4.1. Detergent usage Rinse-aid makes dishes sparkle and helps Only use detergents specifically them to dry without spotting. -
Page 13: Loading Your Dishwasher
5. LOADING YOUR in order to change the rinse aid level, follow the below steps before turning on DISHWASHER the machine: Far best results, follow these loading • Push the programme buttan and hold it guidelines. down. We recommend that you place large items •... - Page 14 Upper Basket Height Adjustment The upper basket includes a mechanism which enables the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.
- Page 15 Four Folding Racks basket, after washing. The folding racks allow easier placement of larger items, such as pots and pans. Each section can be folded separa t ely. The racks can be raised up, or folded down, as shown in the images. The upper cutlery basket is composed of two pieces that can be separately removed.
-
Page 16: Alternative Basket Loads
5.2 Alternative Basket Loads Lower Basket Top basket Incorrect loads EN - 13... -
Page 17: Programme Table
6. PROGRAMME TABLE Duration Programme Description (min) Fast programme intended for recently used dishes which are lightly soiled. Suitable Jetwash for 4 place settings. Quick 30’ Quick wash programme for lightly soiled dishes. Standard programme for dishes which are used daily but are not heavily soiled. (Reference) For both lightly soiled delicate glassware and heavily soiled crockery at the same Dual Pro Wash... -
Page 18: The Control Panel
Starting the Machine and Selecting a Programme 7. THE CONTROL PANEL Press the Power On/Off buttan (1 ), the 3 4 5 6 7 8 display will show the most recently selected programme. Select the programme most suitable for P P P P P P P P your dishes using the Programme buttan (4). -
Page 19: Changing A Programme
corresponding to the status of the programme in operation. While the Drying symbol is displayed, the machine will remain silent tor 45 to 50 minutes. The Remaining Time Display shows the programme durations and the time remaining of the programme in operation. NOTE: A programme may take a different amount of time to complete than initially stated on the display. -
Page 20: Cleaning And Maintenance
8. CLEANING AND the filters. Replace the filter insert, and MAINTENANCE rotate it clockwise (4). • Never use your Dishwasher without a Cleaning your Dishwasher is important filter. to maintain the machine's service life. • lncorrect fitting of the filter will reduce Oil and lime may build up in your the washing effectiveness. -
Page 21: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off buttan. Fuse blown. Check your indoor fuses. The programme does not start. - Page 22 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Whitish stains remains on dishes. Rinse aid dosage Increase rinse aid Drying option is not selected. Select a programme with a drying option. Dishes do not dry.
-
Page 23: 0.Practical Information
AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHATTO DO CODE Make sure the water inlet tap is open and water is flowing Separate the inlet hose from the tap and clean the filter of lnsufficient water the hose. Contact far service if the error continues. - Page 25 Model: WQP15-W651 Edition: A/0 Publication Date: July, 17, 2019 �OBAM 52299753 R35...
