Summary of Contents for BRIFIELD BR1

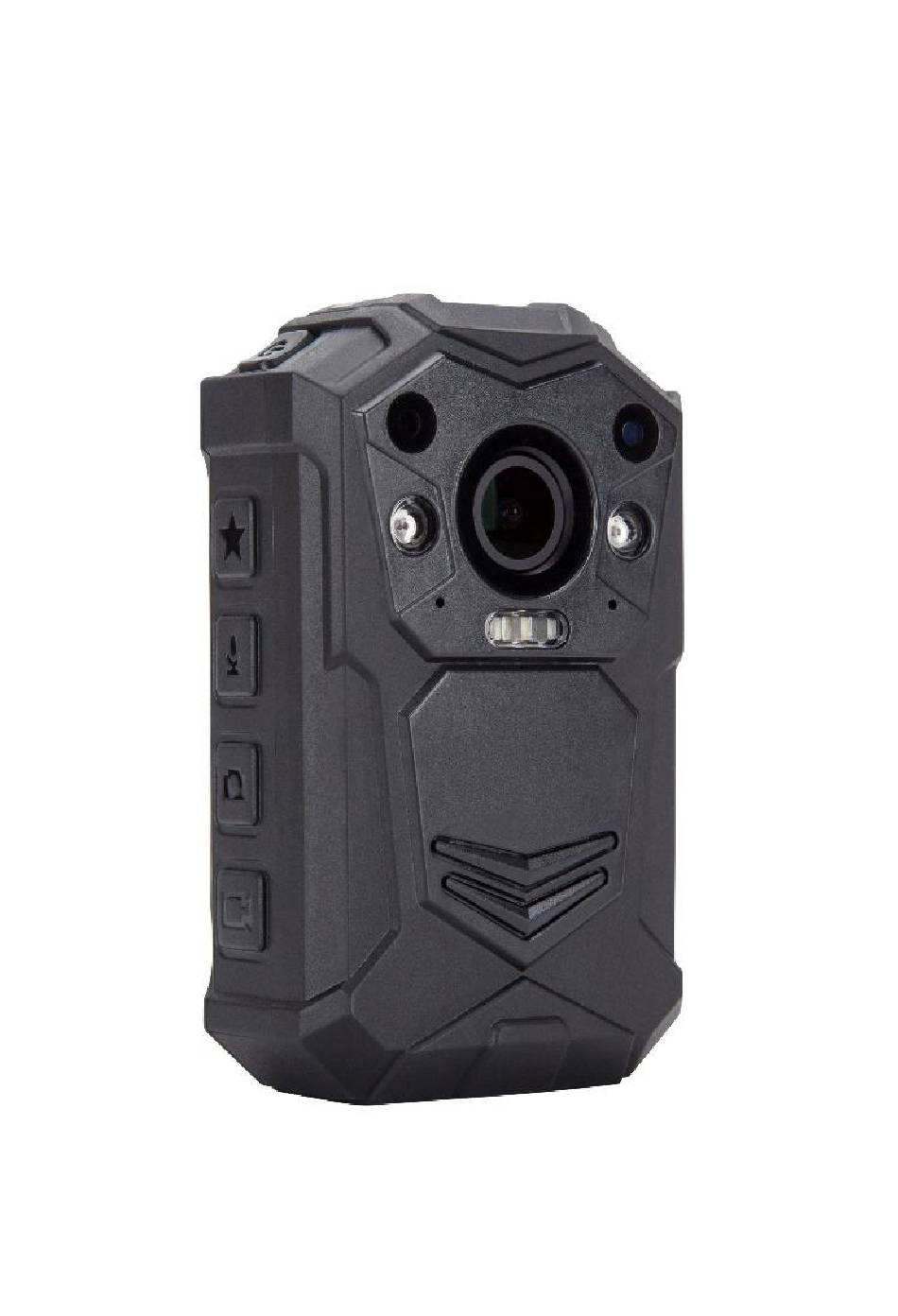

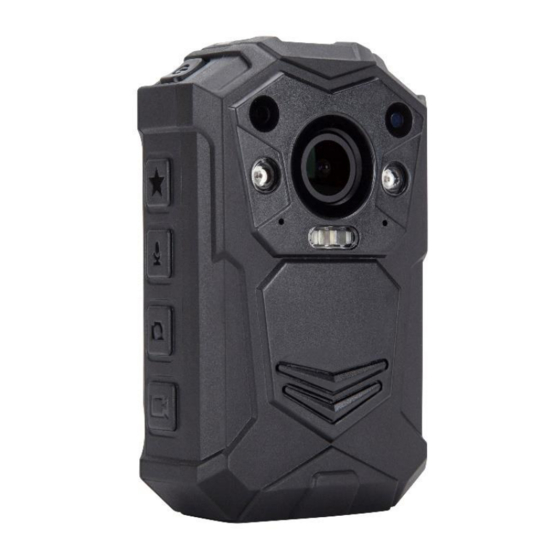

- Page 1 BRIFIELD® BR1 BODY CAMERA USER MANUAL Customer Service Email info@brifield.co.uk...
-
Page 2: Table Of Contents
CONTENTS Page 1: BR1 Diagram Page / 4: BR1 Diagram explanation. Page 5: Screen functions / Menu functions Page / 9: Menu functions Page / 12: Important information Page 12: Product box contents / Customer service... -
Page 4: Br1 Diagram Explanation
BR1 DIAGRAM EXPLANATION 1. Lens: Capture Video and images. The lens is also what triggers the motion detection. 2. Sensor: Detects low and high light levels, this is what triggers the automatic IR night vision. 3. Infrared night vision lights: Gives a white vision that helps in very low light areas, or nighttime. - Page 5 In playback mode, hold to zoom in the image. 8. USB port: Connect the BR1 USB cable to your computer, from there you can transfer your recorded video and audio files, and pictures to the computer. 9. Reset button: Used to reset the device.
- Page 6 17. Power button: Hold for 3 seconds to switch the device on/off. In the menu, press to exit the menu. Press to turn the LCD screen on/off. 18. Dock charging: Used to charge the BR1 body camera via the dock charging unit.
-
Page 7: Screen Functions / Menu
SCREEN FUNCTIONS MENU FUNCTIONS Use left button number 5 to go up. Right button number 7 to go down. Middle button number 6 to select. Button number 17 to go back, also known as the top right power button. Video Resolutions - Change the video resolutions. Picture Megapixel - Change the Megapixel of the camera. - Page 8 Burst: for example, if you select 5 bursts, then when you take a picture, 5 pictures will be taken one after the other. Self-timer: This gives you a countdown, when the countdown reaches 0 then a picture will be taken. Quality: The quality of the video recordings.
- Page 9 Slide show: This allows a slideshow within the internal picture playback mode. Changes picture every 5 seconds. Infrared: Manual Mode lets you turn the IR on and off yourself manually, and auto mode activates the IR automatically when the view in front of the lens is dark and deactivates when the view is light.
- Page 10 Language: Select your language. Screen saver: The amount of time the screen will stay on until the LCD screen turns off. LCD Brightness: Option of Low/Medium/High. Auto Power off: The amount of time the device will remain idle before powering off. LED light: Option to turn the 2 LED lights permanently off.
- Page 11 ID Setting: Change the user ID. Use the left and right keys to change the letter or number and use the middle key to select and move onto the next character. Password: Turn the password on/off. Change password: Use the left and right buttons to change character and use the middle button to select and move onto the next character.
-
Page 12: Important Information
The only way to completely delete your recorded files and free up your memory from your BR1 body camera, is to empty your trash bin on your MAC. If you do not do this, then eventually the memory card will become full, and when it’s full you won’t be able to record... - Page 13 force while turning the stud piece; the stud piece is a sturdy attachment. Transfer files to PC: Plug the USB lead into the computer. Enter the password. Find the drive file on the computer. Once you are in the file, click into the DCIM file.
- Page 14 H.264. If you want more information on H.265 there are many articles online, alternatively email us at info@brifield.co.uk GPS: To activate the GPS, turn it on from within the menu. You can only connect to the GPS outside, not inside.
- Page 15 IP65 Water rating: Please note that the BR1 body camera is not fully waterproof. Do not submerge it into water. IP65 is the rating of the BR1 body camera, this is resistant to weather and dust. Rain will not damage the BR1.
-
Page 16: Product Box Contents
PRODUCT BOX CONTENTS 1 X BR1 BODY CAMERA 1 X USER MANUAL 1 X USB LEAD 1 X UK 3 PIN PLUG 1 X EPAULETTE CLIP 1 X CROCODILE CLIP 1 X CHARGING DOCK 1 X CHEST HARNESS 1 X SHOULDER HARNESS... - Page 17 BRIFIELD® BR1 BODY CAMERA USER MANUAL Customer Service Email info@brifield.co.uk...
