Summary of Contents for Lissmac CDM 46 W

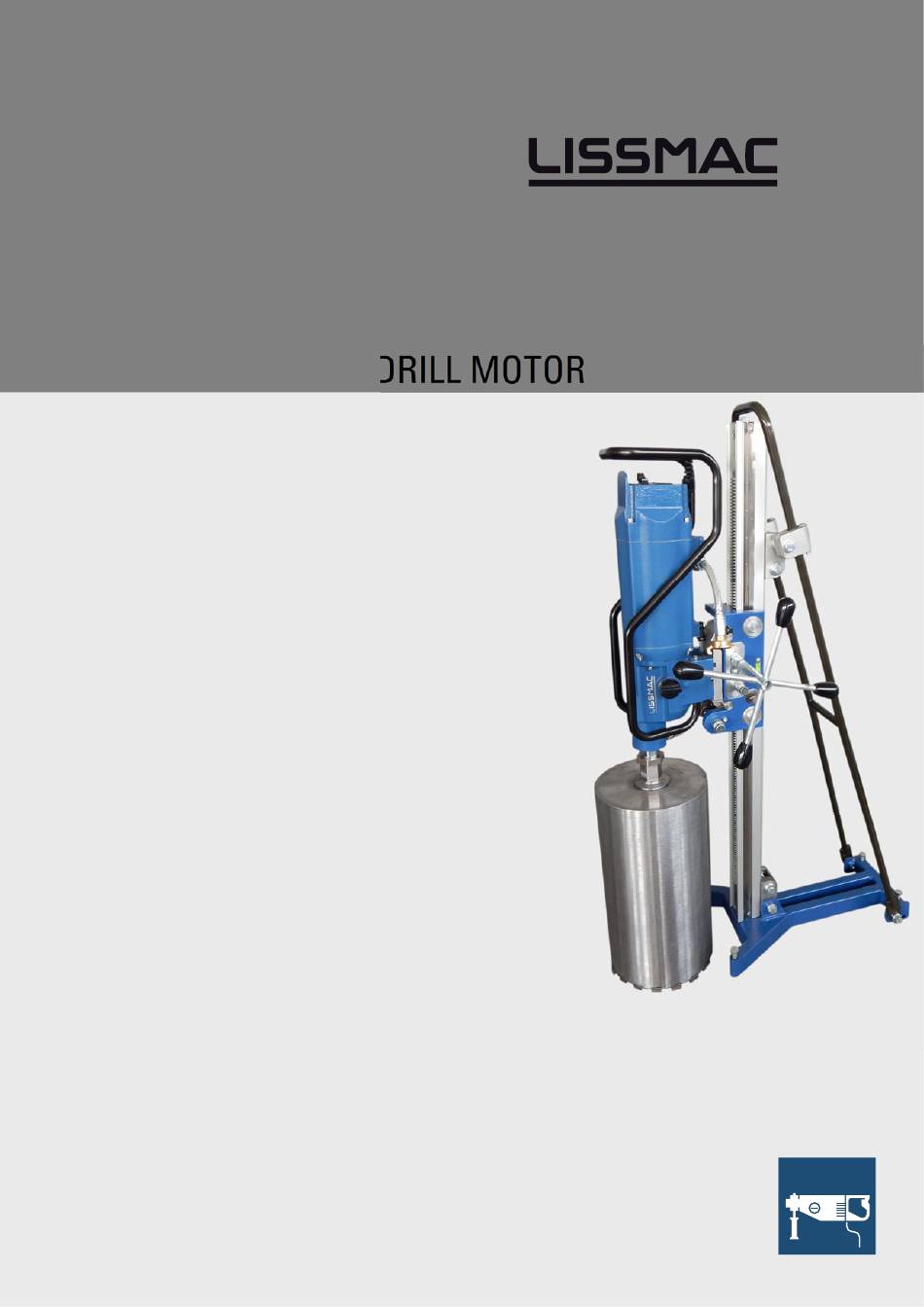

- Page 1 CONSTRUCTION TECHNOLOGY OPERATING MANUAL DIAMOND CORE DRILL MOTOR CDM 46 W CDM 63 W LISSMAC Maschinenbau GmbH Lanzstrasse 4 D-88410 Bad Wurzach Telephone +49 (0) 7564 / 307 - 0 +49 (0) 7564 / 307 - 500 lissmac@lissmac.com www.lissmac.com 1/30...
- Page 2 2/30...
- Page 3 Imprint The operating manual is valid for: LISSMAC diamond core drill motor: CDM 46 W CDM 63 W Company headquarters: LISSMAC Maschinenbau GmbH Lanzstraße 4 D - 88410 Bad Wurzach Phone: +49 (0) 7564 / 307 – 0 Fax: +49 (0) 7564 / 307 –...
- Page 4 BASIC SAFETY INSTRUCTIONS Warning notices and symbols in this operating manual Indicates that with non-compliance the operator potentially suffers injuries. Danger! Indicates that non-compliance can lead to injuries. Caution! Note Indicates that with non-compliance damage to the machine or other materials or property damage can possibly occur.
-
Page 5: Table Of Contents
Additional documentation of the respective manufacturers of individual components of the machine are available as supplements to this operating manual: Core Drill Stand Operating Manual LISSMAC assumes no responsibility or liability for the completeness of any additional documents. Changes and reservations We attempt for this operating manual to be correct and up-to-date. - Page 6 Notes: 6/30...
-
Page 7: Description Of Performance
DESCRIPTION OF PERFORMANCE With their compact, robust design, the CDM 46 W and CDM 63 W provide reliable, user-friendly, professional wet drilling every day on the construction site. The closed core drill motor (water cooled) enables easy overhead drilling without any sealing measures. The careful design of the safety clip secures the core drill in the harsh construction site environment as well as acting as a functional handle for daily transport and simple mounting on drilling stands. - Page 8 1.1.4 The LISSMAC core drill motor CDM 46/CDM 63 is a wet core drill machine and belongs to the device class for stand-guided core drill equipment. The core drill motor is used in combination with water and a diamond tool to drill round holes in stone, concrete and composite materials.
- Page 9 1.2.10 Wear a face protection mask that filters the dust particles in the air. 1.2.11 Visually inspect the drilling machine before use for signs of possible problems. 1.2.12 During use, vibrations are generated around the entire machine. Before putting the machine into service, check that all external fastening elements are properly tightened.
- Page 10 1.3.4. Prevent electrical shocks. Use the device as intended and avoid overloading the machine. The device may only be used for its intended purpose. The machine is only to be used within the intended scope of use to prevent hazardous defects. 1.3.5.
- Page 11 1.3.12. Disconnect electrical equipment from the power supply. Electrical devices must be disconnected from the power supply when not being used, during maintenance and when in a condition that is not ready for operation. 1.3.13. Loose individual parts Devices with loose individual parts must not be used. 1.3.14.
-
Page 12: Machine Description
MACHINE DESCRIPTION 2.1. Description of the core drill motor Pos. 1 Quick release ring Pos. 2 Chassis handle Pos. 3 On/Off switch Pos. 4 Ball valve Pos. 5 Water connection (GEKA) Pos. 6 QUICK-LOC fixture Pos. 7 Motor mounting plate Pos. - Page 13 2.3. Technical data CDM 46 W CDM 63 W Voltage 400 V 400 V Rated power 4600 W 6300 W Output power 3300 W 4350 W Power consumption 8.5 A 11 A Power supply three-phase three-phase Protection system (insulation) Class 2...
-
Page 14: Commissioning
Tools must be protected against humidity during storage. The attached segments must be protected from damage. Note In the LISSMAC sales booklet, the prices for the tools are determined. This sales booklet can be obtained from the manufacturer at any time. 14/30... - Page 15 3.3. Operation Note An approved core drill stand is required for operating the core drilling machine. Drilling without a core drill stand is not intended use and is prohibited! The core drill motor is connected with the core drill stand via the QUICK-LOC plate. For this the mounting plate is screwed on the core drill motor.
-
Page 16: Transport
TRANSPORT Note During transport the core drill motor must be disconnected from the power mains. Disconnect the power supply cable of the core drill motor from the power mains. Remove the tool from the core drill motor. Remove the core drill motor from the core drill stand. OPERATION The core drill motor must be cooled with water for drilling. -
Page 17: Tools
Depending on the application purpose and area, tools are different. To have the best results, the parameters must match. With this diagram, the optimal cutting performance can be determined. Note In the LISSMAC sales booklet, the prices for the tools are determined. This sales booklet can be obtained from the manufacturer at any time. 17/30... -
Page 18: Recycle
The warranty period for this product is 12 months after date of purchase. During this time period LISSMAC Maschinenbau GmbH performs repairs or part replacement at their own discretion free of charge, as long as it is due to a material or processing error. Parts that have been subject to normal wear and tear or are damaged due to improper use are not included in this warranty. -
Page 19: Conditional Connections
CONDITIONAL CONNECTIONS Conditional connections according to EN 61000-3-3:2009 or IEC 61000-3-11 RA=0.15Ω jXA=0.1Ω on 50 Hz RN=0.1Ω jXN=0.06Ω on 50 Hz 19/30... -
Page 20: Spare Parts List
SPARE PARTS LIST Item Item no. Designation Specification 1006290 HANDLE BAR CDM 46 W CPL. TRANSPORT/SAFETY CLIP CYLINDER HEAD SCREW M6x40 LOCKING WASHER M6-0.6x5.4 1006294 HANDLE BAR CDM 63 W CPL. TRANSPORT/SAFETY CLIP CYLINDER HEAD SCREW M6x40 LOCKING WASHER M6-0.6x5.4 1006297 COOLING SYSTEM CONNECTION HOSE, CPL. - Page 21 Item Item no. Designation Specification O-RING CYLINDER HEAD SCREW M5x12 GEAR SHIFT LEAVER GEAR SHIFT KNOB LOCKING RING DISC SPRING Ø45x22.4x2.5 SPINDLE WHEEL BRAKE DISC Ø46.7xØ26.1x7 PRESSURE RING BRAKE DISC PRESSURE SLEEVE NEEDLE BEARING HK2016 HEXAGON NUT M22xP1.5x18mm CYLINDER HEAD SCREW M5x40 LOCKING WASHER M6-0.6x5.4...
- Page 22 SHAFT WASHER ROTOR 60 -2 BEARING 60 -3 BEARING 1006304 ELECTRIC MODULE KIT CDM 46 W ROUND HEAD PHILIPS HEAD SCREW ELECTRIC MODULE CDM 63 W CONNECTING PIECE 1006305 ELECTRIC MODULE KIT CDM 63 W ROUND HEAD PHILIPS HEAD SCREW...
- Page 23 Item Item no. Designation Specification 1006309 DRIVE CDM 46 W CPL. SEALING RING SHAFT WASHER MOTOR HOUSING SEALING GASKET WATER SEAL O-RING ROTOR 60 -2 BEARING 60 -3 BEARING STATOR WATER FLOW CHANNEL CDM 46 W MOTOR HOUSING MOTOR HOUSING...
- Page 24 97 -4 SEALING RING 2.0x16.7x21 1006315 CONNECTION WATER SCREWED CONNECTION CPL. SPACER BLOCK O-RING PAN HEAD SCREW 1006316 SERVICE-Kit CDM 46 W 1008486 SHAFT SEALING RING 1008487 SHAFT SEALING RING 1008488 SHAFT SEALING RING OD 50x7(h) 1008489 COMPRESSION BALL BEARING...
- Page 25 Item Item no. Designation Specification 1006317 SERVICE-Kit CDM 63 W 1008486 SHAFT SEALING RING 1008487 SHAFT SEALING RING 1008488 SHAFT SEALING RING OD 50x7(h) 1008489 COMPRESSION BALL BEARING 51106 1008490 NEEDLE BEARING 1008491 THRUST BEARING WASHER 1106 1008492 AXIAL NEEDLE BEARING 1106 1008493 NEEDLE BEARING...
- Page 26 SERVICE-KIT CDM 46 W - 400 V Stand: 21-01-2015 26/30...
- Page 27 SERVICE-KIT CDM 63 W - 400 V Stand: 21-01-2015 27/30...
- Page 28 GREEN/YELLOW 19.05.2015 CDM 20 U 230V CDM 20 W 63 W 28/30...
- Page 29 Translation of the original explanation of incomplete machine The LISSMAC core drill motor CDM 46 and CDM 63 can/may only be used with a LISSMAC core drill stand. The commissioning is not allowed until it is established that the core drilling motor and the core drill stand meet the intended use.
- Page 30 30/30...
