Eurostar MILANO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Cordless Telephone MILANO
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MILANO and is the answer not in the manual?

Questions and answers

Summary of Contents for Eurostar MILANO

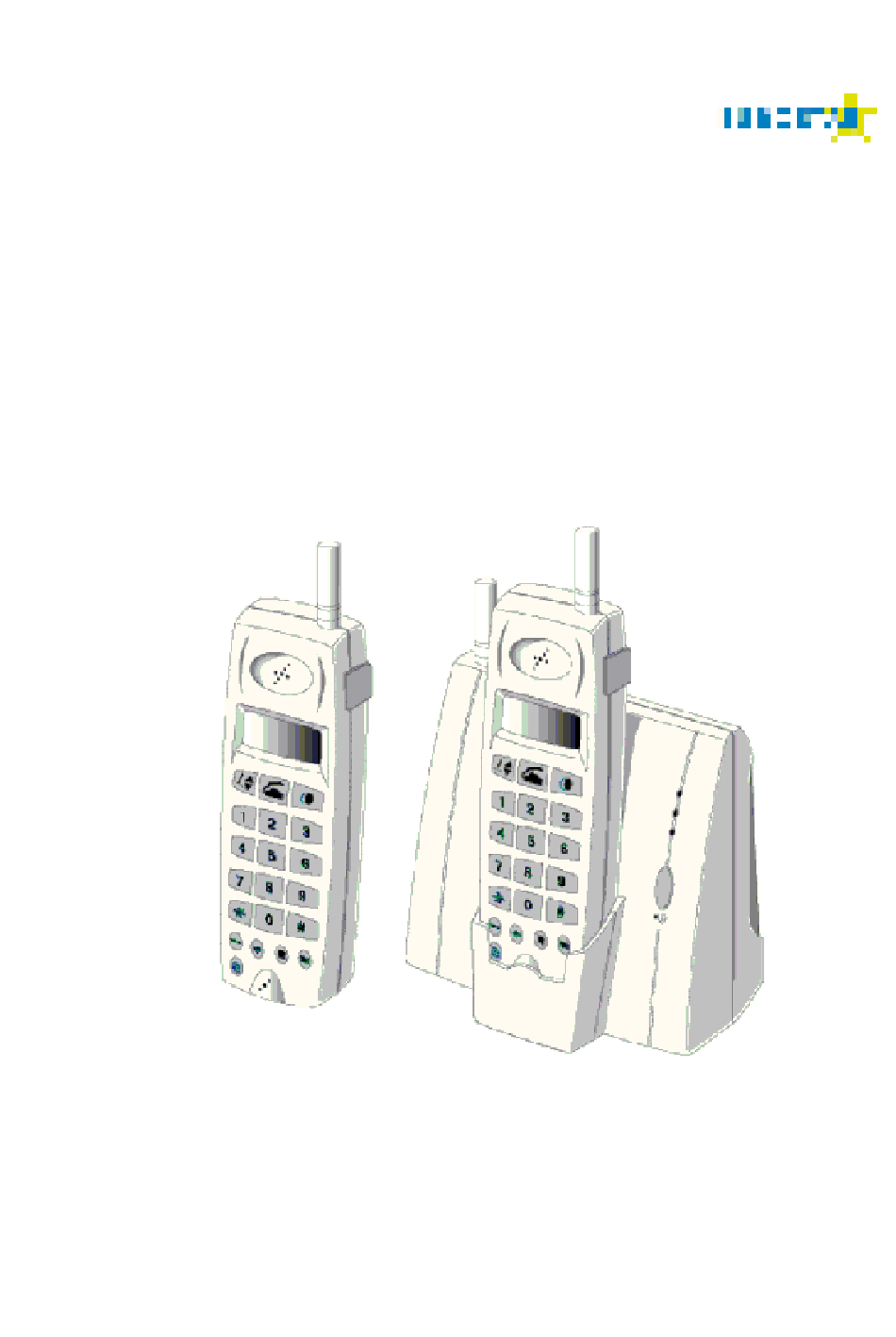

  • Page 1 Cordless Telephone MILANO User's Manual...
  • Page 2 Composition and Function of the Base and Handset ANTENNA SPEAKER ANTENNA VOLUME REDIAL/PAUSE /DISPLAY MODIFY KEY POWER INDICATOR /PROGRAM SELECT IN USE/RINING/ TALK/END KEY PAGING INDICATOR PROGRAM SEARCH CALL CHARGING INDICATOR TRANSFER TO MULTI-HANDSET PAGING KEY MEMORY KEY MUTE KEY/PROGRAM POWER KEY INTERRUPTION RECALL KEY...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Safety ..................1 Connection of the Base and the Handset ....... 3 2.1 Connection of the Base ............3 2.2 Turn on the Handset ..............4 Bringing the Phone into Service ..........5 3.1 Charging the Handset ...............5 3.2 Handset Power on/off ...............5 Placing and Answering Call .............

  • Page 4: Safety

    Safety Safety Please read this manual before use. Precaution Before using the phone, please read the operating instruction carefully. Take special care to follow the safety suggestions listed below. 1. Power Source : The phone should be connected to power source of 230V AC/50Hz through only the provided AC/DC adapter (DC 9V out- put).
  • Page 5 Safety For Best Performance 1. The phone should be placed away from personal computer, televisi- on, radio and fax machine. 2. If noise is high in conversation at the handset, approach the handset to the base to lessen the noise. 3.

  • Page 6: Connection Of The Base And The Handset

    Connection of the Base and the Handset Connection of the Base and the Handset 2.1 Connection of the Base 1. Insert the DC power plug into power socket (DC 9V) in the back of the base and insert AC/DC adapter to power outlet of 230V AC/50Hz. (Use only provided AC/DC adapter) 2.

  • Page 7: Turn On The Handset

    Connection of the Base and the Handset 2.2 Turn on the Handset 1. Please press the power on key " " or just place the handset on the cradle. Then handset number and voice volume level will be display- ed on the LCD. : Voice Volume Low : Voice Volume High 2.

  • Page 8: Bringing The Phone Into Service

    Bringing the Phone into Service Bringing the Phone into Service 3.1 Charging the Handset 1. Put the handset on the cradle for charging. 2. Charge the battery of the handset for 10 hours before initial use, and do it, if the battery low indicator " "...

  • Page 9: Placing And Answering Call

    Placing and Answering Call Placing and Answering Call 4.1 Placing Call Placing Call Make handset and base power on. Dial Pre-Dial 1. Make handset and base power on. 2. Dial or Dial For correction 4.2 Answering Call Auto Answer Used when handset is in charging stage. Answer can be automatically made by lifting the handset without any keying.

  • Page 10: Function Of Program Search Key

    Function of Program Search Key Function of Program Search Key Functions you can control with Program Search Key are as follows. Program Interruption The program process can be interrupted by pressing key " " while programming or not keying within 15 seconds. Keypad Lock / Unlock Lock Unlock...
  • Page 11 Function of Program Search Key Pause Auto-Insertion Function To store the dial number under PABX-System (Internal Key Phone Sy- stem), please follow the procedure as below: Set the Internal key number (0~9, off) For example when PABX internal key no. is "0". After setting the Pause Auto-Insertion, the phone makes a spot delay automatically after "0"...
  • Page 12 Function of Program Search Key Erasing or Changing the Stored Number Telephone No. Erasing or Max 20 digits Press the memory changing no. location no. Placing Call with the stored number in memory Notice: If you press key " " once, the firstly stored memory dial is dis- played on the LCD.
  • Page 13 Function of Program Search Key Talk Time Display Outgoing Call: 5 seconds after dialing /Incoming Call : 1 second after pressing key " ". Registering the Handset In case of multi handset(max. 3 sets) Put the handy on the base unit as charging mode Enter no.

  • Page 14: Wall Mounting And Battery Replacement

    Wall mounting and Battery Replacement Wall mounting and Battery Replacement 6.1 Installation Environment 1. Water and Moisture: Keep the phone away from water and moisture, for example, near a bathtub, washbowl, or the like. Damp basement should also be avoided. 2.

  • Page 15: Battery Replacement

    Wall mounting and Battery Replacement 3. Use the nail or screw for installation. 8 mm Abb. 6-2 screws’ height 6.3 Battery Replacement 1. Remove the battery cover. 2. Remove the battery. 3. Install the new battery. 4. Put the battery cover. Abb.

  • Page 16: Trouble Shooting Guide

    Trouble Shooting Guide Trouble Shooting Guide Tab. 1: Trouble shooting guide Problem Cause & Remedy 1. The phone does not work. The battery is needed to be charged. The AC/DC adapter is not plugged into power outlet. The connection of the phone is made impro- perly.
  • Page 17 ACHTUNG! WICHTIGE GARANTIEUNTERLAGE BITTE UNBEDINGT AUFBEWAHREN ! Lieber Kunde, wir freuen uns, dass Sie sich für eine Qualitätsprodukt der Marke ent- schieden haben. Sollte sich an Ihrem Gerät wider Erwarten ein techni- sches Problem ergeben, beachten Sie bitte folgende Punkte: •...
