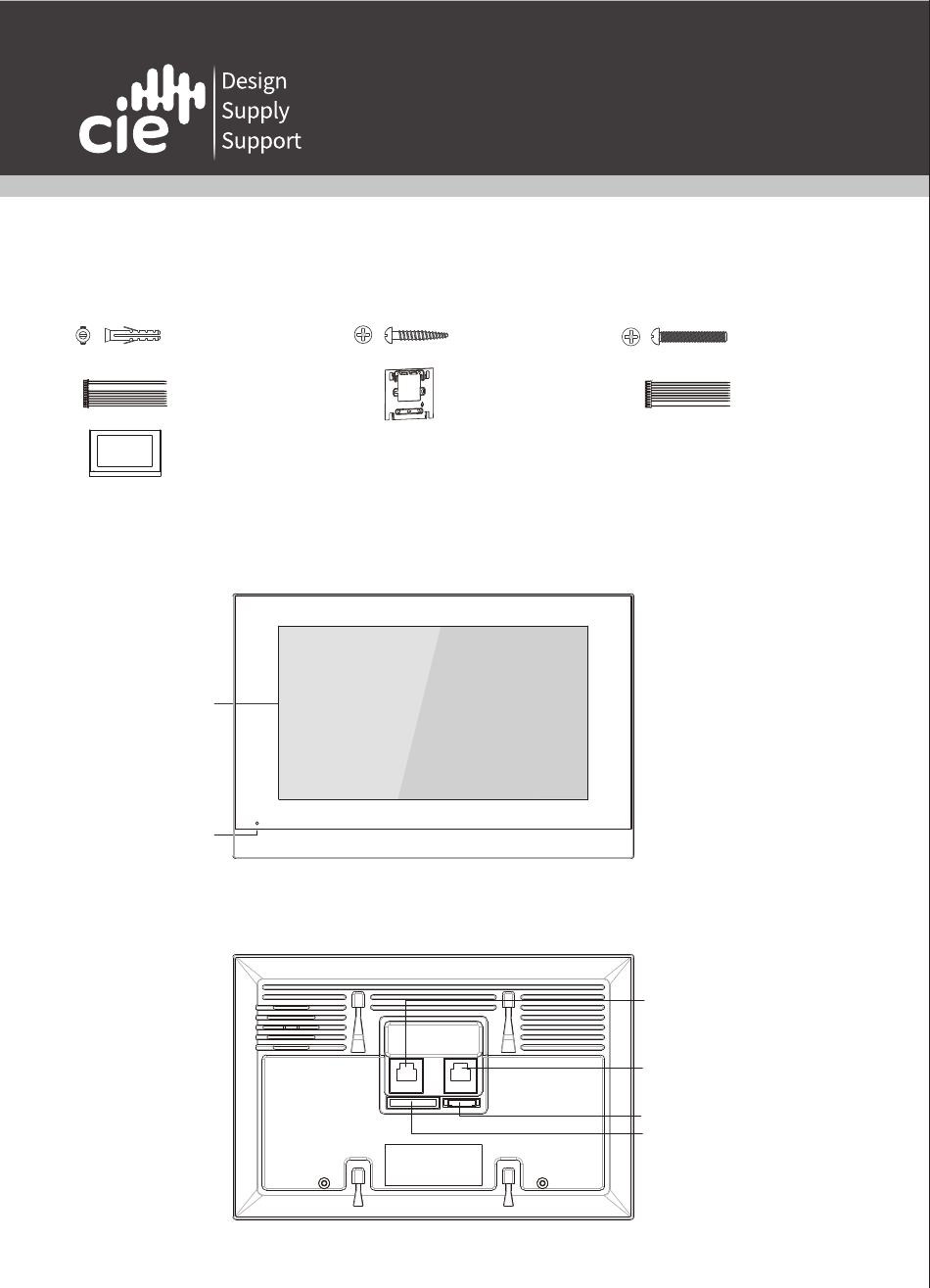

Unpacking

Please make sure the package contains the following items:
Screw fixing seat x 2
11 Pin cable x 1
C315X x 1

Product Overview

Front Panel

Touch Screen
MIC

Rear Panel

Loudspeaker
X7HD Quick Guide
ST4X20 screw x 2
Wall bracket x 1
X7HD
M4X30 screw x 2
10 Pin cable x 1
RJ45 Interface
Network Interface(Power in)
10 Pin Terminals
11 Pin Terminals
