Summary of Contents for SCHNERZINGER GIGA GUARD

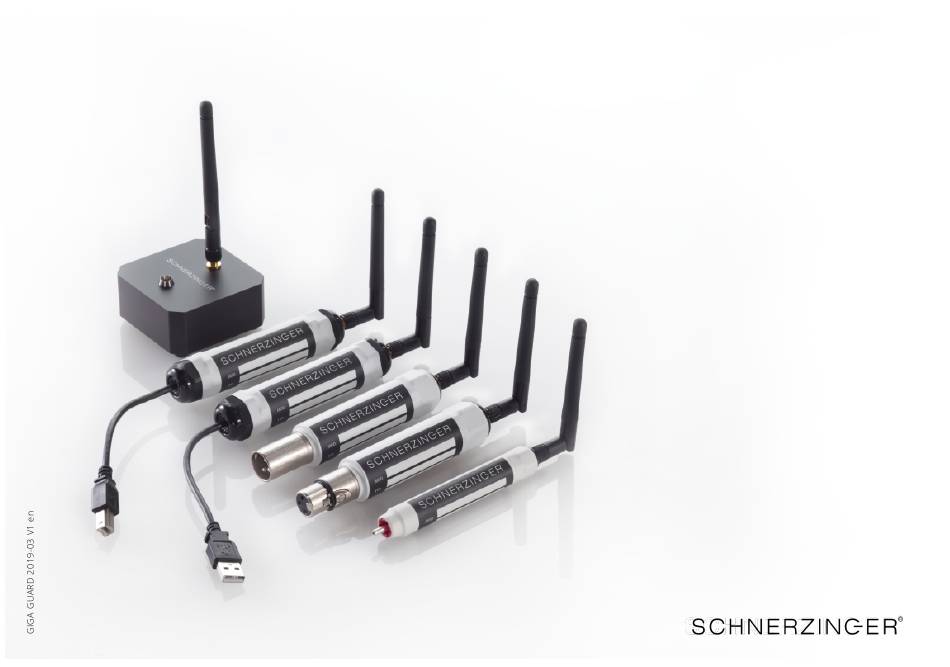

- Page 1 GIGA GUARD...
- Page 2 Setting up a SCHNERZINGER system In case of malfunctions contact your SCHNERZINGER dealer. Connecting the GIGA GUARD MASTER to the power grid Please do not attempt to service the device yourself or to open it, in that case you will lose your entitlement for our manufacturer Connecting the Hi-Fi Components warranty.
- Page 3 The PROTECTORS significantly enhance the transmission quality of audio systems. The sonic effects include an astonishingly higher spatial depth and resolution as well as increased broad and fine dynamics in music reproduction. Utilizing the operating principle and efficiency of the GIGA-PULSE technology, the SCHNERZINGER PROTECTORS represent a unique solution in the market.
- Page 4 EMI PROTECTOR, GIGA PICCOLO PROTECTOR, GIGA GUARD, GIGA PROTECTOR If you add your device to an already existing SCHNERZINGER chain, outstanding results will be obtained mostly when all devices will keep their former settings and just the additional product will be installed and configured as described in its manual.
- Page 5 The GIGA GUARD MASTER may be used without the 12V power supply. This supports a flexible placement of the unit. But in this case it should be connected to the grid with CONTROL UNIT and 12V power supply once a year for 15 minutes.
- Page 6 Connecting the Hi-Fi Components The GIGA GUARD MASTER may control several GIGA GUARDs. Hi-Fi Components are connected through the individual GIGA GUARDs. The particular Hi-Fi component should be switched off* during installation. Via the GIGA GUARD modules RCA, XLR/W, XLR/M,...
- Page 7 Setting up the GIGA PICCOLO PROTECTOR The GIGA GUARD MASTER has an additional GIGA-PULSE amplifier, allowing to optimally calibrate the unit to the respective interference field spectrum of the environment (e. g. WLAN, mobile communication, DECT, Bluetooth, radio waves and other interfering sources).
- Page 8 If the GIGA GUARD is switched off for a short time only, it still takes effect because of the buffering of the power supply unit. Disconnect the 12V power supply and the CONTROL UNIT from the power grid and the GIGA GUARD MASTER resp. Disconnect all GIGA GUARD units from the devices.
