Summary of Contents for Shakespeare Electronic 9000100

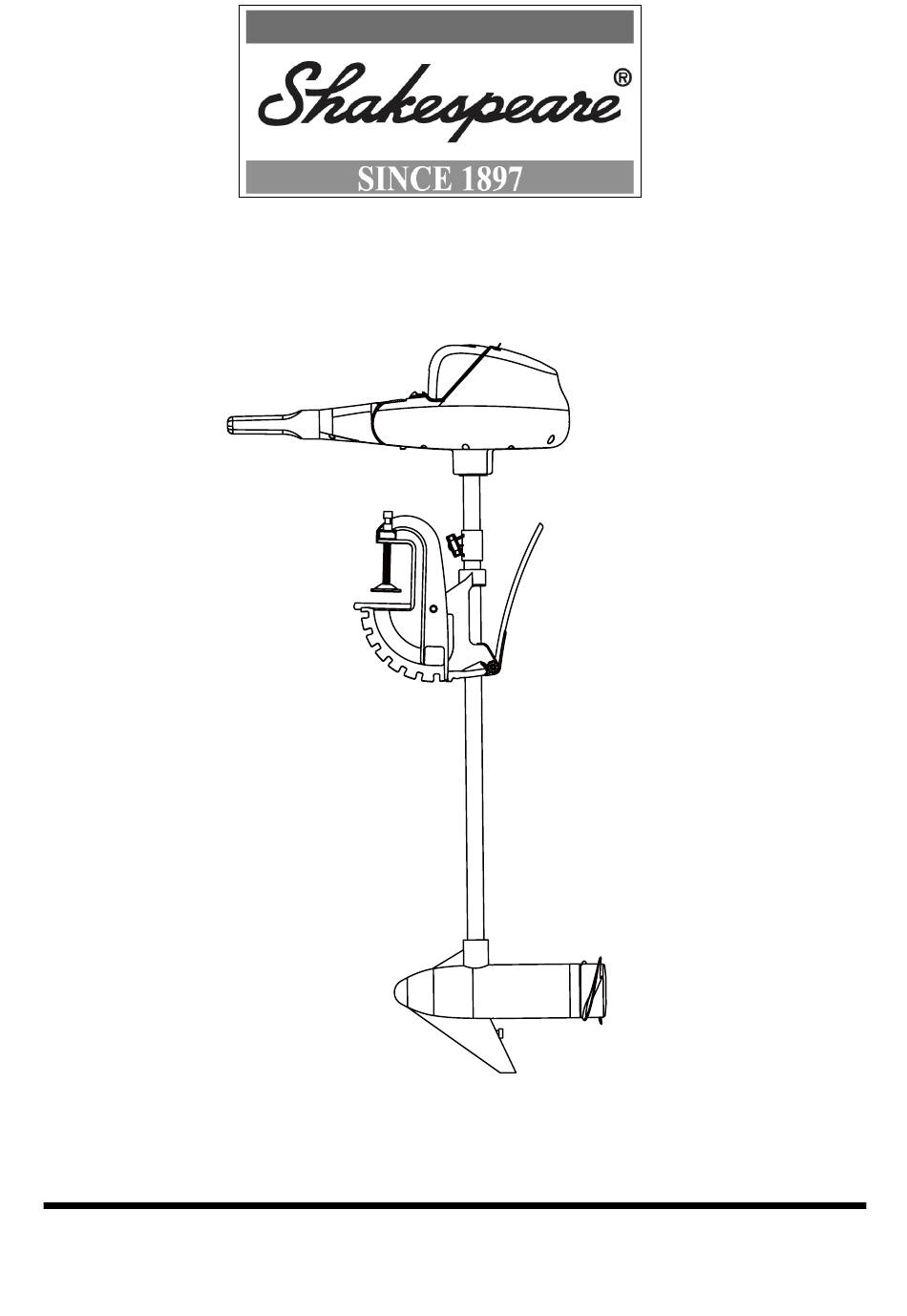

- Page 1 32 lbs TROLLING MOTOR MODEL: 9000100 Powered by Greenworks www.greenworkstools.com operator’s manual toll-Free HelplIne: 1 866 456-8934 Important: READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR NEW SHAKESPERE TROLLING MOTOR. RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
OPERATION..............................6 BATTERY & BATTERY CHARGER......................7-9 PROPELLER..............................10 MAINTENANCE..............................11 TROUBLESHOOTING........................... 12 WARRANTY..............................13 ExPLODED vIEW............................14 PARTS LIST..............................15 PRODUCT SPECIFICATIONS 9000100 (32 lbs) Motor................................40v Thrust.................................32lbs Prop speeds..........................200-1900 RPM Forward speed.............................5 speeds Reverse speed.............................3 speeds Composite shaft............................36" Weight..............................23.3lbs NOTE: To be used with Greenworks Lithium-Ion Battery(Model# 29662). -
Page 3: Functions
FUNCTIONS Battery compartment Tilt/Twist tiller handle Clamping knobs Shaft tilt release lever Boat mounting bracket Adjustable shaft Depth collar knob Steering tension knob Propeller 40V DC Motor... -
Page 4: Adjustments
ADJUSTMENTS MOUNTING THE MOTOR: Install the motor on the transom of the boat. Be sure to tighten the clamp screws securely. Tighten Loosen DEPTH ADJUSTMENT: 1. Firmly grasp the shaft and hold it steady. 2. Loosen the steering tension knob and depth collar knob until the shaft slides freely. 3. - Page 5 ADJUSTMENTS Shaft depth adjustment collar Tiller speed control Clamping knobs Shaft tilt release lever WARNING: WHEN MAKING ANY ADJUSTMENTS TO MOTOR OR PROPELLER THE BATTERY MUST BE REMOvED FROM THE TROLLING MOTOR.
-
Page 6: Operation
OPERATION TWIST TILLER: • These motors offer a choice of five forward and three reverse speeds. • The speed control may be operated in either direction, forward or reverse. Turn the tilt twist tiller handle counterclockwise from O (off) to increase reverse speed and clockwise from O (off) to increase forward speed. - Page 7 BATTERY To install the battery • Push the lock button, open the compartment cover. • Slide the battery down to lock it into position. The battery is fully inserted into the trolling motor when you hear an audible “click”. • Close the cover until it clicks into place. To remove the battery • Turn the speed control to O(off) position.
-
Page 8: Battery & Battery Charger
BATTERY CHARGER CHARGING PROCEDURE NOTE : T h e battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time. 1. Plug the charger into an AC power outlet. 2. Insert the battery pack (1) into the charger (2). This is a diagnostic charger. The Charger LED Lights (3) will illuminate in specific order to communicate the current battery status. - Page 9 BATTERY CHARGER Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below: BATTERY CAPACITY LIGHT INDICATORS INDICATOR (BCI) BUTTON BATTERY CAPACITY Lights Capacity 4 Green Lights The battery is at full capacity 3 Green Lights The battery is at 75% capacity 2 Green Lights...
-
Page 10: Propeller
PROPELLER WASHER SLOT END PROP NUT DRIvE PIN WEEDLESS PROPELLER WARNING: DISCONNECT THE BATTERY FROM THE TROLLING MOTOR BEFORE BEGINNING ANY PROP WORK OR MAINTENANCE. PROPELLER REPLACEMENT: 1. Using a cloth or glove, hold the propeller and loosen the prop nut with a (1/2") socket. 2. -
Page 11: Maintenance
MAINTENANCE 1. The propeller must be cleaned of weeds and fishing line. Line can get behind the prop, wear away the seals and allow water to enter the motor. Disconnect battery and check this after each use. 2. To prevent accidental damage during trailering or storage, disconnect the battery whenever the motor is out of the water. -
Page 12: Troubleshooting
TROUBLESHOOTING 1. MOTOR DOES NOT RUN OR LACKS POWER: ■ The battery is not charged - Charge the battery ■ The battery is not connected to the trolling motor - Check the connection between the trolling motor and the battery ■... -
Page 13: Warranty
LIMITED WARRANTY 2 —Year Limited Warranty THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COvER: Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as rental equipment. Delivery, installation or normal adjustments explained in the owner’s manual. Damage or liability caused by shipping, improper handling, improper installation, incorrect voltage or improper wiring, improper maintenance, improper modification, or the use of accessories and /or attachments not specifically recommended. -
Page 14: Exploded View
PART LIST... - Page 15 PART LIST ITEM NO. PART NO. DESCRIPTION 33310192 Screw 33902192 Sacrificial anode 361011581 Motor 32202192 34108192 Propeller 32203192 Washer 32205192 Screw 3220537 Screw 32210193 341011581 Sleeve 31106192 Knob 34106192 Locating ring 32207192 Screw 31101192 Clamp/pivot assembly 31111192 Knob 33102192 Metal lock insert 3220505 Screw 34102197AB...
