Summary of Contents for Wilo Wilo-Smart
- Page 1 Pioneering for You Wilo-Smart Gateway Installation and operating instructions 2209950 • Ed.02/2020-09...

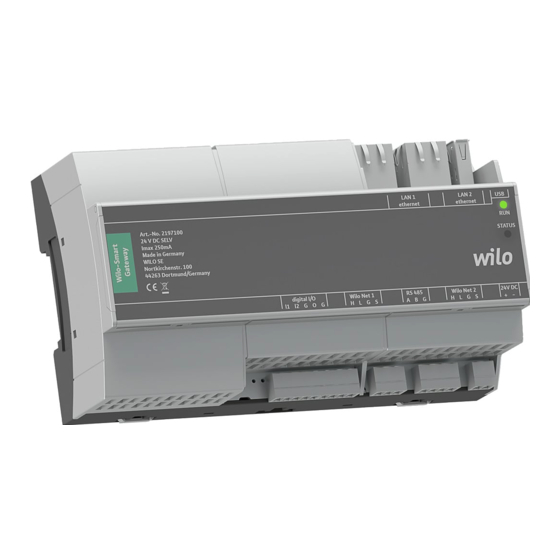

- Page 3 STATUS Imax 250mA Made in Germany WILO SE Wilopark 1 44263 Dortmund/Germany digital I/O Wilo Net 1 RS 485 Wilo Net 2 24V DC l1 l2 G O G L H G S A B G L H G S Fig.
- Page 4 Made in Germany WILO SE Wilopark 1 44263 Dortmund/Germany RS 485 24V DC digital I/O Wilo Net 1 Wilo Net 2 l1 l2 G O G L H G S A B G L H G S Fig. 5: LAN 1...
-
Page 5: Table Of Contents
Electrical connection .......................... 14 Commissioning ............................ 17 Maintenance ............................... 19 10 Faults, causes, remedies.......................... 19 11 Spare parts .............................. 20 12 Disposal ............................... 20 12.1 Information on the collection of used electrical and electronic products........ 20 Installation and operating instructions Wilo-Smart Gateway... - Page 6 13 Appendix .............................. 21 WILO SE 2020-09...
-
Page 7: General Information
The language of the original operating instructions is German. All other languages of these instructions are translations of the original operating instructions. More information More information on Wilo-Smart Gateway can be found at www.wilo.com/automa- tion. Safety These operating instructions contain basic information which must be adhered to during installation and operation. -
Page 8: Personnel Qualifications
Damage to the environment due to leakage of hazardous materials ƒ Damage to property ƒ Failure of important product/unit functions ƒ Failure of required maintenance and repair procedures Operator responsibilities ƒ Provide installation and operating instructions in a language which the personnel can understand. WILO SE 2020-09... -
Page 9: Safety Instructions For Inspection And Installation Work
ƒ Only carry out modifications to the product following consultation with the man- ufacturer. ƒ Only use original spare parts and accessories authorised by the manufacturer. Installation and operating instructions Wilo-Smart Gateway... -
Page 10: Improper Use
For environmental conditions for storage and operation, please refer to the “Technical data” section! Intended use The Wilo-Smart Gateway is a communication device. It establishes a communication link between Wilo products with the Wilo-Smart Cloud. Product information Type key... -
Page 11: Scope Of Delivery
Ready for connection communication device with DIN 43880 compliant housing for installation in standard electrical installation distributor boxes. Function The Wilo-Smart Gateway records and transmits configuration parameters and process values from connected pumps or systems. In this way, the corresponding devices are Installation and operating instructions Wilo-Smart Gateway... -
Page 12: User Interface/Operation
Wilo-Smart connect (part of the Wilo-Assistant app). With the Wilo-Smart connect function, data from a pump connected to a Gateway to the mobile device (and vice versa) is processed as follows: ƒ... -
Page 13: Installation
The Wilo-Smart Gateway is an installation device. • To ensure sufficient protection against unpermitted touching of live parts, cover the terminal area after installation and electrical connection. To this end, install the Wilo-Smart Gateway in a switch cabinet or distributor box. WARNING Personal injury! •... -
Page 14: Electrical Connection
NOTICE A separate power supply unit with the respective output power is required for the power supply of the Wilo-Smart Gateway with 24 V DC SELV. 7.2.1 Connecting the power supply Strip 5 – 6 mm off the power supply’s wire ends from the power supply unit. - Page 15 The function and support of the Digital I/O, Modbus and USB interfaces depends on the software version being used. 7.2.3 Connecting the pumps to the Wilo Net interface Wilo Net is a Wilo system bus used for establishing communication between Wilo products: ƒ Two single pumps as twin-head pump function ƒ...
- Page 16 All bus subscribers must be assigned an individual address (Wilo Net ID). Please be aware that twin-head pumps in the Wilo Net consist of two participants, both of which must be adjusted accordingly in the Wilo Net settings. This Wilo Net ID is set in the respective participant.
-
Page 17: Commissioning
7.2.4 Gateway connection to the Internet For the Wilo-Smart Gateway to reach the Wilo-Smart Cloud, the Gateway must be able to connect to the Internet via the LAN 2 connection. To do this, connect the LAN 2 connection with an Ethernet patch cable (with RJ45 plugs) to an Ethernet connection where the Internet can be accessed. - Page 18 Enter “http://192.168.10.1” in the address line of the web browser in order to reach the web interface. Fig. 1: Web browser The Wilo-Smart Gateway status page can be viewed by anyone at any time, but the configuration pages require a login. When in the delivery state, the login details are: ƒ...
-
Page 19: Maintenance
Bluetooth connection, this step is already completed. During further commissioning, the operator takes over remote access to the Gateway via the Wilo-Smart Cloud. This provides the user with access to the data from the connected products. However, the Gateway must first be connected to a Wilo-Smart connect user (MyWilo account) in the app for this. -
Page 20: Spare Parts
If the malfunction cannot be rectified, consult a specialist technician or the nearest Wilo customer service or representative location. Spare parts Spare parts may be ordered via a local installer and/or Wilo customer service. To avoid queries and incorrect orders, all data from the rating plate must be specified with every order. - Page 21 GPL/LGPL software components used can be sent on a data carrier by post. Contact via e-mail (to wilo@wilo.com), telephone (call number +49 231 4102-0) or by post. This offer is valid for a period of three years after the final delivery of the product.
- Page 22 Nous, fabricant, déclarons sous notre seule responsabilité que les produits de la série, (The serial number is marked on the product site plate / Die Seriennummer ist auf dem Gateway WILO Typenschild des Produktes angegeben / Le numéro de série est inscrit sur la plaque signalétique du produit)
- Page 23 ES/EK ATBILST BAS DEKLAR CIJU DIKJARAZZJONI TA’ KONFORMITÀ UE/KE WILO SEdeklar , ka izstr d jumi, kas ir nosaukti šaj deklar cij , atbilst šeit WILO SE jiddikjara li l-prodotti spe ifikati f’din id-dikjarazzjoni huma konformi uzskait to Eiropas direkt vu nosac jumiem, k ar atseviš u valstu likumiem,...
- Page 24 WILO SE estne prehlasuje, že výrobky ktoré sú predmetom tejto deklarácie, sú v súlade s požiadavkami nasledujúcich európskych direktív a WILO SE izjavlja, da so izdelki, navedeni v tej izjavi, v skladu z dolo ili odpovedajúcich národných legislatívnych predpisov: naslednjih evropskih direktiv in z nacionalnimi zakonodajami, ki jih vsebujejo: Elektromagnetickú...
- Page 28 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
