MetroPWR FXMASTER Quick Start Manual

Download this manual

INTRODUCTION

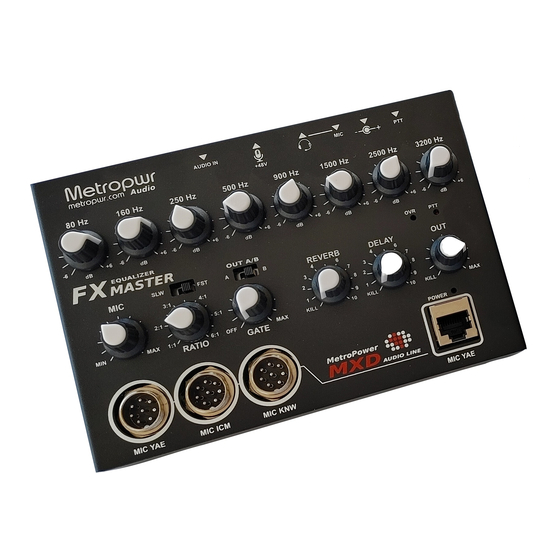

FXMASTER is an 8 band equalizer with adjustable noise gate, reverb. This device has the ability to interface any

type of studio microphone from different brands and switch it to 2 radios. The high audio quality allows you to

transform even new/old radios to make hifi ssb. The audio can be perfectly amplified and equalized to adapt it to

any type of microphone. It handles dynamic studio condenser microphones or ICOM, YAESU, KENWOOD, and o-

ther commercial microphones. All microphones can be connected directly without having to make new connec-

tions or adapters. FXMASTER has an internal switch to be able to use 2 radios at the same time. A led allows to

indicate an overflow of the bf signal. It has two XLR studio microphone jack inputs. Through a standard jack / XLR

cable it is possible to connect dynamic and condenser studio microphones with phantom power. The +48V phan-

thom voltage is generated by an internal card that can be purchased as an option.

MODEL

RELEASE

FIRMWARE

www.metropwr.com

Need help?

Do you have a question about the FXMASTER and is the answer not in the manual?

Page 1 All microphones can be connected directly without having to make new connec- tions or adapters. FXMASTER has an internal switch to be able to use 2 radios at the same time. A led allows to indicate an overflow of the bf signal. It has two XLR studio microphone jack inputs. Through a standard jack / XLR cable it is possible to connect dynamic and condenser studio microphones with phantom power.
Page 2 Hazardous situations to be avoided in order to prevent all risks that are shown above. Never use the FXMASTER inappropriately, but only as directed in the user. The Manufacturer reserves the right to update the technical data contained in this manual without notice.
Page 3 Otherwise all 8 wires but only the RADIO/A output has MIC GND support for mic up/down commands. * FXMASTER Includes RJ45/RJ45 cable for Yaesu radio FTDX10, FT991A, FT857/859, FT891, and compatible + 8 PIN CONNECTOR to be soldered. RJ45 / 8PIN CABLE DIAGRAM...
