Cyfre CA819 Installation Manual

CA819
Dual Band Amplifier Installation Manual
Note: Before installing the Cyfre

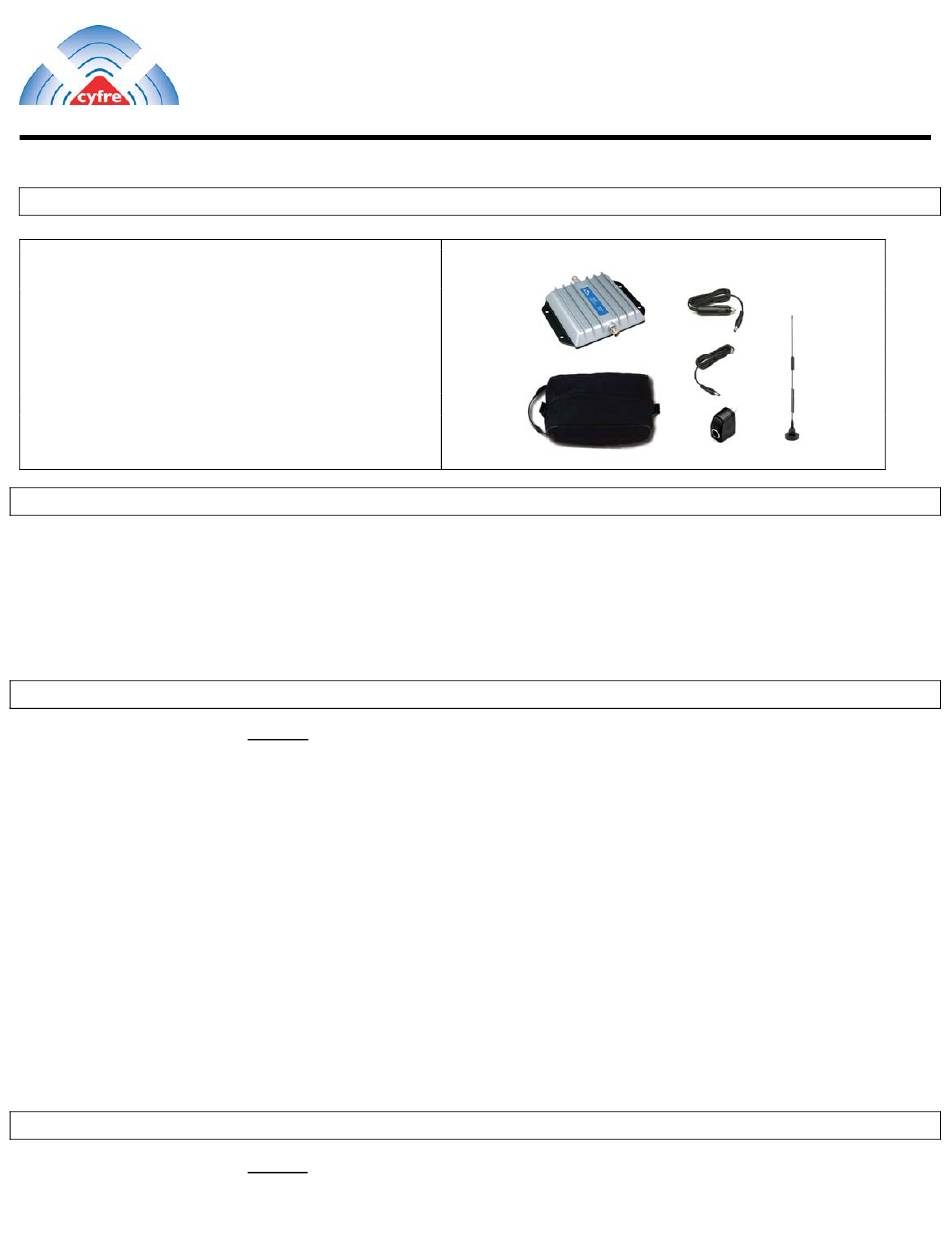

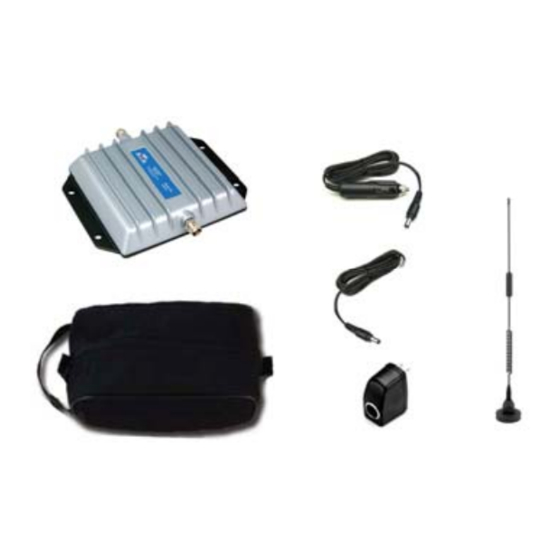

Item Qty Description
™
1 1 Cyfre Amplifier
2 1 Cyfre™ External Magnetic Mount Antenna with
10ft low loss cable
3 1 Nylon Ballistic Bag
4 1 Cyfre™ 12 Volt Cigarette Power Adapter
5 1 Cyfre™ 4ft Hardwire Power Cable
6 1 Cyfre™ AC/DC Adapter
Item Description
1 Electric drill (as required for signal amplifier mounting holes)
2 Screw driver
3 Qty 4 screws (length and type as required for signal amplifier mounting)
4 Wire cutters / strippers
5 Qty 2 wire connection insulators or insulating material (as required for DC power cable connection to 12V DC system)
∇
Antenna must be mounted a MINIMUM distance of 50 cm (1.64ft) away from any person.
∇
An external antenna must be mounted outside the vehicle, if mounting an external antenna on the exterior portion of the outside glass a minimum
of 3 feet of separation is needed. Failure to do so may result in amplifier failure will void your warranty.
∇
UNDER NO CIRCUMSTANCES CAN AN EXTERIOR ANTENNA BE INSTALLED INSIDE A VEHICLE. Doing so will result in amplifier
failure will void your warranty.
∇
The power supply must be plugged into a 12 Volt outlet that is connected to the fuse box of your vehicle and have a minimum of 3 amp
fuse.
∇ Under no circumstances should you power up your amplifier without first properly connecting a 50 ohm 800/ 1900 MHz
dual band cellular antenna to both the internal and external antenna connectors. Failure to properly connecting the
antennas may result in amplifier failure will void your warranty.
∇ For optimum performance and compatibility with your service provider requirements, it is recommended that the
external antenna be installed on the exterior metal roof of your vehicle.
∇ Use of cellular amplifiers with antennas of higher gain than 6dBi gain is in violation of FCC regulations for
which the offender will be fully liable, and void your warranty.
∇
Do not combine the external or interior antenna cable with other coaxial cables. The additional loss of the cable length and connectors
could greatly diminish the performance of the amplifier.
***It is recommended that only qualified or informed installation technicians install this product permanently to a vehicle.
Installation by any other person is at the risk of the owner and operator.
It is recommended that only certified automotive installation technicians install this product in a vehicle. Installation by any other
person is at the risk of the vehicle owner and operator.
Section # 4 Installation: Selecting a Suitable Location to Mount the Signal Amplifier
∇
Antenna must be mounted a minimum distance of 50 cm (1.64ft) away from any person(s).
All brands and trademarks are the property of their respective owners.
Copyright 2007, Janizary Holdings, Inc. All rights reserved.
Rev F D00000415
Section # 1 Parts List
Section # 2 Tools and Other Materials Required
Section # 3 WARNINGS!
Amplifier, please read the entire contents.
™
Page 1 of 2
Designed and manufactured in North America
Manufactured under license from Motorola Inc.
