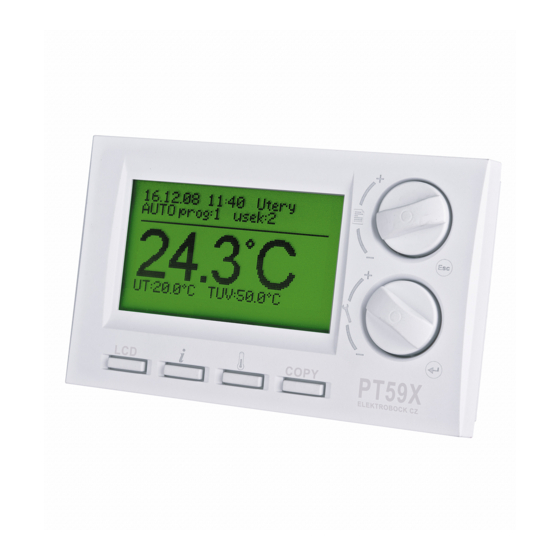

Thermona PT59X Quick Start Manual

Room thermostat with the option to regulate domestic hot
water (DHW) and remote control by mobile telephone for
boilers with OpenTherm communication
7

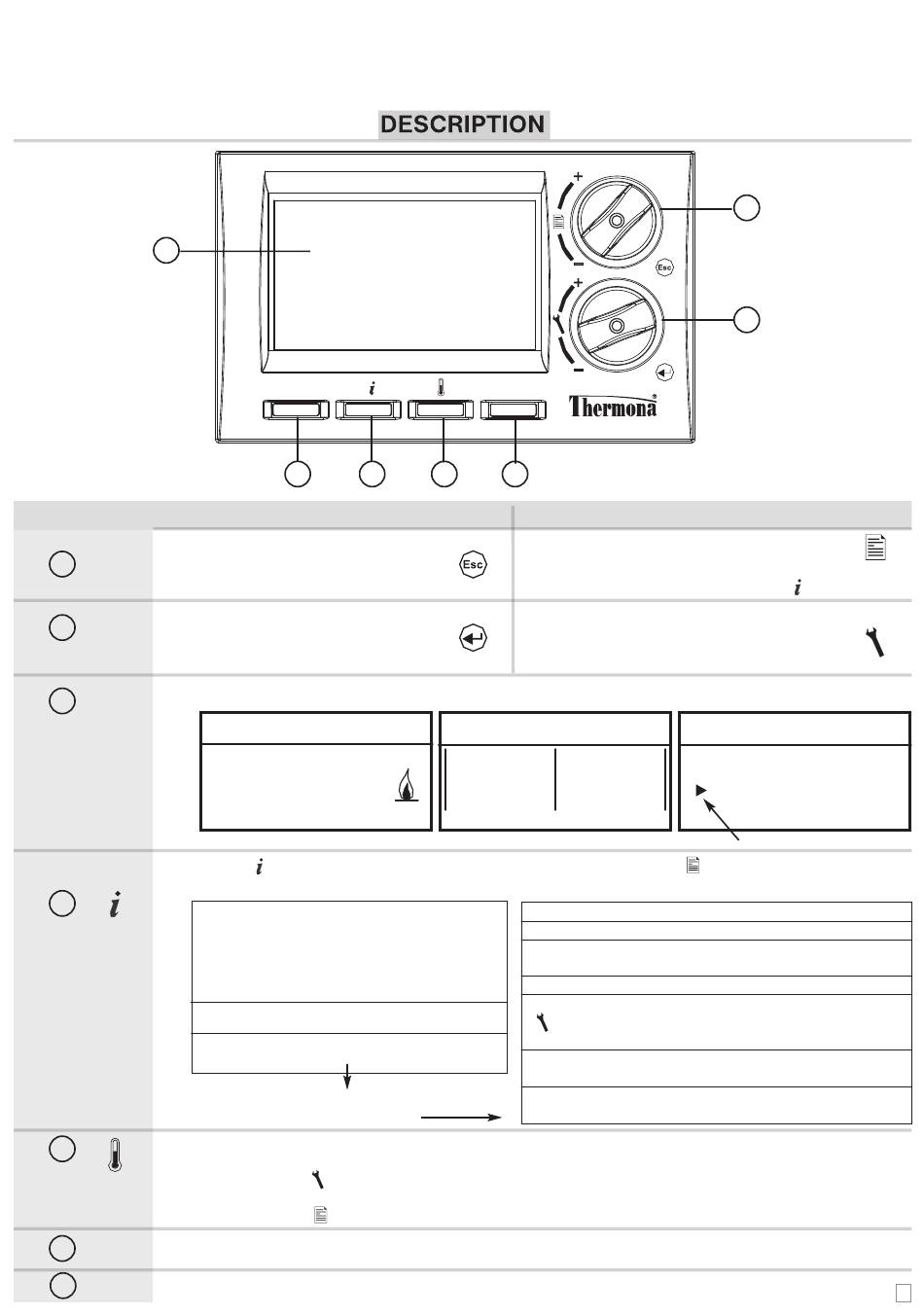

Control elements
- opening the main menu
1
- ESC(escape)=return one step back
- ENTER= acknowledgement= typing changes
2
- quick change of the requested temp.
3
LCD
4
5
6
COPY
7
LCD
3 4
Button function - PRESSING
(short-term in the mode "Auto",
permanent in the "Manual" mode)
- Press the button "LCD" to select the appearance of the introductory display of information on the display
A)
01.01.13 21:45 Thuesday
AUTO prog:1 per.:1
°
22.4 C
IN:19.0°C DHW:50.0°C
On the last line is further information, for example, the outside temperature
- press " " for view following information
(about the heating system, the supply of hot service water, servicing, the outside temperature etc.)
Required CH= calculated central heating according
to he selected equitherm curve, according to the
weather) irrespective of min. and max, potential temper-
ature of CH, the data in brackets is the requested temp.
with respect to the adjusted min. and max. CH temper-
ature (see pages 6, 7 – constants No. 6 and 7)
Actual CH = actual temperature of heating water
Modulation = modulation output of the boiler in %
Flow= information about the flow of DHW in litres per
minute for boiler СХ and ТСХ
- Press the button to open the browse menu and the change the actual requested room temperature and the
automatic or manual mode
Turn the button " " to change the actual value of the requested temperature (in automatic mode up to the
further time section) or select another programme.
Turn the button " " to switch between the temperature and the programme
- serves for fast copy of days in the " Setting program" mode
- entrance/leaving into/from the service mode, press the button during about 5 s in the introductory display.
- Display backlight (after pressing any button the display is automatically backlit for about 2 s.)
DESCRIPTION
COPY
5 6
Button function - TURNING
- browse through the main menu (view)
- browse in the "Parameters" mode
- in the "Setting program" browse between time intervals
- browse (view) information by pressing " "
- change in the adjusted value
B)
01.01.13 21:45
AUTO prog:1
actual
UT
IN: 22.4°C
UT: 42.0°C
OUT: 8.0°C
OT+ Temp. DHW: 57°C
---------->>>>> by TURNING "
Required temp. DHW= required DHW temperature
Operating hours CH and DHW= reset by "LCD"button
Temp. measured= statistics value, reset by "LCD"button
Works boiler inspector= service telephone (see page 5)
Required temp. in AUTO/MANU mode= change by
" ", short-term in "Auto", permanent in "Manual" mode
Outdoor temp.= temperature on the outside temperature
sensor connected to the boiler
Required temp. in premature switching mode=
constant No. 3
PT59X
C)
Thuesday 01.01.13
per.:1 AUTO
Actual temp.
required
IN: 19.0°C
required IN
CH: 0.0°C
required DHW
DHW: 50.0°C
OT+ Temp. DHW: 57°C
" button next information
1
2
21:45 Thuesday
prog:1 per.:1
: 22.5°C
: 19.0°C
: 50.0°C
outdoor: 8.0°C
OT+
sign for heating on
1
