INSTRUCTION MANUAL

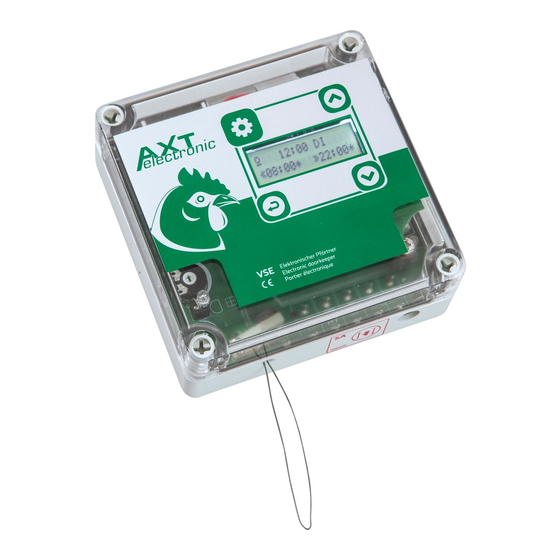

Electronic Doorkeeper VSE
Thank you for purchasing the Electronic
Doorkeeper VSE.
Please note the general information on
the back of this sheet and the safety
instructions in the manual.
AXT-electronic GmbH & Co. KG
Wartburgstrasse 10
99817 Eisenach / GERMANY
Phone: 0049 3691 721070
service@axt-electronic.de
www.axt-electronic.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AXT ELECTRONIC VSE
Summary of Contents for AXT ELECTRONIC VSE
- Page 1 INSTRUCTION MANUAL Electronic Doorkeeper VSE Thank you for purchasing the Electronic Doorkeeper VSE. Please note the general information on the back of this sheet and the safety instructions in the manual. AXT-electronic GmbH & Co. KG Wartburgstrasse 10 99817 Eisenach / GERMANY Phone: 0049 3691 721070 service@axt-electronic.de...
-
Page 2: Start Of Operation
200 gr. And a maximum of 3.0 kg. The maximum stroke of the pulling cord is 70 cm. To prevent the door from freezing in winter, coat the rails with a small amount of lubricant. Neither the cord nor the inside of the Doorkeeper VSE is to be exposed to lubricants or directly lubricated. When installation is not directly possible or desired above the door, please observe the separate information on our website. -
Page 3: Optional Accessories
LED-Indicators Device in Closed Mode (1x green) Light flashes when the Doorkeeper VSE has received the signal to close the door and the internal limit switches confirm that no further weight is pulling on the device. Therefore, the door should now be closed. Please check the door regularly for smooth running to pre- vent it from getting stuck when closing. -
Page 4: Menu Operation
The display shows the current status of the Doorkee- per VSE. Following this, the settings for the entire week will be briefly displayed in order to check the values. The display deactivates automatically. Overview menu navigation... -
Page 5: Error Analysis
The sensor simply has to be plugged into the screw terminal (the right way round). The operation mode for this time of day The VSE only reacts to light/dark at this time of day if the operating mode also contains the does not contain „LUX“. - Page 6 Battery Change The VSE shows you in the display or via the LED the necessity of a battery change. To change the battery, the timer module must be removed. To do this, loosen ONLY the left fastening screw of the module and carefully pull the module upwards on the right side. If necessary, remove the brown transport lock over the batteries (this does not necessarily have to be reinstalled later).
- Page 7 Electronic Doorkeeper VSE First steps and basic settings in the menu navigation AXT-electronic GmbH & Co. KG Wartburgstraße 10 . 99817 Eisenach / GERMANY Phone: 0049 3691 721070 service@axt-electronic.de . www.axt-electronic.eu...
-
Page 8: Basic Settings
Settings at 1. Start – Basic Settings activate the Menu (= hold Magnet for 3sec. at “OK/Menu”) Sprache 1. Menu-Item = „ “ > „Language“ you need to change it to english Go into the menu-item with “OK” With "down" set language to "2. English" Confirm the setting with "OK The setting of the time-of-day follows directly... - Page 9 b) Change language from English to French activate the Menu (= hold Magnet for 3sec. at “OK/Menu”) Use „down“ 3times to go to the menu-item „Language“ Go into the menu-item with “OK” With „down“ 1time change the language from „2. English“ to „3. Francais“ The language is saved and can be used immediately in the whole menu.
- Page 10 e) Set a different opening time for opening on weekends (e.g. SA-SU 9 o'clock, LUX AND TIME) activate the Menu (= hold Magnet for 3sec. at “OK/Menu”) With „down“ 1time choose menu-item „Opening Mode“ Go into the menu-item with „OK“. Use up / down to select the "LUX AND TIME"...
