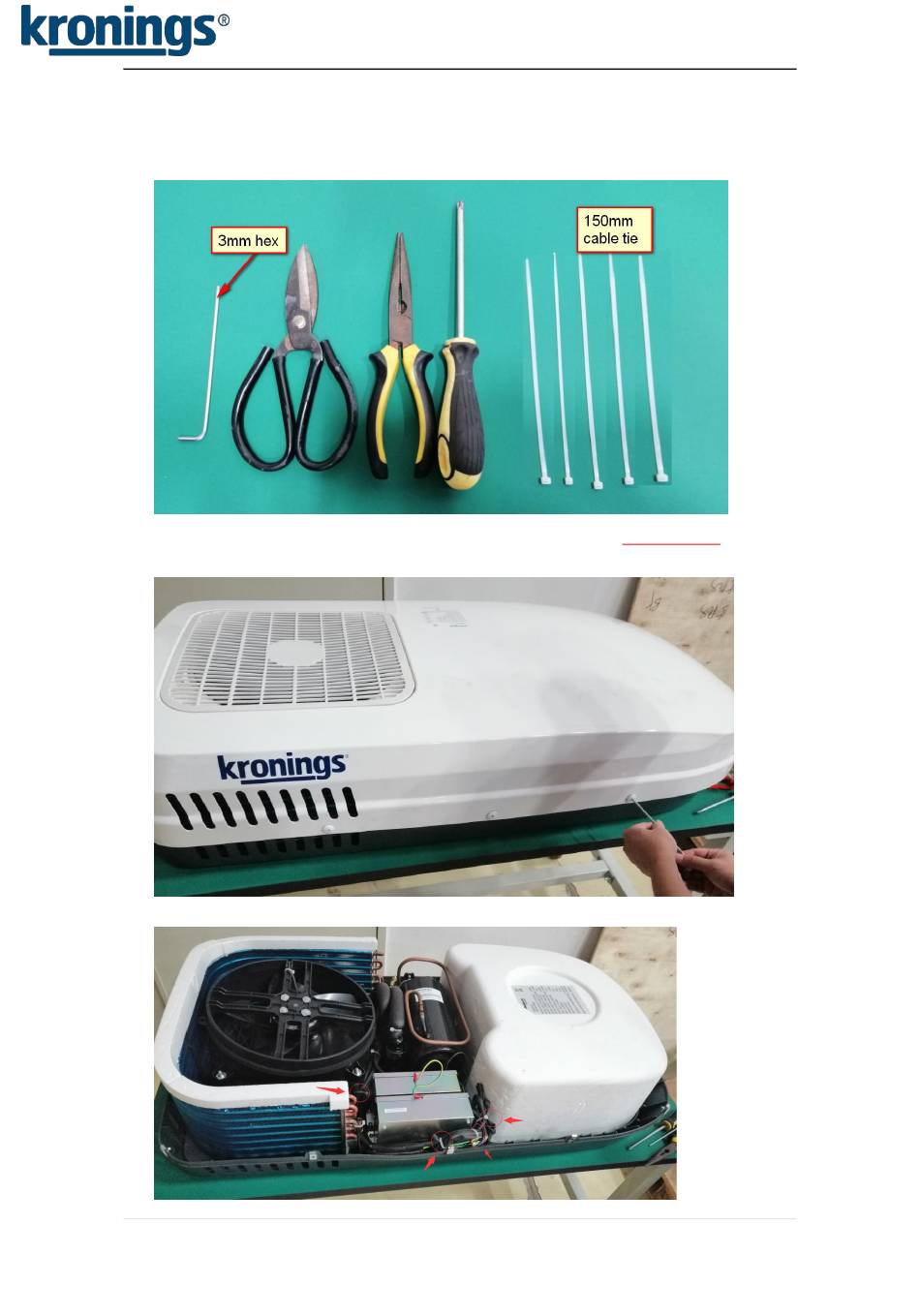

How to change controller board inside for K2400/A2000
1. Prepare tools and cable strip
2. Cut off the power for AC, make sure no electricity supply to the unit. IMPORTANT.
3. Use hex spanner to screw out the bolts on cover
4. Cut the cable ties. Do it carefully, do not cut the cable. (Video 1)
1 |
P a g e
Advertisement
Related Manuals for kronings K2400
Summary of Contents for kronings K2400
- Page 1 How to change controller board inside for K2400/A2000 1. Prepare tools and cable strip 2. Cut off the power for AC, make sure no electricity supply to the unit. IMPORTANT. 3. Use hex spanner to screw out the bolts on cover 4.
- Page 2 5. Disassemble the controller box, by screwing out the fixation screws using a screw driver. P a g e...
- Page 3 6. Take the control box out and disassemble the cover. 7. Pull the cable terminal off from the controller box. Some terminal maybe tight, try to use the clamper to hold it. Do not pull the cable itself, otherwise it can be damaged. Notice: There is a diagram on the inside of lid for cable connection.
- Page 4 8. Squeeze the plastic holder on back, and take the controller board out. (Video 3) P a g e...
- Page 5 9. Put a new controller board back into the box, and connect the cables back onto the controller. (Video 4 and Video 5) P a g e...
- Page 6 10. Put the lid on, put all the screws back and tie the cables again. (Video 6) 11. Try to active the power for AC and run the AC to check the function. 12. Put the AC cover on and screw in the bolts. P a g e...
