Summary of Contents for ISAN MINI PW
- Page 1 MINI PW CONTROLLER (Power version) INSTALLATION, OPERATING AND USER MANUAL IMPORTANT Prior to installing and using the controller, please carefully read this manual and keep it for future reference...
- Page 2 MINI PW CONTROLLER (Power version) The electric towel dryer controller is designed for drying water-washed clothing. Any other use is prohibited. Always make sure that the master switch is off before proceeding with installation or maintenance. Do not use the towel dryer prior to its proper and complete installation by a qualified electrician and hot-water heating technician.
- Page 3 MINI PW CONTROLLER (Power version) INSTALLATION Do not install the towel dryer with the controller on top. Do not install the towel dryer below or in front of a socket outlet or terminal box. The controller must not come in contact with the wall or floor when installed.
- Page 4 MINI PW CONTROLLER (Power version) The electronic controller cannot be installed in other than 230 V systems. Observe the following colour code for plugless appliances: CONDUCTOR CONNECTION POINT COLOUR Brown Phase conductor Blue Neutral conductor Yellow-green Protective conductor (Class I) ...

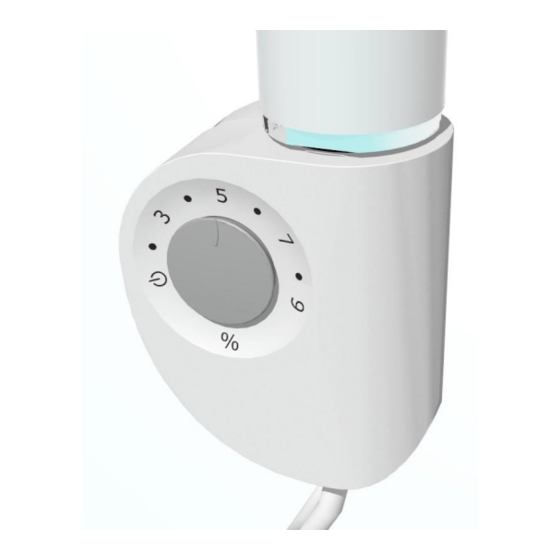

- Page 5 20% – 100% of the nominal output. When the indicator is in the red area, the heating runs continuously. approx. 100% approx. 20% Fig. 2: The controller turning knob scale Towel dryer bus Packing O-ring (compressed) Turning knob Supply cable Fig. 3: MINI PW controller...
- Page 6 The manufacturer reserves the right to make any changes to its products deemed to be necessary or beneficial. This document and any part thereof may not be copied, altered or reproduced without the written approval of ISAN Radiátory s.r.o.
- Page 7 MINI PW CONTROLLER (Power version) WARRANTY Seller's warranty applies only to the tightness, surface finish, specified parameters of heating output and pressure losses of heating units professionally installed in a closed hot water system in accordance with applicable standards and regulations, including the corrosion properties of the heat carrying liquid used exclusively as heating medium and never as service water.
- Page 8 MINI PW CONTROLLER (Power version) ISAN Radiátory s.r.o. Company address: Cejl 105, 602 00 Brno, Zábrdovice Establishment: Poříčí 26, 678 01 Blansko www.isan.cz sales@isan.cz phone: +420 516 489 180, fax: +420 516 489 605 12/17 XXXXXXXXX...
