1. Make sure these instructions are read and completely understood before attempting
installation. If you are unsure of any part of this installation, contact a professional
installer for assistance.
2. The wall or mounting surface must be capable of supporting the combined weight of
the mount and the display; otherwise the structure must be reinforced.
3. Safety gear and proper tools must be used. Failure to do so can result in damage or
injury.
4. Follow all instructions and recommendations regarding adequate ventilation and
suitable locations for mounting your display. Consult the owner's manual for your
display for more information.
You will need the following tools to complete your installation:
• Phillips Head Screw Driver
• Electric or Portable Drill
• Stud Finder and 1/8" (3 mm) Drill Bit for Drywall Installation
• 5/16" (8 mm) Masonry Bit for Concrete Installation

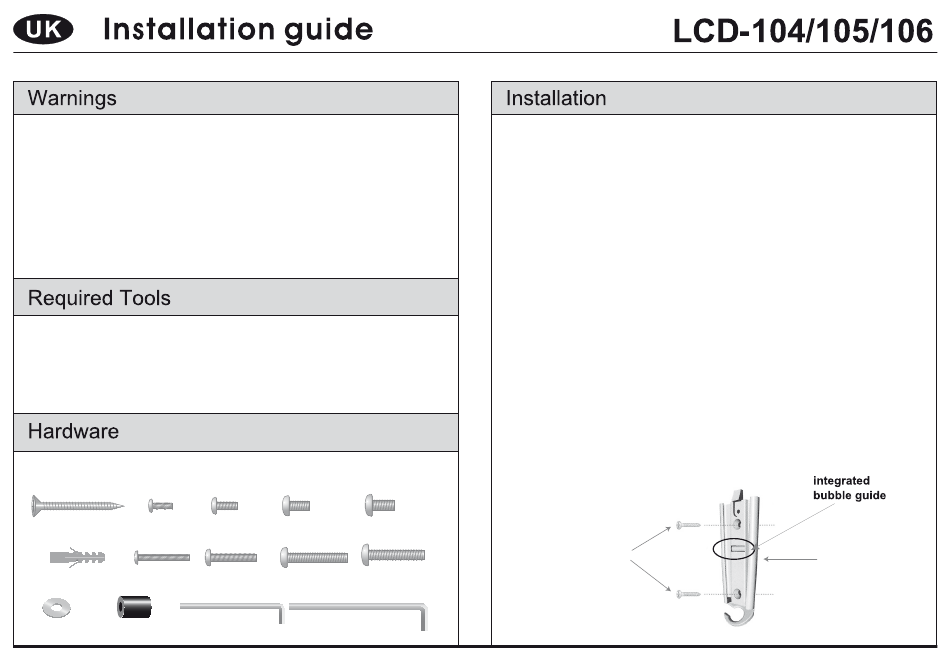

Check to make sure all hardware has been included with your mount. You should find
the following:
(A) Drywall Screw x2
(C) M4 x 12 x4
(E) M5 x 12 x4
(B) x2
(D) M4 x 25 x4
(F) M5 x 25 x4
(K) M6 x4
(L) 10mm x4
(M) 3 mm x1
(G) M6 x 12 x4
(I) M8 x 12 x4
(H) M6 x 25 x4
(J) M8 x 25 x4
(N) 4 mm x1
Part 1a - Install the Wall Piece (Drywall)
1. Using a high quality stud finder, locate and mark one stud for installing the wall mount.
Use a small nail or awl to verify the location of the stud.
2. Place the wall piece portion of the mount over the center of the marked stud and level
it using the integrated bubble guide.
3. Mark off the two holes for securing the mount and place the wall piece aside.
4. Using an electric or portable drill with 1/8" (3 mm) bit, drill the marked holes.
5. Move the wall piece portion of the mount back into place and attach it using the
Drywall Screws (A) from the hardware kit. Make sure both screws are snug, but do not
to over-tighten them.
Part 1b - Install the Wall Piece (Concrete)
1. Place the wall piece portion of the mount in the desired location and level it using the
integrated bubble guide.
2. Mark off the two holes for securing the mount and place the wall piece aside.
3. Using an electric or portable drill with 5/16" (8 mm) masonry bit, drill the marked holes.
After drilling, remove any excess dust from the holes.
4. Insert a Concrete Anchor (B) into each hole. The anchors must be inserted until they are
flush with the concrete surface; a hammer can be used to lightly tap each anchor into
place if necessary.
5. Move the wall piece portion of the mount back into place and attach it using the
Drywall Screws (A) from the hardware kit. Make sure both screws are snug, but do not
to over-tighten them.
Drywall Screws (A)
Wall Piece
