Serialio iMedia Quick Start Manual

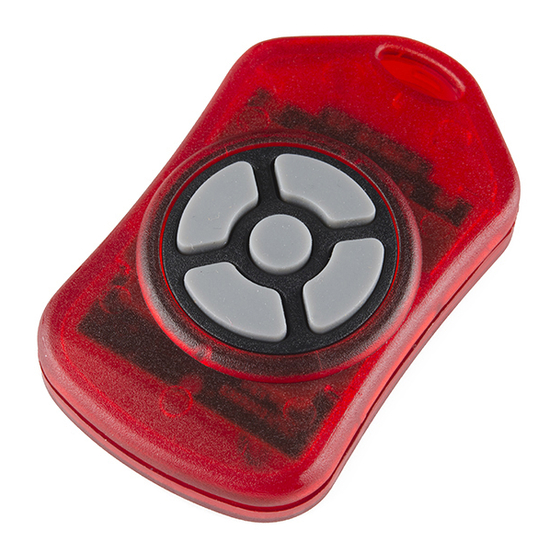

The i Media i s a 5 -­‐button B luetooth r echargeable r emote c ontroller t hat u ses t he H ID B luetooth p rofile. T he
remote w orks w ith a ll k nown B luetooth h osts t hat s upport H ID, i ncluding W indows, O SX ( Mac), A ndroid
smart p hones, a nd i OS d evices ( iPad, i Pod, i Phone).
Powering t he i Media r emote o n/off
To p ower o n t he r emote, p ress a nd h old B 5 u ntil t he L EDs b link, t hen r elease.
To p ower o ff t he r emote, p ress a nd h old B 5 u ntil b oth L EDs f lash q uickly, t hen r elease ( 3 s econds)
The r emote w ill a utomatically p ower o ff i f n o b uttons a re p ressed f or 1 20 s econds.
Pairing a nd c onnecting
The i Media r emote i s d esigned t o a lways b e d iscoverable a nd w ill s how u p a s a k eyboard w ith t he
device n ame s hown i n f ormat i Media – A BCD ( ABCD r epresents t he l ast 2 b ytes o f t he B luetooth
MAC a ddress). O nce p aired, t he i Media r emote w ill a utomatically c onnect b ack t o t he m ost r ecently
paired h ost d evice o n p ower u p, o r w hen a l ink i s l ost. U p t o e ight p airings c an b e s tored b y t he
iMedia r emote.
Pairing w ith a n i OS d evice
iOS 6 : G o t o t he " Settings" a pp, t ap " Bluetooth," a nd s elect " iMedia-­‐ABCD"
•
iOS 5 o r e arlier: G o t o t he " Settings" a pp, t ap " General," t ap " Bluetooth," a nd s elect " iMedia-­‐
•
ABCD"
Pairing w ith a n A ndroid d evice
Go t o t he " Settings" a pp, t ap " Bluetooth," t ap " Search f or d evices," a nd s elect " iMedia-­‐ABCD"
•
Pairing w ith a P C/Mac
PC/Mac t hat s upports B luetooth 2 .1 + : n o p airing c ode i s r equired
•
PC/Mac u sing o lder B luetooth s tack ( 2.0 -­‐ ): p airing c ode = 1 234
•
For m ore i nformation, a nd a dvanced c onfiguration i nstructions, c ontact S erialio.com.
Bluetooth H ID r emote c ontrol
Device I nformation &
Quick S tart G uide
LED m eanings o n p ower-­‐up
LED Action
Yellow Slow s teady b link
Yellow Short p ulse
Yellow Pulse
Red Slow p ulse
Red Fast p ulse
Red Fast b link
Your serial solution provider on
over 500 mobile device models
i
Media
Meaning
Trying t o c onnect t o p aired d evice
Ready t o p air
Keystrokes s ent
Connected, m ode 1 ( music m ode)
Connected, l ast s tored m ode
Low b attery
