Summary of Contents for Minco MK70 WIFI

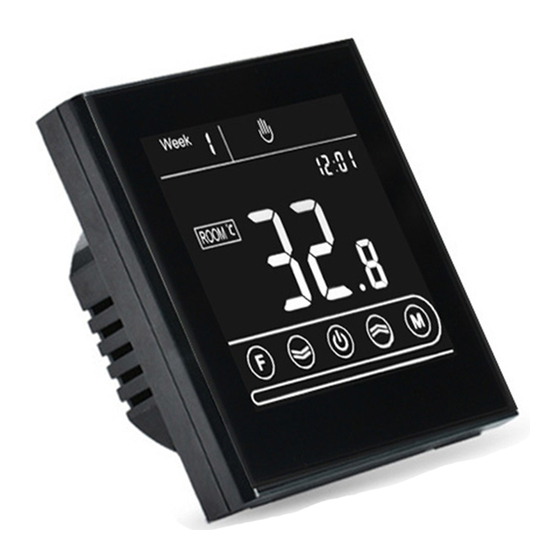

- Page 1 MK70 WIFI THERMOSTAT USER GUIDE THIS THERMOSTAT IS SUITABLE FOR WATER HEATING, ELECTRIC HEATING AND GAS BOILER...
- Page 2 MK70 WIFI THERMOSTAT USER GUIDE Welcome Thank you for your trust and support. By adopting higher-end technology and more perfect technology, your new thermostat will provide you with the right temperature environment every day in the future, making your life more comfortable and your living environment more stylish and beautiful.
- Page 3 MK70 WIFI THERMOSTAT USER GUIDE Product packaging Thermostat host ----------1PC Manual -- -- -- -- 1 PC Qualification certificate -----1PC Screw -----------2PCS Sensing line (optional) -----1PC Product Model GAPlumbing3AGBElectricHeating16A GC linkage, gas boiler 3A L backlight (you can adjust the brightness or turn off the backlight through the mobile...
- Page 4 MK70 WIFI THERMOSTAT USER GUIDE User Notes 1. Please read this manual carefully. Improper operation may damage the product or cause dangerous conditions. 2. The installation personnel must be well-trained and experienced service technicians. 3. After installation, please read this manual carefully and operate the product according to the instructions.
- Page 5 MK70 WIFI THERMOSTAT USER GUIDE Installation procedure This product is installed with a standard 86 control switch (in compliance with European regulations) 1. Slide the mounting plate 2. Remove the mounting downward in this direction plate in this direction 4. After installation, buckle the 3.

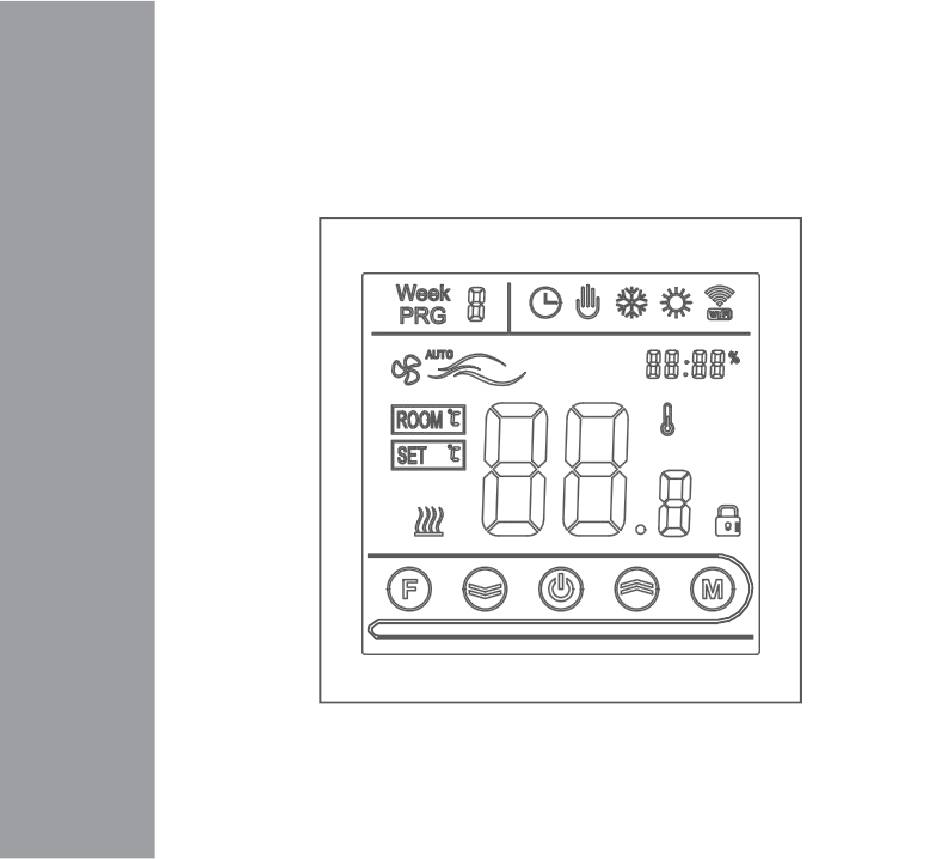

- Page 6 MK70 WIFI THERMOSTAT USER GUIDE Description of display & Icon ICON OF MODE WEEK/TIME ICON TIME INDOOR DISPLA TEMPERATUR LOCKING ICON HEATING ICON ICON...
- Page 7 MK70 WIFI THERMOSTAT USER GUIDE Operating Instruction 1. Power on/off: press to turn on/offthe thermostat. 2. Press toswitchmanual andautomaticmodes. 3. In automatic mode, press the key or key to adjust the temperature to enter the automatic temporary mode. This mode only runs for a period of time.
- Page 8 MK70 WIFI THERMOSTAT USER GUIDE Time programming instructions Press and hold the keytoentertheprogrammingsetting,shortpressthe to switch the option, press the key or key to adjust each option parameter, and pressthe key to exit and save. OPTION ICON TIME ADJUST DEFAULT ADJUST...
- Page 9 MK70 WIFI THERMOSTAT USER GUIDE Advanced options In the power-on state, press simultaneously for 5 seconds to enter the advanced option settings. Press to enter the next option, press to adjust, and press to exit the advanced option. The default value of the calibration room temperature is -2 ° C. Press the up Temperature compensation and down keys to adjust.
- Page 10 MK70 WIFI THERMOSTAT USER GUIDE About WIFI connection Before using the WIFI thermostat for the first time, you should set the WIFI signal and configuration through your smart phone or tablet to allow communication between your connected devices. 1. Download the APP...
- Page 11 MK70 WIFI THERMOSTAT USER GUIDE 2.Register Account If you don't have an APP account yet, you can choose to register or log in via SMS verification code. Click "Create a new account", you will enter the Tuya Smart Platform Privacy Policy page. After you click Agree, you will...
- Page 12 MK70 WIFI THERMOSTAT USER GUIDE The system automatically determines the current country/region. You can also select the country/region manually. After entering your mobile phone number or email address, click “get verification code”. Enter the received verification code, then enter the...
- Page 13 MK70 WIFI THERMOSTAT USER GUIDE 3. Add device Click "add device" or "+" on the top right of the APP homepage to enter the "add device" page. Currently, there are two ways to manually add device and search device.
- Page 14 MK70 WIFI THERMOSTAT USER GUIDE Find the thermostat product (WIFI model) in the device list. In the specified network mode, the indicator flashes (slowly flashes) and then click the confirm button on the page. Select the device's work area to connect to the WIFI of the Internet and enter the WIFI password.
- Page 15 MK70 WIFI THERMOSTAT USER GUIDE If the default mode distribution network is selected, the distribution process APP is shown in figure 1 below, and the distribution network successfully displays the interface shown in figure 2. The name of the device can be changed or the location of the room can be...
- Page 16 MK70 WIFI THERMOSTAT USER GUIDE If the distribution network fails, the APP will display the page shown in the figure below. You can choose to add or view the help again. Note: if the connection fails, please confirm whether the temperature control device has entered the code matching state,...
- Page 17 MK70 WIFI THERMOSTAT USER GUIDE 4. Display oftemperaturecontroller APPinterface...
