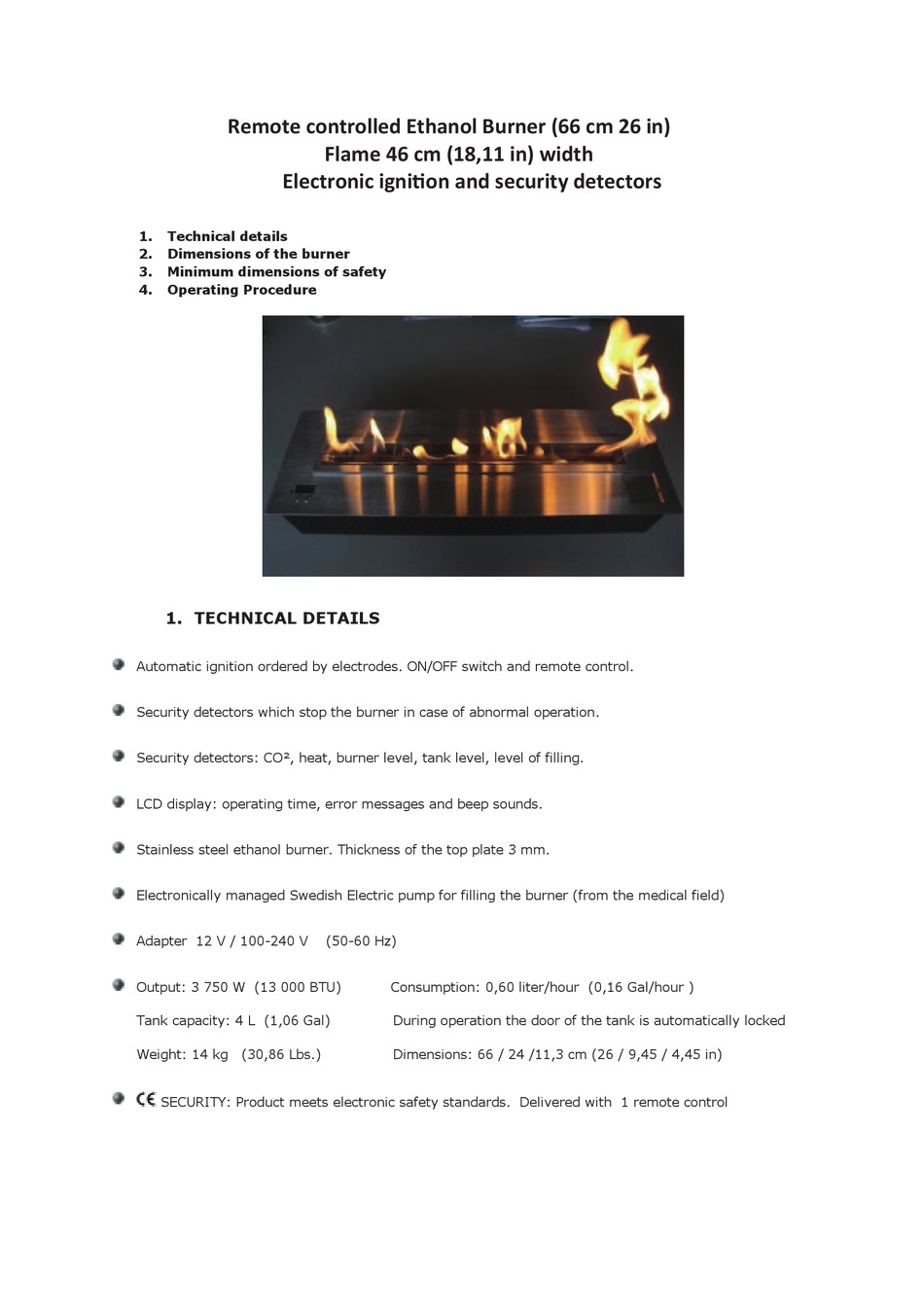

Art Fireplace Autoburner 660 Manual

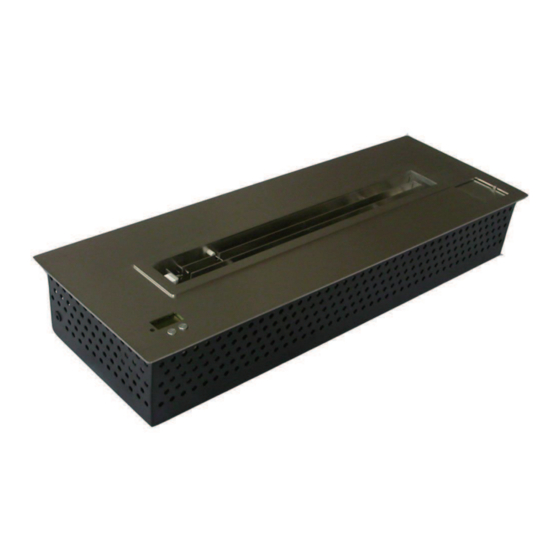

Remote controlled Ethanol Burner (66 cm 26 in)
Electronic igniion and security detectors
1.

Technical details

2. Dimensions Of The Burner
3. Minimum Dimensions Of Safety
4. Operating Procedure
1. TECHNICAL DETAILS
Automatic ignition ordered by electrodes. ON/OFF switch and remote control.
Security detectors which stop the burner in case of abnormal operation.
Security detectors: CO², heat, burner level, tank level, level of filling.
LCD display: operating time, error messages and beep sounds.
Stainless steel ethanol burner. Thickness of the top plate 3 mm.
Electronically managed Swedish Electric pump for filling the burner (from the medical field)
Adapter 12 V / 100-240 V
Output: 3 750 W (13 000 BTU)
Tank capacity: 4 L (1,06 Gal)
Weight: 14 kg (30,86 Lbs.)
SECURITY: Product meets electronic safety standards. Delivered with 1 remote control
TECHNICAL DATA: AF66
Flame 46 cm (18,11 in) width
(50-60 Hz)
Consumption: 0,60 liter/hour (0,16 Gal/hour )
During operation the door of the tank is automatically locked
Dimensions: 66 / 24 /11,3 cm (26 / 9,45 / 4,45 in)
