Summary of Contents for Spraying Systems AA290AG Series

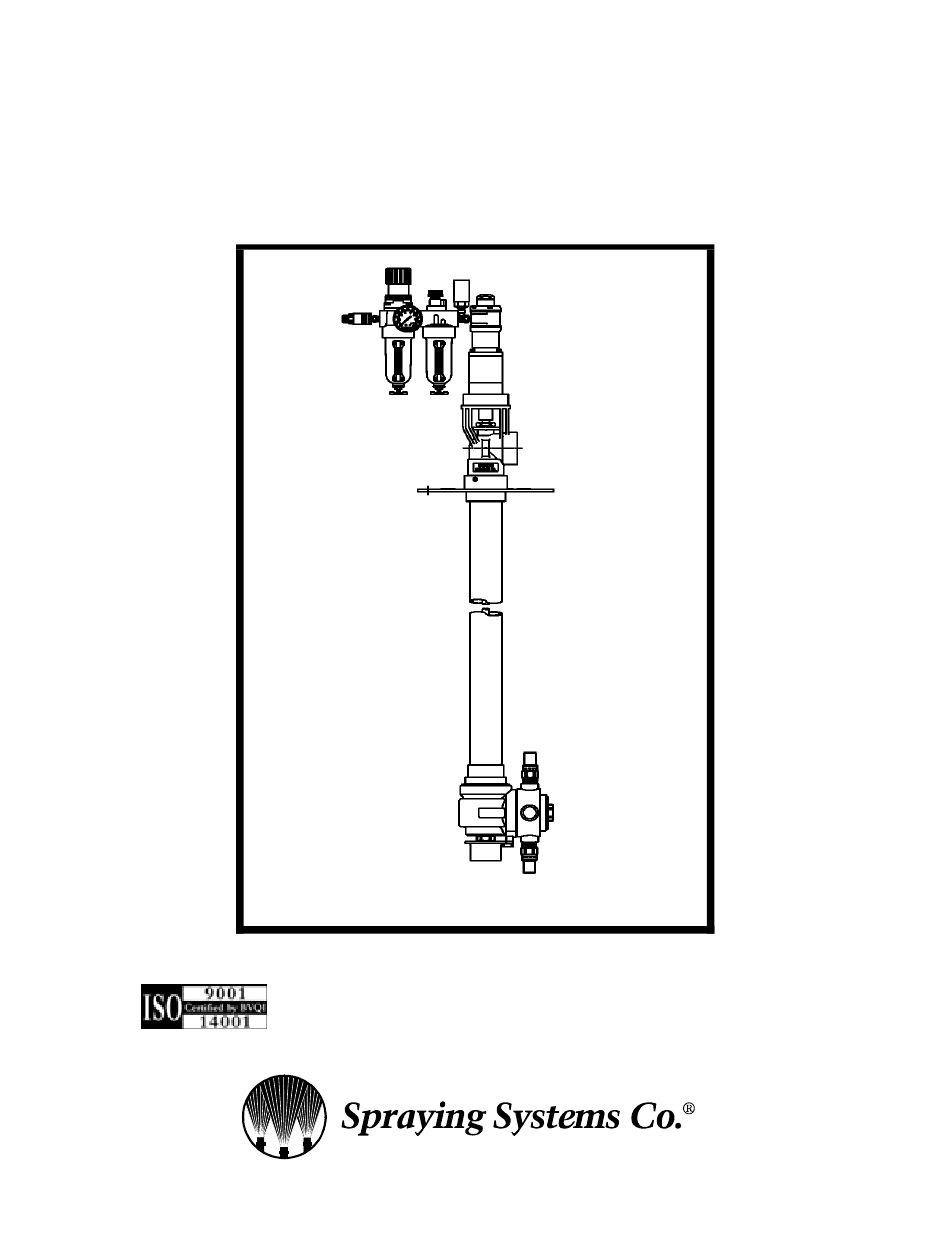

- Page 1 MI-290AG Rev 4 AA290AG-- Series AIR MOTOR-DRIVEN TANK WASHER Owner’s Manual North Ave. at Schmale Rd., P.O. Box 7900 Wheaton, Illinois 60189-7900 USA Phone (630) 665-5000 * Fax (630) 260-0842* www.spray.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FORWARD / INTRODUCTION ..................3 PRODUCT SPECIFICATIONS AA290AG-- Air Motor-Driven Tank Washer ............4 Performance & Dimensional Data ..............4-5 MAINTENANCE INFORMATION Removal / Replacement of Spray Nozzles ............6 Removal / Replacement of Air Motor Drive ............. 6 Removal / Replacement of Motor Drive Coupling .......... -
Page 3: Forward / Introduction
The equipment and/or parts described in this document were manufactured and assembled with the quality and high reliability, which have become synonymous with ® the name of Spraying Systems Co. Note: The description and specifications contained herein were effective at the date of ®... -
Page 6: Removal / Replacement Of Spray Nozzles
MAINTENANCE Removal and replacement of spray nozzles (see parts list drawing PL 290AG: p10) Unscrew spray nozzles (20) from nozzle hub (19) and inspect for wear and plug gage. If the nozzles need replacement, obtain new nozzles. If a nozzle is plugged or partially plugged, clean out the orifice and inlet area with a wooden toothpick or other relatively soft probe. -
Page 7: Removal / Replacement Of Motor Drive Coupling
Replacement/Removal of air motor drive coupling (8) (see parts list PL 46340: p13) First, follow procedure above for “Removal of #46340 Air Motor Drive”. With a rubber mallet tap the coupling (8) to dislodge it from the gear reducer (10). Align the key way on the coupling (8) with the key (9) on the gear reducer (10) shaft and lightly tap the coupling (8) till the coupling (8) bottoms on the gear reducer (10) shaft. -
Page 8: Replacement Of Nozzle Hub Bushings
Replacement of nozzle hub bushings (14)) (see parts list PL 290AG: p10) Unscrew (clockwise-left hand thread) rotary housing plug (21), and slide bushings (14), and nozzle hub (19) off the rotary housing (13). Remove any foreign material from nozzle hub gear teeth. -
Page 9: Air Motor Lubrication
Use detergent SAE #10 automotive engine oil. Consult with you local supplier of ® lubricants or contact your local Spraying Systems CO sales office. NOTE: The air source must be water free, and be properly lubricated to prevent rust and excessive friction from wearing out the motor prematurely. -
Page 11: Air Motor Drive Assembly
MI-290AG Rev. 4... -
Page 14: Gast ® Motor Drive Operation & Maintenance Manual
MI-290AG Rev. 4... - Page 15 MI-290AG Rev. 4...
- Page 16 MI-290AG Rev. 4...
- Page 17 MI-290AG Rev. 4...
- Page 18 MI-290AG Rev. 4...
- Page 19 MI-290AG Rev. 4...
- Page 20 MI-290AG Rev. 4...
