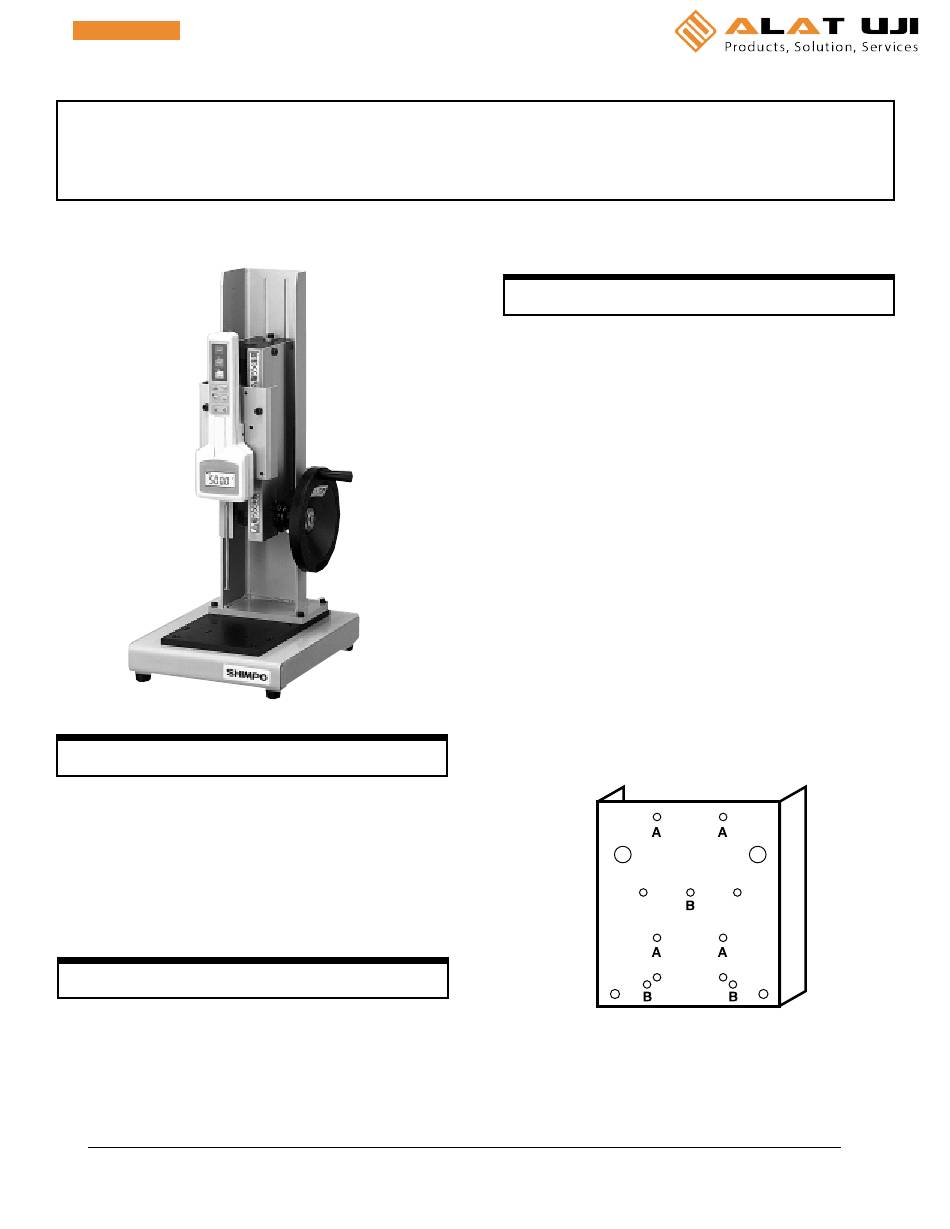

Shimpo FGS-100H Instruction Manual

Manual Hand Wheel
Test Stand
Model FGS-100H / FGS-50H
Specifications
Capacity: 50Kg (110lbs.)
Travel: 150mm (5.9in.) MAX
Clearance: 50-202mm
6 positions, 30mm/step (5 steps)
Weight: 15Kg (33lbs.)
Accessories
Mounting bracket ................................... 1pc.
Cable holder ........................................... 1pc.
5mm Allen wrench ................................. 1pc.
Philips head screw M4x8 ...................... 4pcs.
Philips head screw M5x6 ...................... 3pcs.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: 021-8690 6777 (Hunting)
Instruction Manual Instruction Manual Instruction Manual
Instruction Manual Instruction Manual
Mounting Bracket
Force Gauges
1. Remove the bracket from the test stand using the 5mm
Allen wrench included.
2. Use the mounting holes marked "A" on the diagram for
mounting the FGE and FGV series force gauges with the
(4) M4x8 Philips head screws included.
3. Use the mounting holes marked "B" on the diagram for
mounting the DFS series force gauges with the (3)
M5x6 Philips head screws included.
4. Adjust the clearance span by removing the hex bolt from
the hole in the back of the stand. Loosen but do not
remove the hex bolts from the (3) slots. Adjust the span
by sliding the drive unit to the hole position desired and
insert the hex bolt and tighten. Tighten the (3) hex bolts
in the slots as well.
5. Re-install the bracket with the force gauge to the test stand.
6. Testing may now begin with the force gauge and test stand.
Mounting Bracket
