Summary of Contents for Yolink YS6801- UC

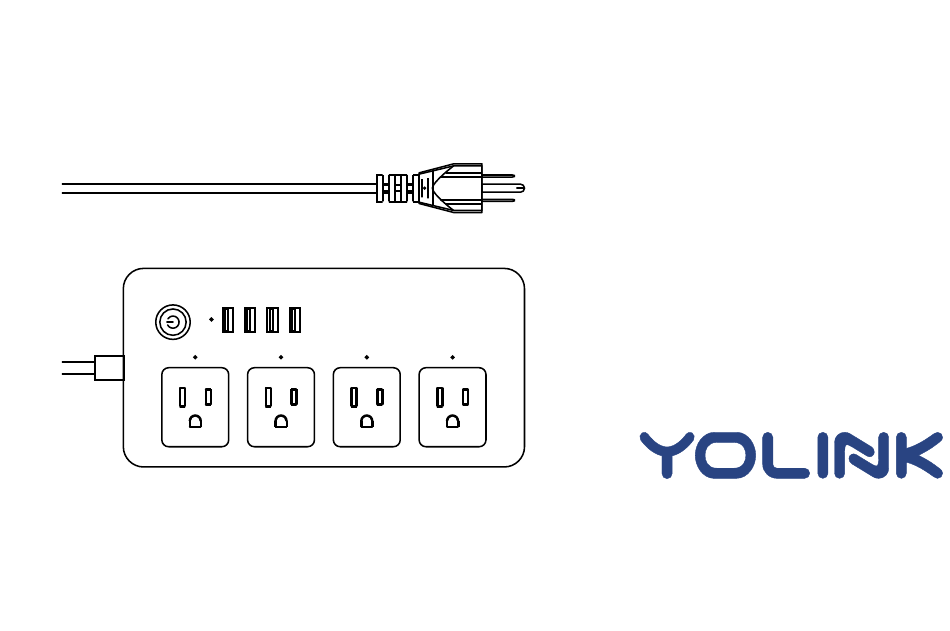

- Page 1 Smart Power Strip YS6801- UC/SM - SO301 User Guide Rev 1.1...
-
Page 2: Table Of Contents
······················ ····· ····· ···················································· · · · ·· · ·1 Introduc on ······························································································2 Set up ····································································································· ··4 · Using the YoLink app ··················································································6 About YoLink Control ······························ ················ ··································13 Maintenance ······················································································· ····18 · Specifica ons ····················································································· ·····20 · Troubleshoo ng ················································································· ·····21 ·... -
Page 3: In The Box
In the box Smart Power Strip Quick Start Guide... -
Page 4: Introduc
With independent control of 4 smart outlets, plus control of 4 USB ports, you can easily control lights and home electric devices via YoLink App on your iOS or Android devices, as well as popular voice assistants and 3rd-party automa on apps such as IFTTT... - Page 5 All plugs and USB are off The USB ports are on Blinking Blue Connec ng to cloud Fast Blinking Blue Establishing Connec on with YoLink System Slow Blinking Blue Power Status Upda ng Indicator (Plug) Fast Blinking Red Removing Connec on to...
- Page 6 Download YoLink app through Apple App Store or Google Play Store Log in or create a new account if required YoLink Hub is required to set up your Smart Power Strip. Please set up your YoLink Hub first (refer to YoLink Hub manual)
- Page 7 Add device Tap “ ” bu on, then scan QR Code on the device Plug into an outlet, the Status LED will blink several mes (red, then blue). The blue LED indicates the device is online and ready to use * Status LED will blink red once, then blue several mes(If device is working well...
-
Page 8: Using The Yolink App
Using the YoLink app Device page Details * Tap to go to Details page (refer to page 7) Connec on status Device name of power strip and Hub * Edit name on Details page * Tap to turn on/off all plugs and USB ports Real- me status: Turned on or turned off... - Page 9 Device history “#### ready now ” indicates a new update is available (refer Plug or USB or all turned to page 18) on or turned off, logged with date & me * Tap to delete the device from your YoLink account...
- Page 10 Timer With YoLink app, you can set up a mer to turn on or/and off 4 plugs individually Note One mer will run only once. You can set a new mer a er the mer has already run or once you...
- Page 11 Schedule Create on/off schedules to automate your plugged-in devices to work around your home and work schedules Note You can have a maximum 10 schedules at one me A er se ng up, the schedule is running at device without internet You may add as many schedules as you want in Automa on se ngs.
- Page 12 Scene Set one-click control for mul ple devices in your YoLink app. You can only run a scene via your YoLink app Go to “Smart”, tap “Scene” followed by the “ ” icon to add a scene Fill in details followed by the “...
- Page 13 Automa on Easily set up rules for “if this then do that” func ons Go to “Smart”, tap “Automa on” followed by the “ ” icon to add an automa on Fill in details followed by the “ ” icon Tap to add an Tap to save the se ngs automa on...
- Page 14 Voice Assistants Connect YoLink with third-party voice assistants ser vice to control or monitor the status of your devices through voice commands Tap “ ” in the upper le corner to go to My Profile Go to Se ngs > Voice Assistants for the applicable voice assistant integra on guide...
-
Page 15: About Yolink Control
Hub or an internet connec on. (Use of YoLink Control is op onal; you can use the Automa on feature in the app OR use YoLink Control, but YoLink Control offers the benefit of opera on without the Hub or internet connec on.) One device controls another, directly. - Page 16 Note If you want to turn off the YoLink Plug Mini when the power strip is all on, turn off the YoLink Plug Mini first, and let it enter pairing mode For the same Smart Power Strip and YoLink Plug...
- Page 17 Turn on the plug * verify the Status LED of YoLink Plug Mini displays blue. Refer to the YoLink Plug Mini manual for more informa on: YS6604-UC_YoLink Plug Mini POWER Bu on POWER Bu on Hold the POWER button on the Smart...
- Page 18 Opera on When the power strip is all on, the YoLink Plug Mini will now immediately turn on. The plug will remain turned on un l turned off using the POWER bu on or via the app More advanced sequences, controlling mul ple outputs (e.g. turn off plug) are available via the YoLink app Turned off...
- Page 19 LED quickly blinks blue, then red Upon un-pairing, either the Smart Power Strip LED or the YoLink Plug Mini LED will stop blinking and return to the previous color (blue for turned on, red for turned off)
-
Page 20: Maintenance
Maintenance Firmware Update To ensure our customers have the best user experience, we highly recommend you update to the newest version firmware when an update is available In “Firmware”, if a new version is listed as available (#### ready now), click it to start the firmware update process You may use your device during the update as it is performed in the background. - Page 21 Factory reset will erase all of your se ngs and restore it to factory defaults. A er the factory reset, your device will remain in your Yolink account Hold the POWER bu on for 20-25 seconds un l the power status indicator (plugs&USB) blinks...
-
Page 22: Specifica Ons
Specifica ons Input: 100 - 120V AC, 60Hz AC Power Output: 100 - 120V AC, 10A MAX (Resis ve) USB Power Output: 5V DC, 2.1A Dimensions: 7.88 x 3.94 x 1.14 inches (L x W x D) Power Cord (power ~5 feet plug included): Environment:... - Page 23 - Power outages (before or during) can prevent the mer from execu ng. Press the power bu on once to turn on/off the power strip, also you can turn on/off the power strip via YoLink App or set a new mer. (When you add a rese ng/one- me-use mer this will need to be amended with that new informa on.)
-
Page 24: Warning
Warning Please connect power strip to the voltage according to the specifica on labeled on the power strip , please do not connect the power strip to excessive input voltages Please do not load more than 10A(resis ve) in total current for 4 plugs, and do not load more than 2.1A in total current for 4 USB ports The power strip is not waterproof, keep away from rain, wind, and sunlight Please do not use strong chemicals or cleaning agents to clean the power strip. -
Page 25: Customer Service & Warranty
If you are unable to get your smart power strip working, please contact Customer Service during business hours US Live Tech Support: 1-949-825-5958 M-F 9am - 5pm PST Email: service@YoSmart.com YoSmart Inc. 17165 Von Karman Avenue, Suite 105, Irvine, CA 92614 Warranty 1 Year Limited Electrical Warranty YoSmart warrants to the original residen al user of this product that it will be free from defects in... - Page 26 FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec on against harmful interference in a residen al installa on. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc ons, may cause harmful interference to radio communica ons.
- Page 27 Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifica ons to this equipment. Such modifica ons could void the user’s authority to operate the equipment. FCC RF radia on exposure statement This equipment complies with FCC RF radia on exposure limits set forth for an uncontrolled environment.
