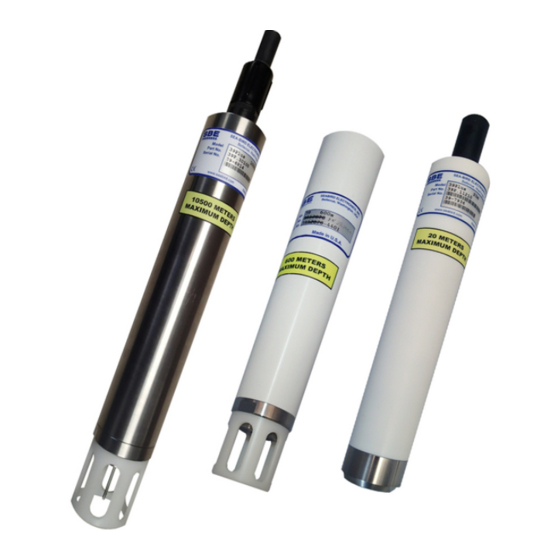

SBE 39Plus Quick Start Manual

SBE P/N 60070
SBE 39Plus Spares Kit (Internal Connector)
Kit Contents
SBE P/N Part Description
31018 O-RING, PARKER 2-029 N674-70
60039 SBE39 Desiccant Packs, 1gm- 25 ea
A. REPLACING THE BATTERY Follow the instructions below to replace the AA cells
1) Remove the titanium end cap and electronics from the housing as follows:
a) Wipe the outside of the end cap and housing dry, being careful to remove any water at the
seam between them.
b) Using a wrench on the end cap's wrench flats, unscrew the end cap.
c) Pull the end cap and attached electronics out of the housing.
d) Remove any water from the end cap O‐rings and mating surfaces inside the housing with a
lint‐free cloth or tissue.
2) Replace the AA cells: Push each cell out of the battery holder, and install the new cells.
3) (39plus with external connector) Install two new desiccant capsules in the slots on top of the
battery pack.
4) (39plus with no external connector) Install a new desiccant bag
5) Reinstall the end cap:
a) Remove any water from the O‐rings and mating surfaces in the housing with a lint‐free cloth
or tissue. Inspect the O‐rings and mating surfaces for dirt, nicks, and cuts. Clean as
necessary. Apply a light coat of O‐ring lubricant (Parker Super O Lube) to O‐ring and mating
surfaces.
b) Carefully fit the end cap into the housing, pushing in until the first O‐ring is seated.
c) Using a wrench, screw the end cap into the housing.
S E A - BI R D E LE CT R O NI C S, INC.
th
13431 NE 20 Street, Bellevue, WA 98005 USA
Telephone: (425) 643-9866
DATE
10/14
Replace Desiccant bag every time you open the sensor
Sea-Bird Electronics Procedure
PROCEDURE NUMBER: 67228
TITLE: SBE PN 60070 SBE 39Plus Spares Kit (Internal
Connector)
REVISION: A
EFFECTIVE DATE: 20 MAY 2014
Fax: (425) 643-9954 email: seabird@seabird.com
REV REVISION RECORD
A CHANGE O-RING FROM 31274
Primary SBE Application
End cap O-Rings
P r o c e d u r e f o
P r o c e d u r e f o
AUTH DR CHK
CB CB
QTY
4
1 can
r S B E 3 9 P l u s
r S B E 3 9 P l u s
