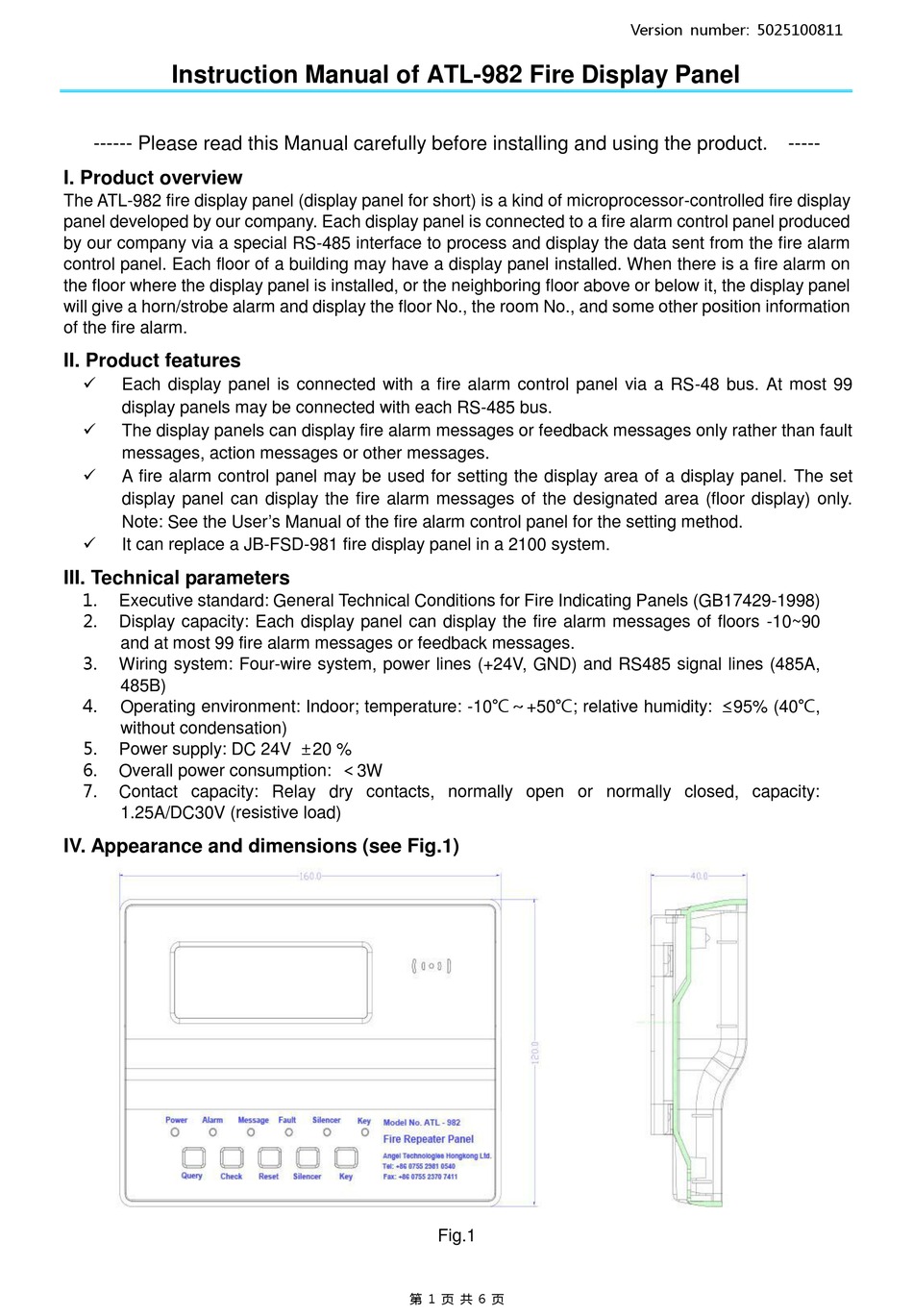

Instruction Manual of ATL-982 Fire Display Panel
------ Please read this Manual carefully before installing and using the product. -----
I. Product overview
The ATL-982 fire display panel (display panel for short) is a kind of microprocessor-controlled fire display
panel developed by our company. Each display panel is connected to a fire alarm control panel produced
by our company via a special RS-485 interface to process and display the data sent from the fire alarm
control panel. Each floor of a building may have a display panel installed. When there is a fire alarm on
the floor where the display panel is installed, or the neighboring floor above or below it, the display panel
will give a horn/strobe alarm and display the floor No., the room No., and some other position information
of the fire alarm.
II. Product features
Each display panel is connected with a fire alarm control panel via a RS-48 bus. At most 99
display panels may be connected with each RS-485 bus.
The display panels can display fire alarm messages or feedback messages only rather than fault
messages, action messages or other messages.
A fire alarm control panel may be used for setting the display area of a display panel. The set
display panel can display the fire alarm messages of the designated area (floor display) only.
Note: See the User's Manual of the fire alarm control panel for the setting method.
It can replace a JB-FSD-981 fire display panel in a 2100 system.
III. Technical parameters
1.
Executive standard: General Technical Conditions for Fire Indicating Panels (GB17429-1998)
2.
Display capacity: Each display panel can display the fire alarm messages of floors -10~90
and at most 99 fire alarm messages or feedback messages.
3.
Wiring system: Four-wire system, power lines (+24V, GND) and RS485 signal lines (485A,
485B)
4.
Operating environment: Indoor; temperature: -10℃～+50℃; relative humidity: ≤95% (40℃,
without condensation)
5.
Power supply: DC 24V ±20 %
6.
Overall power consumption: ＜3W
7.
Contact capacity: Relay dry contacts, normally open or normally closed, capacity:
1.25A/DC30V (resistive load)
IV. Appearance and dimensions (see Fig.1)
Fig.1
第 1 页 共 6 页
Version number: 5025100811
