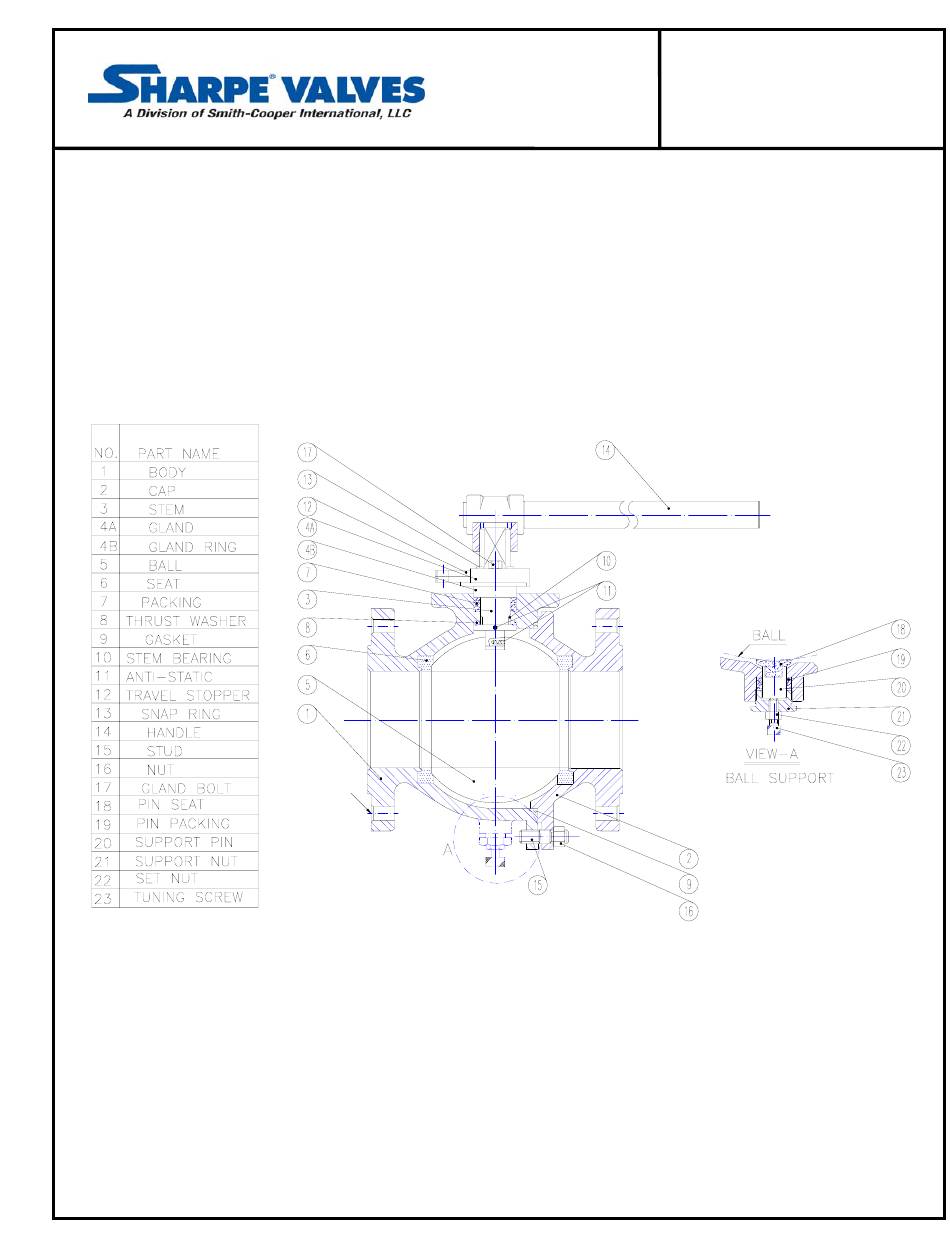

IM-50-2, Rev. B July 29, 2011 Page 1 of 5 Installation, Operation, and Maintenance Manual Series 50 / FS50 Flanged Ball Valves Sizes 6” - 12” , Classes 150 & 300 DESCRIPTION: Split body, two piece construction full port ball valve. Design allows maintenance without the need for special tools.
Page 2
IM-50-2, Rev. B July 29, 2011 Page 2 of 5 2. These valves may be installed in any position using good pipe fitting practices. Flanges conform to ASME Standard B16.5, Class 150 or Class 300. 3. Periodically check and tighten body joint and flange bolting. (See TABLE 1 for torque requirements.) MANUAL OPERATION: 1.
Page 3
IM-50-2, Rev. B July 29, 2011 Page 3 of 5 5. Remove body seal. 6. For 10” and 12” valves only: Ball support must be backed off to remove ball. Loosen support nut, set nut and back out tuning screw on bottom of valve to release the ball support.
Page 4
IM-50-2, Rev. B July 29, 2011 Page 4 of 5 7. Turn the stem to the CLOSED position (bottom stem tan parallel to flow passage). Line up the ball slot with the stem tang and roll and lower the ball into position on the stem tang, letting the ball rest in the seat.
