- Page 1 MixSwitch-C OWNER’S MANUAL Contact Distribution Ltd. 38 Thornmount Drive, Unit #1 Scarborough, On M1B 5P2 Tel: 416-287-1144 Fax: 416-287-1204 E-mail: info@contactdistribution.com Web: www.apb-dynasonics.com...
-
Page 2: Important Saftey Instructions
IMPORTANT SAFTEY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS INSTALLATION AND OPERATING GUIDE AND THOSE MARKED ON THE UNIT. RETAIN THIS GUIDE FOR FUTURE REFERENCE. This unit has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 3: Manual Scope
We suggest that you occasionally check our web site for additional information about your mixer as well as for new product releases and news from APB-DynaSonics. Should you have any questions or comments about this or any other APB product, please do not hesitate to contact us at: Tel: 416-287-1144. -
Page 4: Basic Features

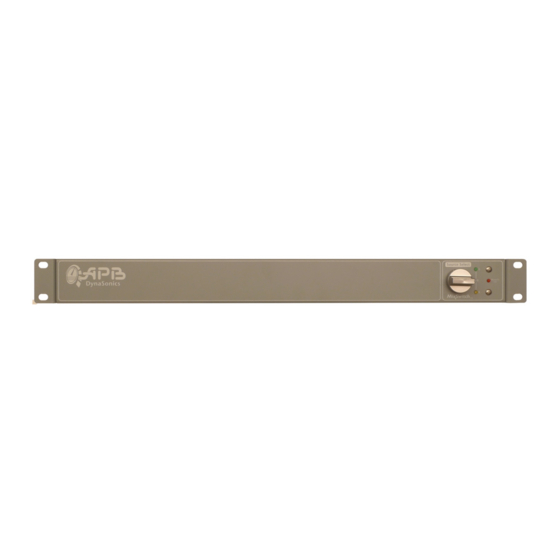

MixSwitch-C Functional Description MixSwitch-C can be thought of as a high-quality, 4-channel A-B Switch. Four “A” Inputs and four “B” Inputs are either switched or combined into four Outputs. A1 is switched or combined into Output-1, A2 into Output-2, A3 into Output-3, and A4 into Output-4. - Page 5 Main Inputs: Rear Panel Connectors There are two sets of 4 input jacks: Inputs A1 through A4 and Inputs B1 through B4. The jacks are Latching, 3-Pin Female XLR. Pin-2 is in-polarity, Pin-3 is out-of-polarity, Pin-1 is connected directly to the chassis metalwork. Electronically Balanced.
- Page 6 Remote Connectors (DSub-9 Input and Output): The DSub-9 connectors allow the MixSwitch or MixSwitch-C Master to control any added MixSwitch-C unit to act as an expander. Units are fitted with In & Out DSub-9 connectors (Male & Female) to allow this control function to daisy- chain to additional units when connected.
- Page 8 LCR+Sub outputs plus 8 Matrix Channels which would take three MixSwitch units with the first acting as a master and the 2nd two units acting as the expander providing switching of 12 Channel outputs of two consoles. MixSwitch-C is also used as an expander to the full function MixSwitch.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS General Specifications Frequency Response (A or B input to Output) +0/-0.1dB 5Hz to 50kHz (ref to 1kHz) THD + Noise (A or B Input to Output) <0.005% @ +15dBu output 20Hz to 20kHz Phase Response (A or B Input to Output) +2/-2 degrees 20Hz to 20kHz (ref to 1kHz) Noise Output Noise- No Inputs Selected...
