ORIGINAL KIT PARTS
PÙVODNÍ DÍLY STAVEBNICE
I.
Kit part 10
II.
Kit part 11
I.
77
plastic
21
= 1mm
l = 2mm
45
44
31

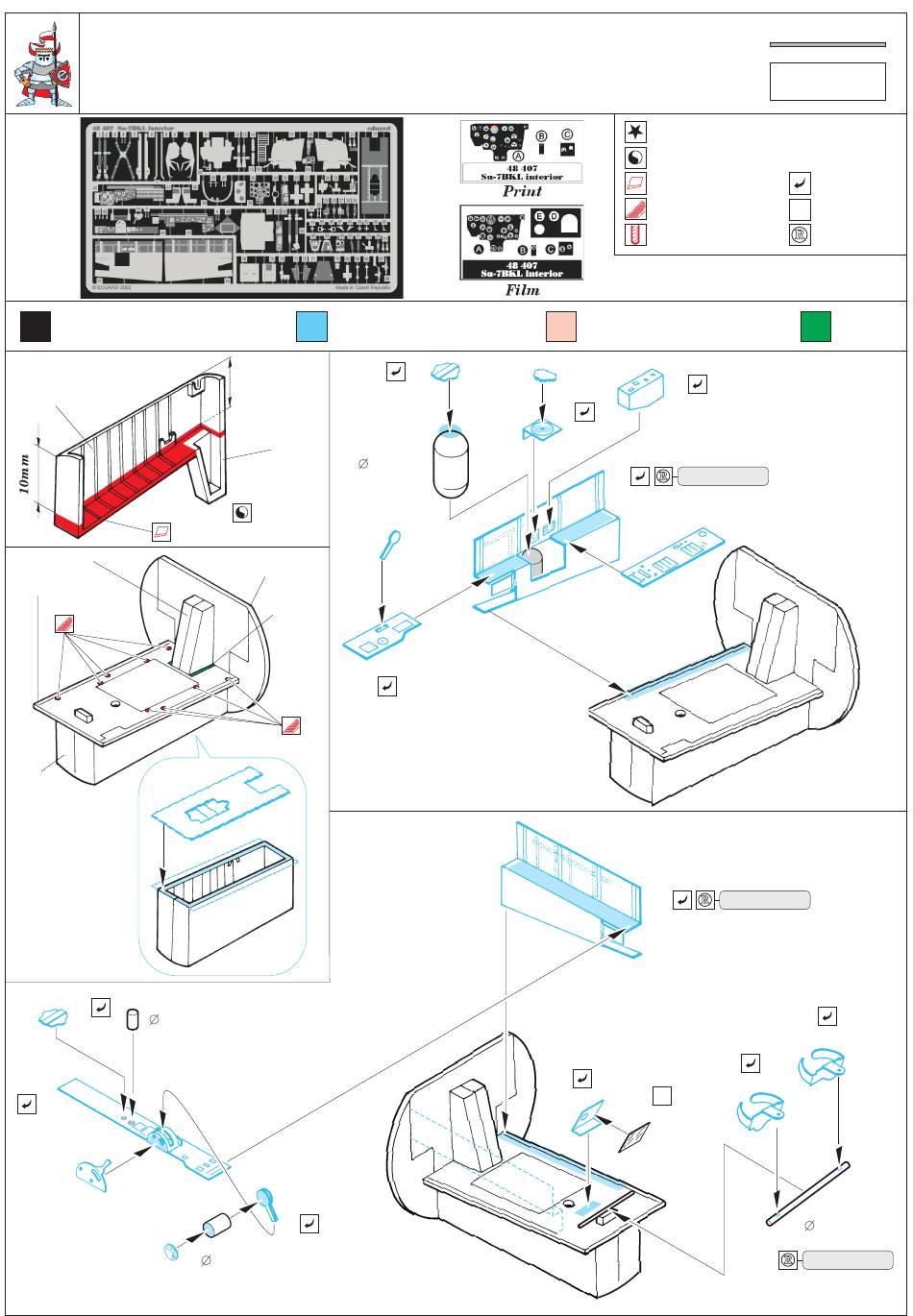

Su-7BKL Interior
1/48 scale detail set for Kopro kit • sada detailù pro model 1/48 Kopro
PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
7,5mm
II.
plastic
= 3mm
l = 4mm
Kit part 9
37
Kit part 15
Fill
Kit parts
9, 10
68
plastic
= 1mm
l = 2mm
21
33
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POU ÍT EXPRESS MASK NABARVIT PØED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁ
REMOVE
ODSTRANIT
GRIND
OBROUSIT
DRILL HOLE
VRTAT OTVOR
PARTS TO BE REMOVED
DÍLY K ODSTRANÌNÍ
43
24
70
47
Kit part 12
52
48
Kit part 13
Print C
?
63
Film C
48 407
eduard
48 407
BEND
OHNOUT
?
OPTION
VOLBA
REPLACE
NAHRADIT
FILL
TMELIT
67
66
plastic
= 0,5mm
l = 10mm
Kit part 22
Advertisement
Related Manuals for Eduard Su-7BKL Interior
Summary of Contents for Eduard Su-7BKL Interior
- Page 1 48 407 eduard Su-7BKL Interior 48 407 1/48 scale detail set for Kopro kit • sada detailù pro model 1/48 Kopro APPLY EXPRESS MASK AND PAINT BEFORE GLUING POU ÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁ REMOVE...
- Page 2 48 407 Kit part 16 Kit part 2 Print B Kit part 16 Film B Kit part 1 Print A Film A Kit part 16 2 pcs Film Film 2 pcs Kit part 1 Kit part 2...
- Page 3 48 407 Kit part 17 4 pcs Kit part 18 Kit part 19 Kit part 20 Kit part 21...
- Page 4 62 ( 61 ) 12, 61 13, 62 Kit part 110 REFERENCES : - HaPM 3, 4/1991 Kit part 111 - Replic No.14 October 1992 - KPM Hradec Králové - Manual Su-7 BKL Made in Czech Republic © EDUARD M.A. 2003 www.eduard.com...
