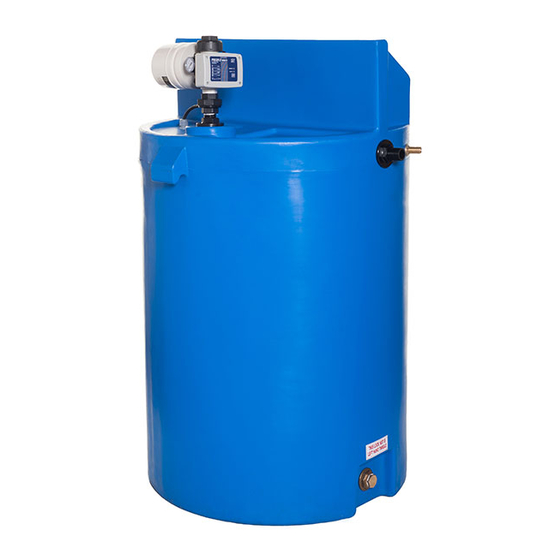

Summary of Contents for EPS MULTIBOOST 350L Simplicity Slimline Fixed Speed (Vario)
- Page 1 MULTIBOOST O & M Manual Rev 4 Multiboost Installation Integrated Sanic & Dos & Donts UV System...
-
Page 2: Table Of Contents
Contents Declaration of Conformity Directives & National Implementation Provisions Multiboost Range Delivering, Handling and Storing Installation Guide & Schematics Key Features Drip Trays Electrical Pump Type & Control Information Fixed Speed - Presflo Multi Controls Presflo Multi Presflo Vario Steadypres Anti Vibration Mat Insulation Jacket - Foil back Insulation Jacket - Black... -
Page 3: Declaration Of Conformity
The unit complies with all applicable Essential Requirement of the Directives. The Technical Construction File is maintained at: EPS Group Mallow Business and Technology Park Quartertown Signed: Mallow Managing Director, EPS Co Cork P51 AC94 Telephone: +353 (22) 31200 March 2019 Date: Email: info@epswater.ie... -
Page 4: Directives & National Implementation Provisions
Directives & National Implementation Provisions Pump Range Provisions EN 60335-1 Top Multi EN60034-1 Top Multi-Tech IEC 60335-1 IEC 60334-1 CIE 61-150 CIE 2-3 Controllers Directives 2006/95/CEE Low Voltage Directive 2002/95/CEE Dangerous substances in electromagnetic compliances (RoHS) 2002/96/CEE e 2003/108/CEE Dangerous substances in electronic appliances (WEEE) 2004/108/CE Electromagnetic Compatibility Directive(EMC) EN 5501-1 (emissions) Steadypres... -
Page 5: Multiboost Range
Multiboost Range Presfl o Vario System Weight Over- Drain Product Volume Length Width Height Inlet Outlet (Empty Model Type fl ow off Code [MM] [MM] [MM] [Inch] [Inch] Tank) [Inch] [Inch] (kg) MULTIBOOST 350L Simplicity 1031919 Slimline 1260 ½ ” BSP 1”... - Page 6 Multiboost Range Presfl o Multi System Weight Weight Over- Drain Product Volume Length Width Height Inlet Outlet (Empty Model Type fl ow off Code [LTR] [MM] [MM] [MM] [Inch] [Inch] Tank) [Inch] [Inch] (kg) MULTIBOOST 650L Utility 1028679 1083 1083 ½...
-
Page 7: Delivering, Handling And Storing
If there is a warranty defect with the unit, it will be repaired / replaced and your €150 will be refunded. If there is a defect outside EPS’ control (i.e. incorrect installation) the €150 fee will not be refunded. The additional cost of replacement parts will be administered in this situation also. -
Page 8: Installation Guide & Schematics
This pipe may have to be further increased in size and EPS recommends the installer fully tests this system to ensure that the overflow pipe is capable and adequate to cope with the unlikely event of a failure. - Page 9 (such as UV) is highly recommended. Slave Tank & Bypass EPS can provide an additional slave tank to cater for additional cold water storage demand and they can be linked together. This allows for an increase in storage tank capacity for extra demand that may occur.
- Page 10 Overfl ow/vermin screen needs to be cleaned › EPS is unable to service any unit installed › regularly to ensure removal of any impurities above ceiling level unless in accordance present in the water.
- Page 11 Outlet Supply Mains Water Supply *EPS recommends the use of a drip tray and insulation jacket with every installation Please note - Ball cock entry location (1) and tank overflow connection (4) can be modified to suit differing applications if required.
- Page 12 Bypass isolation valve Multiboost overflow Multiboost drain off Drip tray Drip tray overflow Overflow to drain from tank Overflow to drain from drip tray *EPS recommends the use of a drip tray and insulation jacket with every installation...
-
Page 13: Key Features
Key Features Key Features Pressure Vessel (Presflo Multi Version Only) Removal union to access flow valve Split union for easy maintainance Drip tray built in to mould (Selected models only) Presflo Multi Easy adjustable cut in pressure function Variable speed option available Vermin screen Ball cock unit &... -
Page 14: Drip Trays
Product Code: 1061457 has the capacity to handle an excess volume of water in the unlikely event of an overflow occuring. *All dimensions are for drip trays only. Tank not included. EPS recommends the use of a drip tray for each installation... -
Page 15: Electrical
In accordance with the latest IEE regulation, all electrical connections should be carried out by a qualifi ed electrician. The Multiboost must be earthed. EPS strongly recommends that an earth leakage circuit breaker (ELCB) is fi tted on the incoming electrical supply. - Page 16 Overflow to drain from drip tray Mains Water Supply 1. Ball cock Isolation valve with *EPS recommends the use of a drip tray and insulation jacket with every installation pressure gauge Bypass isolation valve 1. Ball cock Multiboost overflow Isolation valve with...
- Page 17 Incoming water pressure to Multiboost Multiboost cut in pressure Multiboost close valve pressure Print Name Signed: Position: Date: (Installer): Print Name Signed: Position: Date: (Engineer): QR CODES Installation O&M Unit Manual Video Schematics EPS recommends the use of a drip tray for each installation...
-
Page 18: Pump Type & Control Information
Pump Type & Control Information Maximum Operating Conditions Top Multi/ Top Multi Tech NK/UP Liquid Temperature +40°C +40°C Maximum Pressures 4.2bar 9.5 bar Noise Level of the Multiboost Set ≥48-55dB ≥48-55dB • The declared performances are valid for liquids with density 1,0 kg/dm and kinematic viscosity 1mm Pump Type Specifications Power... -
Page 19: Fixed Speed - Presflo Multi Controls
Fixed Speed - Presflo Multi Controls Configuration Fixed Speed Presflo Multiboost Manufacturer’s setting: Settable parameters: PRESFLO® is supplied with the following STANDARD CONFIGURA- Running pressure. TION: When the pressure in the system falls below the Pm, PRESFLO® Running pressure starts-up the pump. The Pm Pm = 2 ( bar ) should always be higher by at Max. -
Page 20: Presflo Multi
Presfl o Multi Troubleshooting Problems Signals Possible causes Solutions POWER ON No power Check the electrical connections PRESFLO®(Multi) will not turn on PUMP ON PRESFLO® model with an inad- Relocate PRESFLO® to another equate start-up pressure (Pm) position POWER ON for the chosen application PUMP ON Install a model with a higher start-up... -
Page 21: Presflo Vario
Variable Speed Controls For all Variable Speed confi gurations, see the Steadypres V2.0 control O&M manual for assistance which illustrates info step by step for Installation, Operation, Maintenance and Trouble Shooting. Contact EPS for further assistance if you require this detail. -
Page 22: Steadypres
Steadypres VSD Troubleshooting • Check that the inverter has been correctly connected to the power line (which is on) • Check that the motor pumps have been correctly connected to the inverter • Check that all the cables and connections are operative. PROBLEM The pump is not feed Message... - Page 23 Steadypres VSD Steadypres VSD OVER TEMP MODULE Module overheating due to overload check the pump load Check the integrity of the connection cable No communication between control board COM ERROR and connections; the power board could be and power board damaged Make sure there is water at suction or check LOW LEVEL...
-
Page 24: Anti Vibration Mat
Anti Vibration Mat Advantages of having an anti vibration mat The anti vibration mat is an additional aid available to installers & homeowners, who may have concerns over dB or vibration levels. Please note, when a pump is submerged in liquid, you are no longer dealing with decibel levels, but vibration levels, so the positioning of your Multiboost is vitally important. -
Page 25: Insulation Jacket - Foil Back
Advantages of using an insulation jacket EPS has created a number of insulation jackets for extra peace of mind. These jackets are made up of foil back insulation and are available in various sizes to suit our Multiboost range of tanks. -
Page 26: Insulation Jacket - Black
Advantages of using an insulation jacket EPS has created a number of insulation jackets for extra peace of mind. These jackets are made up of 80mm insulation and are available in various sizes to suit our Multiboost range of tanks. -
Page 27: Dimensions
Dimensions EPS - Tanks & Drip Trays EPS - Tanks & Drip Trays EPS - Tanks & Drip Trays STBL00200V 190mm Lid + 1" Connection Height: 1035mm STBL00300V EPS - Tanks & Drip Trays 190mm Lid + 1" Connection STBL00200V Height: 1422mm EPS - Tanks &... -
Page 28: Components
Components Pedrollo Top Multi 2 Pedrollo NKM 2/4 GE-N Pump › Multi Mini Splash Tray › Flow rate up to 80L/min › Flow rate up to 80L/min › Dimensions: 200mm x 760mm › Head pressure up to 4.2 bar › Head pressure up to 6 bar ›...
