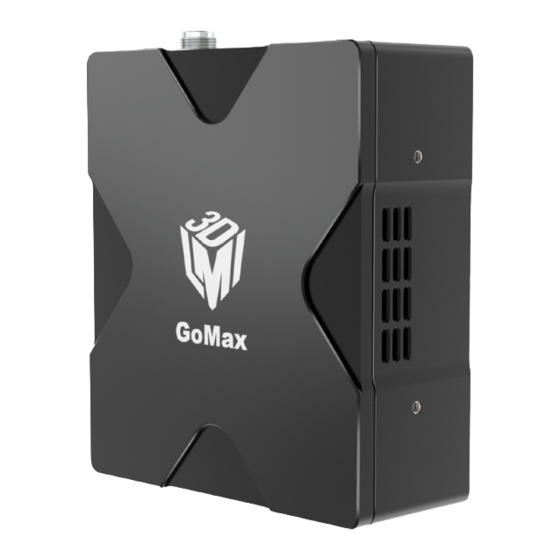

GoMax
Smart Vision Accelerator
Quick Start Guide
15257-01.00_MANUAL_Quickstart_GoMax

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart Vision and is the answer not in the manual?

Questions and answers

Summary of Contents for Gomax Smart Vision

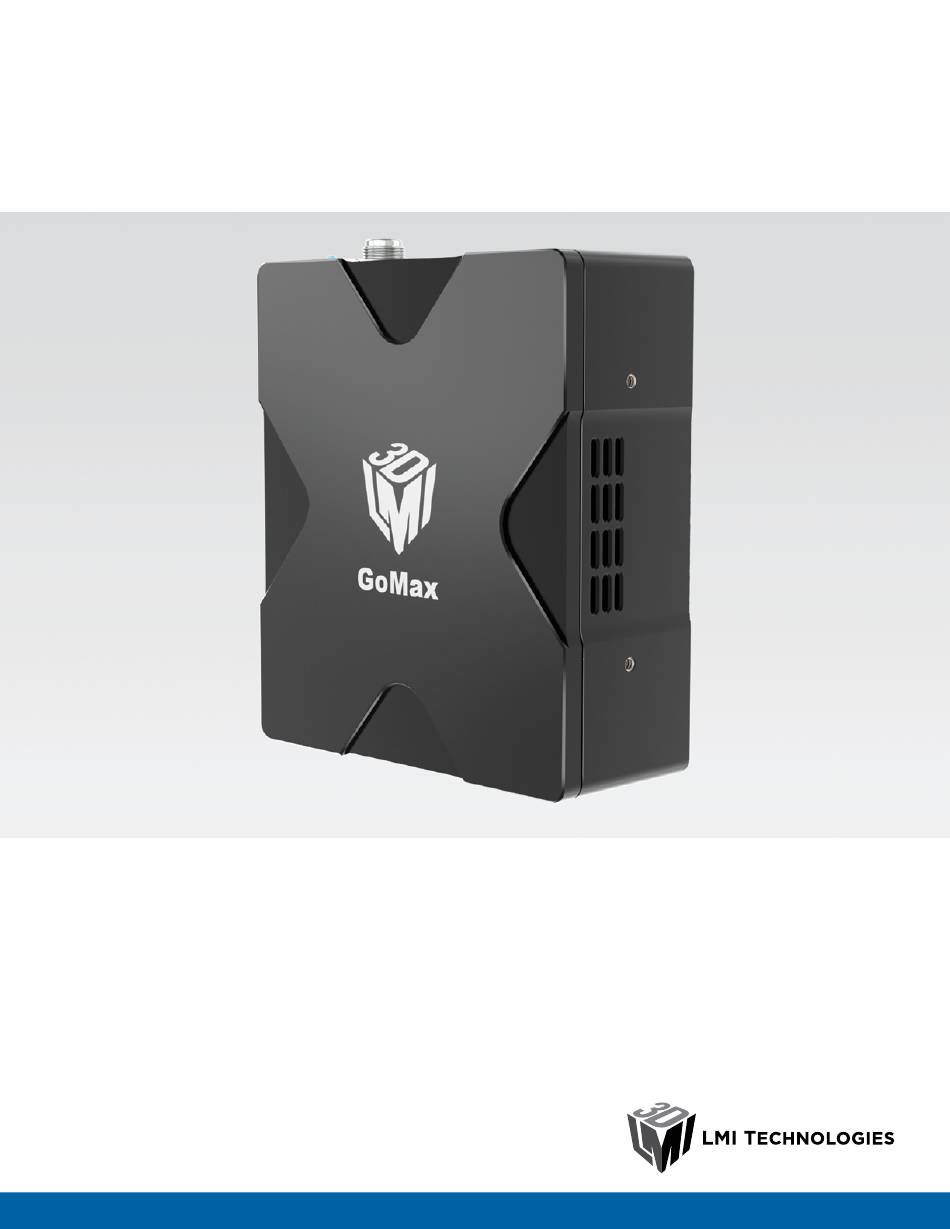

  • Page 1 GoMax Smart Vision Accelerator Quick Start Guide 15257-01.00_MANUAL_Quickstart_GoMax...
  • Page 2 Getting Started with the GoMax Congratulations on purchasing GoMax Smart Vision Accelerator. This Quick Start Guide provides you with the resources to get you started. Customer Support If you have any installation issues, please contact: AMERICAS LMI Technologies (Head Office)
  • Page 3 2, 3 Power supply and cord (plug depends on part number of the kit) DIN rail clips (x2) and screws (x4) Before connecting the GoMax unit to a sensor system, follow the instructions in “Connecting Power” and “Setting the IP Address”.

  • Page 4: Connecting Power

    Connecting Power To connect the power, do the following: 1. Connect the power supply connector to the unit and hand-tighten. 2. Plug the power adapter into an available electrical outlet. An LED indicator on the unit lights when power is applied.

  • Page 5: Setting The Ip Address

    Each GoMax unit and Gocator sensor on the sensor system network must have a unique IP address. By default, GoMax units are set to an IP address of 192.168.1.6. If this does not conflict with other GoMax units or Gocator sensors on the network, you can skip this section.
  • Page 6 The GoMax unit power cycles after you confirm you want to do this. Changing network settings stops the acceleration of any accelerated sensors. After the GoMax unit restarts, its IP address is changed to the specified address. Use this address to access the unit.
  • Page 7 (smaller vent at the top) in the following illustration: You can also mount the GoMax unit directly to a frame. All mounting holes are specified as M4X0.7 - 6H, with a thread depth of 3.65 mm. The same recommendations for orientation and mounting...
  • Page 8 Connecting to a Sensor System You must connect GoMax to a sensor system through the Gigabit switch the sensor is connected to. Connect GoMax to the switch using an Ethernet cable and the ETH 1 port on the GoMax unit. NOTE: Before connecting GoMax to a sensor system, make sure that it has a unique IP address (see “Setting the IP Address”...
  • Page 9 Using GoMax To accelerate a sensor, do the following: 1. Connect a computer to the switch using an Ethernet cable.
  • Page 10 2. On the computer, using a web browser, connect to the GoMax web interface using the unit’s IP address. The GoMax web interface is displayed. The Sensor System category is preselected in the Manage panel.
  • Page 11 A page providing a link to the accelerated sensor’s web interface opens in a new tab. Configure the sensor as you normally would. For information on configuring a sensor, see the sensor’s user manual. For more information on using GoMax, see the GoMax user manual.
  • Page 12 LMI Technologies, their partners, and resellers accept no liability for any damages (personal or to property) incurred as a result of improper use, incorrect assembly, failure to adhere to safety precautions, and/or mistreatment of this product (including its components). Copyright © 2018 LMI Technologies Inc. All rights reserved.
