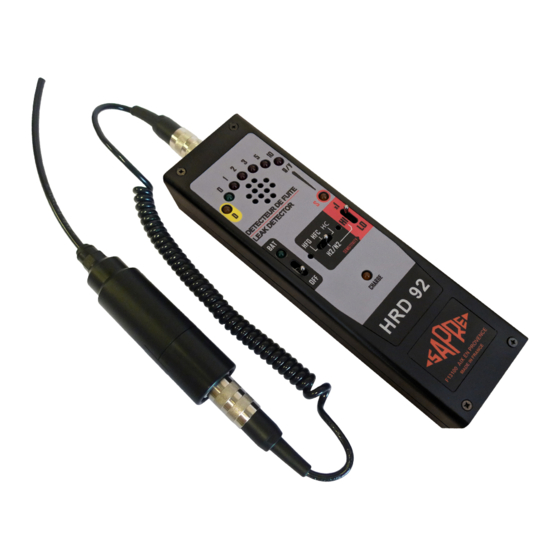

Vulkan HRD 92 S.C User Manual

Leak detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
FR
HRD 92 S.C
USER MANUAL
EN
HRD 92 S.C
PAGE | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRD 92 S.C and is the answer not in the manual?

Questions and answers

Related Manuals for Vulkan HRD 92 S.C

Summary of Contents for Vulkan HRD 92 S.C

  • Page 1 HRD 92 S.C USER MANUAL HRD 92 S.C PAGE | 1...

  • Page 2: Table Of Contents

    HRD 92 S.C TABLE OF CONTENTS PRESENTATION ........................15 TECHNICAL CHARACTERISTICS ................... 15 SPECIFICATION ACCORDING TO NF EN 14624 STANDARD ..........16 GENERAL SAFETY INSTRUCTIONS ..................16 PRECAUTIONS OF USE ......................17 DESCRIPTION OF THE DEVICE ....................18 DETECTOR’S MODULES ........................18 FRONT PANEL OF THE BOX ......................

  • Page 3: Presentation

    We advise you to read this manual carefully , so that you can make the best use of the detector's features , and avoid false manipulations that may damage it. VULKAN is at your disposal for any further information .

  • Page 4: Specification According To Nf En 14624 Standard

    HRD 92 S.C Carrying Case Detector delivered in carrying case with a 110/220v charger & Instruction for use SPECIFICATION ACCORDING TO NF EN 14624 STANDARD The HRD 92 gas detector complies with standard NF EN 14624 which determines the following...

  • Page 5: Precautions Of Use

    • Accessories / Spare Parts : Only use accessories and spare parts from the manufacturer. Do not dispose of your electronic device with household waste. Return it to VULKAN Company at the end of its useful life. In accordance with Directive 2002/96 / EC on WEEE, we provide separate collection for environmentally friendly treatment.
  • Page 6 HRD 92 S.C In case of large leaks, do not leave the detector on the point of leakage, which saturates the cell and can reduce its sensitivity. • The detector is a measuring device and must be handled as such. He fears violent shocks, corrosive or salty atmospheres.

  • Page 7: Description Of The Device

    HRD 92 S.C DESCRIPTION OF THE DEVICE DETECTOR’S MODULES The device is delivered in plastic suitcase, with wedging foam including : • The detector housing includes the battery packs and the processing electronics. • A Detection Block with quick release, connected by cable to the housing and...

  • Page 8: Start Up & Use

    HRD 92 S.C One Lighted display with from left to right : • ORANGE light « D » : WAIT function during warm-up period : WAIT function during degassing period • GREEN light « 0 » • RED lights « 1, 2 ,3 ,5, 10 » : Indicating the leak level after calibration of the Detector.

  • Page 9: Calibration

    HRD 92 S.C CALIBRATION The detector is calibrated on delivery. Initial Calibration can be changed by opening the Detector cabinet and should only be performed by a qualified person with the necessary equipment. START UP The Detector is designed for the detection of refrigerant gas leaks by sniffing at atmospheric pressure.
  • Page 10 HRD 92 S.C The detection response time is less than the second. The operator must wait, for each point to control, the time necessary for a possible detection. • For quick response and good detection, the sniffer probe should be as close as possible to the leakage point to be controlled.

  • Page 11: Adjusting The Sensitivity And The Type Of Gas

    HRD 92 S.C ADJUSTING THE SENSITIVITY AND TYPE OF GAS • ADJUSTING THE SENSITIVITY : using the Sensitivity Inverter > UP position « x1 » Normal sensitivity. Estimated reading of the value of the leak on the graduated ramp > CENTRAL position « HI » Sensitivity 3 times stronger Reading on the graduated ramp 0.3, 0.6, 1, 1.5, 3 g/year...

  • Page 12: Zero & Ambient Contamination

    HRD 92 S.C ZERO & AMBIENT CONTAMINATION • The detector automatically adjusts its ZERO according to the ambient conditions. The detector's automatic zeroing allows leak detection in contaminated conditions • However, contamination always produces a 'masking' effect on leaks and it should be limited as much as possible.

  • Page 13: Power & Battery Recharging

    • As part of the Quality Assurance standards, we recommend that you carry out an annual audit at the Vulkan manufacturer, which will draw up a verification report in accordance with the EN 14624 standard valid for one year.

  • Page 14: Operating Anomalies

    HRD 92 S.C OPERATING ANOMALIES The main defect of the detector is a long response time following the detection of a leak. It can be due to several factors: • Check for clogging of the pipe or filter (main factor).

  • Page 15: Maintenance & Guarantee

    BATTERY REPLACEMENT The replacement of the battery pack is done by opening the case of the detector. Only one VULKAN battery pack must be used. Remove the 4 screws from the box Unscrew the wires from the old battery block of the battery terminal block Screw the wires of the new battery pack in the correct polarity : Red wire>...

  • Page 16: Current Maintenance Parts

    HRD 92 S.C CURRENT MAINTENANCE PARTS Références Spare parts available on order S92-BSD-R Detection Block Refrigerants Gas, directly interchangeable. (Detection block delivered with flexible sniffing pipe + 10 Filter). S92-BSD-H2N2 Specific detection block H2 / N2, directly interchangeable. (Detection block delivered with flexible sniffing pipe + 10 Filter).

  • Page 17: Maintenance

    - Crushing, pull off, obstruction of the sniffing pipe. The guarantee is strictly limited to the repair of the detectors, the supplier who cannot be, in no case, held responsible for the direct or indirect consequences of the use of VULKAN material.
