Summary of Contents for Stage Accompany GL15

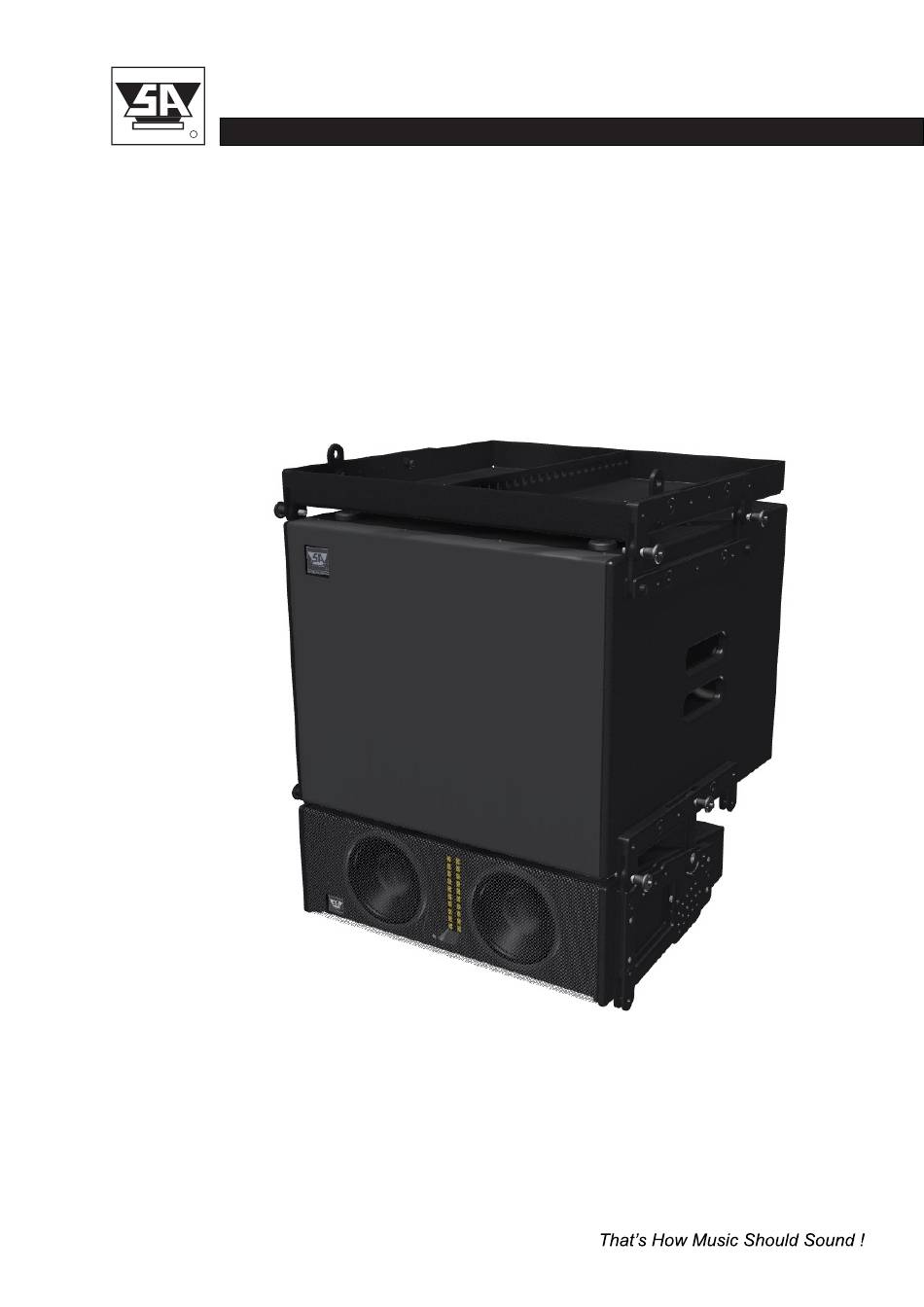

- Page 1 GL15 / GL23 USER MANUAL stage accompany GL15 / GL23 COMPACT LINE-ARRAY User Manual Version 1.0...
- Page 2 First printing, June 2020 Printed in The Netherlands This manual is intended to provide information about the Stage Accompany GL15 and GL23. Every effort has been made to make this manual complete and as accurate as possible. However no warranty of suitability, purpose, or fitness is implied. The information is provided on an “as-is“...
- Page 3 GL15 / GL23 USER MANUAL stage accompany Introduction Important safety instructoins Installation Rigging components Array configurations Service and support CE declaration of conformity Warranty...
- Page 4 The rigging system has a working load limit of 14x GL23 or 8 GL15 cabinets under 10:1 safety. For combinations of cabinets please refer to the GL23 pointer.
- Page 5 Do not stack the loudspeaker array on unstable ground or surface. If the array is stacked on a structure, platform or stage always check that the latter can support the total weight of the array. As a general rule Stage Accompany recommends the use of safety straps at all times.
- Page 6 Unpacking Carefully open the shipping carton and inspect all the parts. Every Stage Accompany product is thoroughly tested and inspected before leaving the factory and should arrive in perfect condition. If you find any damage notify the shipping company immediately. Only you, the consignee, may initiate a claim for shipping damage.
- Page 7 GL15 / GL23 USER MANUAL stage accompany Rigging components GL23 loudspeaker 1. GL23 cabinet 1. GL23 cabinet 2. Front coupler 2. Front coupler, lockable with quick release pin 3. Pin angle setting 3. Pin determines the angle between the cabinets 4.
- Page 8 GL15 / GL23 USER MANUAL stage accompany Rigging components GL15 loudspeaker 1. GL15 cabinet 1. GL15 cabinet 2. Upper coupler frame 2. Couplers, lockable with quick release pin 3. Lower coupler frame 3. Couplers, lockable with quick release pin 4. Bar handles 4.
- Page 9 The flying bumper can be suspended from the central „single pick-point“ bar (Ø15mm / 0.6-in.) or supported by two front located tilt adjusters. The Flying bumper GL15/GL23 is certified for a safety-rating of 10:1, for fourteen (14) GL23 cabinets or eight (8) GL15 cabinets.
- Page 10 Use 1 or 2 pick points from the P1 "pick point bar“ linear pattern. 1x P1 pick point carries the maximum of 14x GL23 or 8x GL15 cabinets. Or GL23 and GL15 combined with a max. weight of 250kg.
- Page 11 The picture below this text shows a GL15 connected to the Flying bumper GL15/GL23 in fly mode operation. In this situation the 4 to the GL15 cable attached quick relase pins “Q“ needs to be plugged into the intended flying points.
- Page 12 Array configurations GL15 connection The GL15 can be added as a bass extension to a GL23 array. This cabinet is flown directly under the flying bumper GL15/GL23. When turned upside down with the rubber feet on the ground a GL23 array can be stacked on top. (max. 6 pcs.) The connection between 2 GL15 cabinets needs to be done like shown on the picture below connected by 2 quick release pins (Q) at each side.
- Page 13 This description features a GL15 ground support with a GL23 line-array cabinet. The maximum allowed number of cabinets in ground stacked mode is 6 pcs. mounted to the GL15. Make sure that the array is assembled on a flat and stable surface Start by positioning the GL15 in groundstack mode with the rubber feet onto the ground.
- Page 14 The warranty period on all Stage Accompany products is five years from the date of the first consumer purchase, with the exception of: •...
- Page 15 GL15 / GL23 USER MANUAL stage accompany Service and support Contact information Mailing address: Stage Accompany BV Haven 28 2984 BR Ridderkerk The Netherlands Telephone: +31 (0)180 426 225 Website: https://www.stageaccompany.com E-mail: info@stageaccompany.com...
- Page 16 GL15 / GL23 USER MANUAL stage accompany EC declaration of confirmity Stage Accompany BV Haven 28 2984 BR Ridderkerk The Netherlands States that the following products of the following EC directives and mendments: Machinery 2006/42/EC and the national laws to enforce this directive,...
