ATC PACIFIC WATER HEATING
INSTALLATION AND OPERATION MANUAL
W5-u

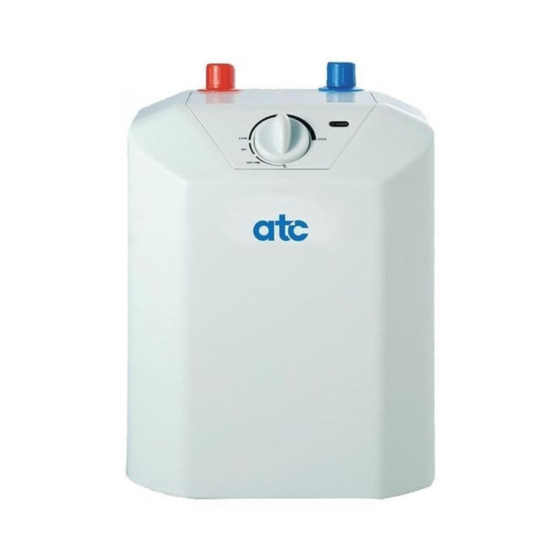

5 Litre Undersink water heater
W10-u
10 Litre Undersink water heater
W15-u
15 Litre Undersink water heater
ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland
IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie
5 Litre heater
-1-
ATC Electrical & Mechanical,
10 and 15 Litre heaters

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W5-u and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATC W5-u

  • Page 1 ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie ATC PACIFIC WATER HEATING INSTALLATION AND OPERATION MANUAL W5-u 5 Litre Undersink water heater W10-u 10 Litre Undersink water heater...
  • Page 2 ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie IMPORTANT SAFETY INSTRUCTIONS-READ BEFOR USING THIS WATER HEATER 1. This water heater must be earthed. 2. Locate & install this water heater only in accordance with the provided installation instructions.
  • Page 3: Technical Specifications

    Full 16.5 * The ATC Pacific water heaters are supplied with Adhesive rubber pads to mount on the bottom of the heater to allow them to stand rather than be wall mounted. NOTE: The installer should review the contents of this manual with the owner on com-...
  • Page 4: General Wiring Diagram

    ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie GENERAL WIRING DIAGRAM HEATER MOUNTING INSTRUCTIONS The water heater should be installed close to a water drainpipe so that excess water from the safety relief valve can drain away without harm;...
  • Page 5: Water Pipe Connections

    ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie WATER PIPE CONNECTIONS All water connections to the heater must be made in copper pipe. If using Qualpex or similar plastic piping method then a minimum of one metre of copper pipe must be installed between the heater and the plastic piping system.
  • Page 6: Closed System/Thermal Expansion

    ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie For Inlet water pressure up to 4.1 bar where expansion in the mains is not Pressure Release possible . Valve Supplied...
  • Page 7: Electrical Connection

    A 2 Ltr. Expansion vessel (Kit-A) and a Pressure Reducing Valve (Kit-B) are also avail- able as optional accessories. ELECTRICAL CONNECTION All ATC Pacific water heaters come pre-wired with 1.5mm 2 core and earth. The heater should be connected by a suitably qualified electrician in accordance with IEE wiring regulations.
  • Page 8 ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie opening the service valve, open the service valve until constant water flows from the hot outlet. Once water is flowing, close the hot water tap. Failure to carry out this step can crack the lining of the heater and result in leaks.
  • Page 9 ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie the element well with fresh water, OR, 3. Once the element has dried up, use a soft brush (nonmetallic to prevent damaging the stainless-steel sheath) on element, and brush the dried mineral off.
  • Page 10: Troubleshooting

    ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie 5 Litre Hi Level Reset 10 and 15 Litre Hi Level Reset To reset the High Level Thermal cutout: 1. IMPORTANT: Disconnect heater from electrical power.
  • Page 11: Warranty

    WARRANTY ATC Electrical and Mechanical provides a two year limited parts warranty for the ATC Pacific water heaters as long as the unit has been installed, used and maintained in ac- cordance with the information provided in this manual. For full terms and conditions of sale and warranty please see www.atc.ie.
  • Page 12 ATC Electrical & Mechanical, ATC House, Broomhill Drive, Tallaght, D24 EF99, Ireland IE: 01 4678301, UK:0203 564 9164, Email sales@atc.ie ERP RATING INFORMATION Model W5-U W10-U W15-U Storage volume (V) Declared load profile Water heating energy efficiency class Water heating energy efficiency (η...
