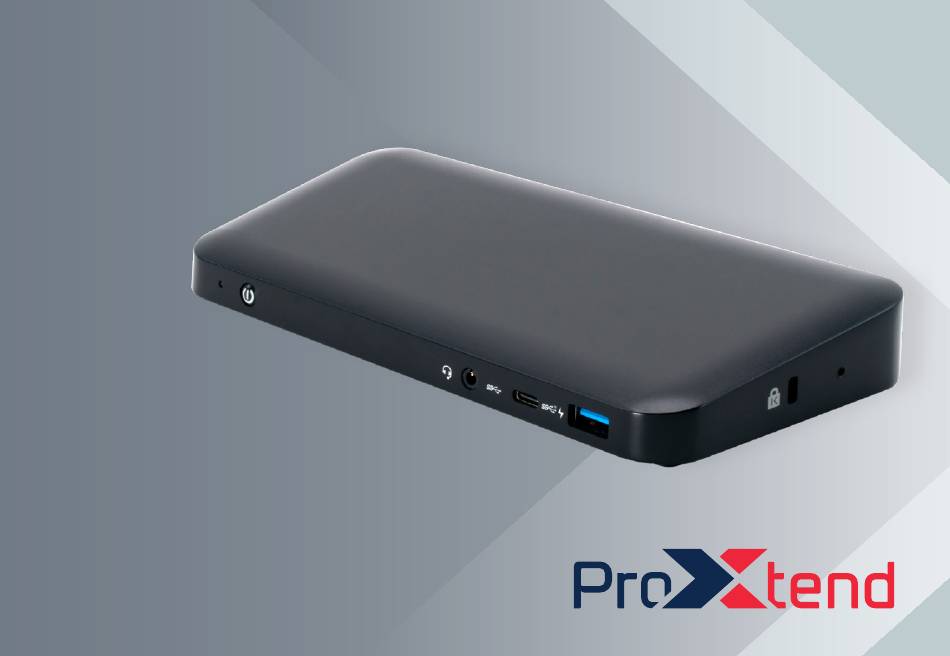

- Page 1 USB-C DP1.4 MST Dock User Manual...
-
Page 2: Safety Instructions
Safety Instructions Always read the safety instructions carefully • Keep this User Manual for future reference • Keep this equipment away from humidity • In any of the following situations, get the equipment checked by a service technician: - The equipment has been exposed to moisture. - The equipment has been dropped and damaged. - Page 3 Before attempting to connect, operate or adjust this product, please read the User Manual. The USB-C DP1.4 MST Dock is designed for extra connectivity demands and sup- ports DP 1.4 output. With the Docking station, you can extend the connection of a computer to more USB peripherals, Ethernet network, the combo audio via USB-C interface.
-
Page 4: Package Contents
Features Package Contents • USB-C Input • USB-C DP1.4 MST Dock USB-C 3.1 Gen 2 port • USB-C Cable Upstream PD powered, supports up to 85W • Power Adapter Supports VESA USB Type-C DisplayPort Alt mode • User Manual • Downstream Output 2 x USB-A 3.1 Gen 2 ports (5V/0.9A) -
Page 5: Product Overview

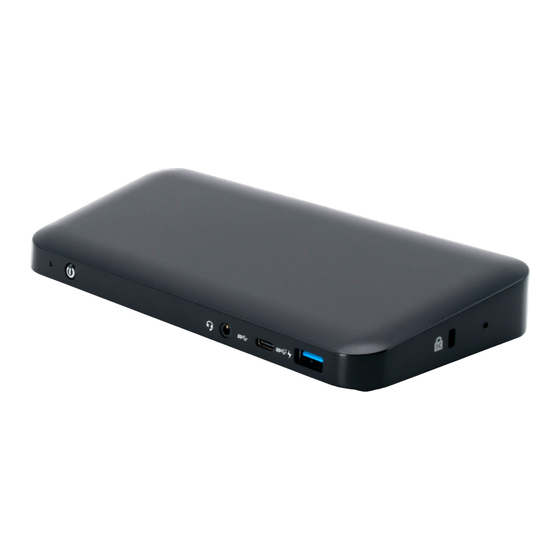

Product Overview FRONT 1. Power button Switch to power on /off 2. Combo Audio Jack Connect to a headset SIDE 3. USB-C port Connect to USB-C device only 4. USB-A Port Connect to USB-A devices with BC 1.2 charging and Apple charge 1. - Page 6 Product Overview REAR 1. Power jack Connect to power adapter 2. USB-C port Connect to the USB-C port of a computer 3. DP connector(x2) Connect to a DP monitor 4. HDMI connector Connect to HDMI monitor 5. RJ45 port Connect to an Ethernet 6.
- Page 7 Connection To connect the USB peripherals, Ethernet, speaker and microphone, follow the illustrations below to connect the corresponding connectors. DP Monitor x 2 4096x2160@60Hz USB-C: Power HDMI Monitor and charge your 3840x2160@30Hz laptop Power USB-A3.2 Gen 1 devices button USB-A3.2 Gen 1, Ethernet BC 1.2 and Apple charge...
-
Page 8: Specifications
Specifications User Interface Upstream USB-C female connector Downstream DP 1.4 female connector x2 HDMI 2.0 female connector x1 USB 3.1 female connector x4 (3A1C), one port supports BC 1.2/CDP & Apple charge RJ45 connector x1 Combo Audio Jack (IN/OUT) x1 Video Resolution Single display, either one... -
Page 9: Fcc Conditions
Regolatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received and include interference that may cause undesired operation.
