Summary of Contents for Buf Technology ShowCase 3264

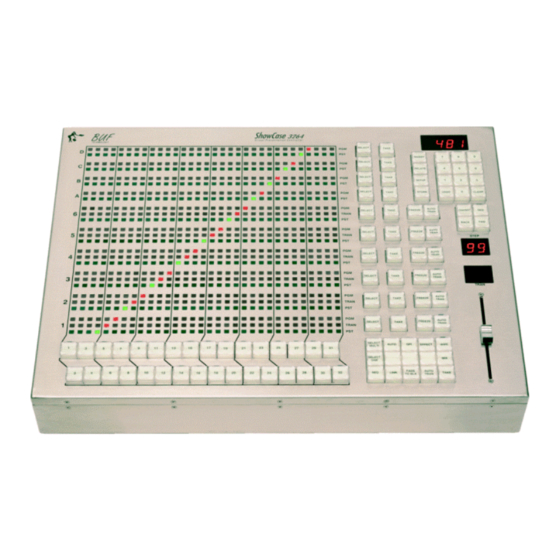

- Page 1 ShowCase 3264 Visual Presentation Controller VERSION: 010905 B U F T e c h n o l o g y , 1 2 3 3 5 W o r l d T r a d e D r i v e , S u i t e 1 1 , S a n D i e g o , C A...
-
Page 2: Table Of Contents
FCC RADIO FREQUENCY INTERFERENCE STATEMENT ................3 WARRANTY STATEMENT............................. 3 IMPORTANT NOTES:............................. 3 OVERVIEW ................................3 PHYSICAL................................3 INSTALLATION ..............................3 SHOWCASE 3264 CONTROL SYSTEM........................ 4 OPERATION................................. 5 M/E MIX/EFFECTS OUTPUTS ..........................5 AUX AUXILIARY OUTPUTS ..........................5 KEYPAD.................................. 5 CHANNEL SELECTION ............................5 INPUT SELECTION .............................. -
Page 3: Introduction
INSTALLATION The ShowCase 3264 panel should be placed on a firm surface in a location that does not restrict air flow from the bottom and sides of the panel and allows adequate room to make rear panel connections. See SPECIFICATIONS... -
Page 4: Showcase 3264 Control System
Version: 010905 ShowCase 3264 MANUAL Page 4 of 12 SHOWCASE 3264 CONTROL SYSTEM... -
Page 5: Operation
Version: 010905 ShowCase 3264 MANUAL Page 5 of 12 OPERATION M/E MIX/EFFECTS OUTPUTS In this manual, the Folsom VFC-2200 dual video format converters are referred to as Mix/Effects or M/E units. This is because they are capable of performing mixing and wiping between inputs, and because effects (resizing, positioning, etc.) can be used. -
Page 6: Freezing Inputs
Version: 010905 ShowCase 3264 MANUAL Page 6 of 12 FREEZING INPUTS Input video can be frozen in the format converter by pressing the FREEZE key. Normally, the PST video is frozen, but if an M/E SELECT key is held in while pressing its FREEZE key, the PGM video is frozen instead. While the PST video is frozen, the FREEZE lamp lights. -
Page 7: Effects
Version: 010905 ShowCase 3264 MANUAL Page 7 of 12 1 = RIGHT/LEFT (normal/reverse) 2 = LEFT/RIGHT (normal/reverse) 3 = RIGHT 4 = LEFT 5 = DOWN/UP (normal/reverse) 6 = UP/DOWN (normal/reverse) 7 = DOWN 8 = UP 9 = CURTAIN OPEN/CLOSE (normal/reverse) -
Page 8: Pan & Zoom
Version: 010905 ShowCase 3264 MANUAL Page 8 of 12 PAN & ZOOM The PAN & ZOOM key enables or disables PAN & ZOOM on all selected M/Es PST inputs. If PAN & ZOOM is already enabled on any selected M/E, all are disabled, otherwise all are enabled. When PAN & ZOOM is enabled on any selected M/E, the PAN &... -
Page 9: Setup Modes
Version: 010905 ShowCase 3264 MANUAL Page 9 of 12 SETUP MODES The SETUP key is used to put the panel in one of several setup modes. Setup modes are used to adjust various system settings. Enter a setup mode number on the KEYPAD, press STORE, then press SETUP. While in a setup mode, the SETUP key lights and THE PANEL WILL NOT OPERATE NORMALLY! The setup mode must be exited by using either the SETUP or UNDO keys before any normal panel operation can be performed. -
Page 10: Upper Edge
Version: 010905 ShowCase 3264 MANUAL Page 10 of 12 8 = UPPER EDGE Press the 2 key to use the FADER to adjust the upper edge of the raster. Set the raster to the point where you lose a row of pixels on the top, then just get it back. -
Page 11: Specifications
Version: 010905 ShowCase 3264 MANUAL Page 11 of 12 SPECIFICATIONS DIMENSIONS (APPROXIMATE) H/W/D: 3.5 X 21 X 16 INCHES (9 X 54 X 41 CM) WEIGHT (APPROXIMATE) 25 lbs. (11.4 kgr.) POWER REQUIREMENTS 85-264VAC @ 47-440HZ OR 110-370VDC LESS THAN 2.0A... -
Page 12: Specifications (Continued)
Version: 010905 ShowCase 3264 MANUAL Page 12 of 12 SPECIFICATIONS (CONTINUED) GPI/GPO - DB9F RESERVED FOR FUTURE USE 1 - GPI9 GPI INPUT IS PULLED TO +5VDC THROUGH 10K RESISTOR 2 - GPI10 GPI9-GPI12 CAN TOLERATE SUSTAINED EXTERNALLY APPLIED 3 - GPI11...
