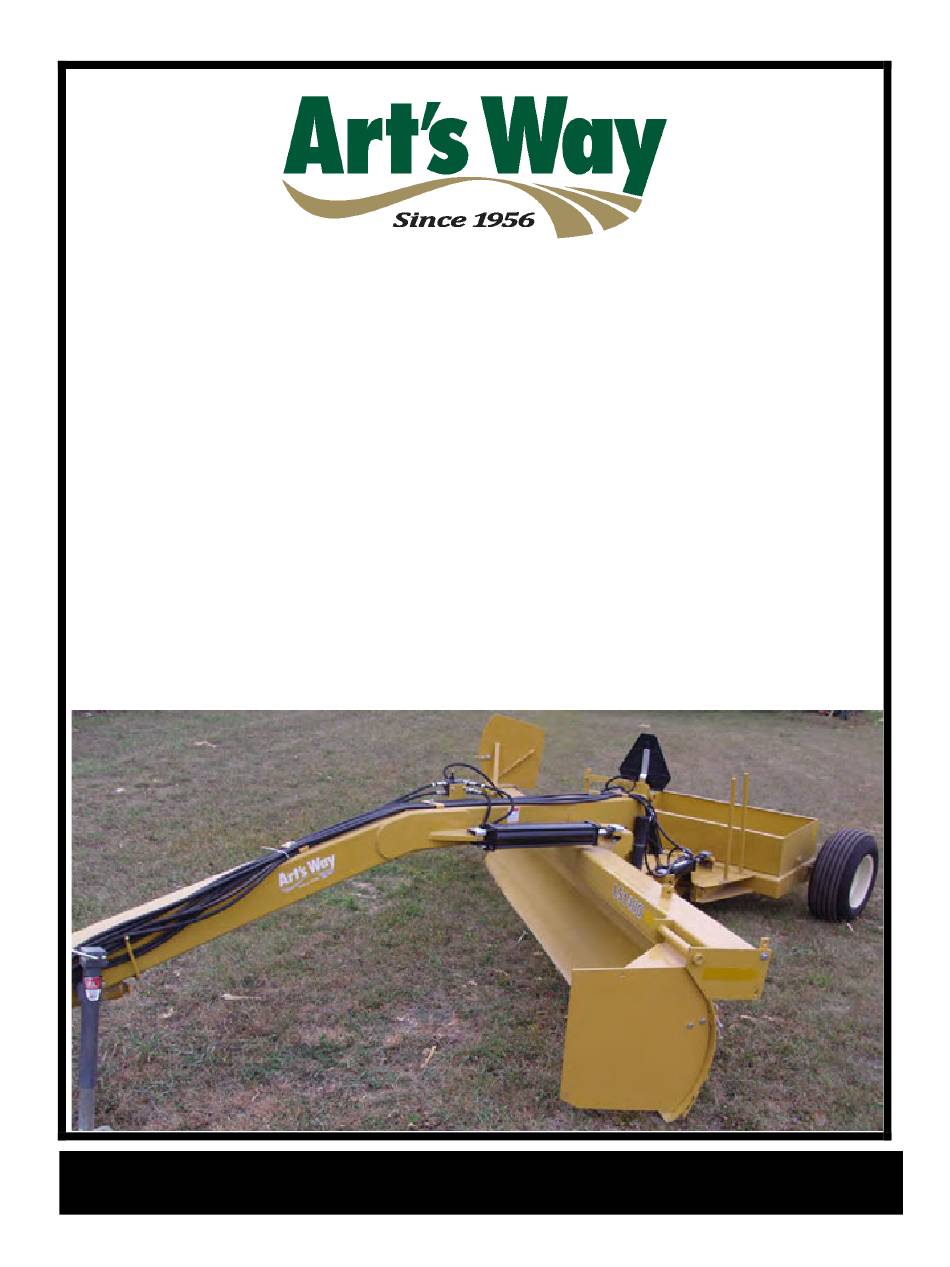

- Page 1 LS900R, LS1200R, LS1400R, and LS1600R Rear Steer Grader Illustrated Parts List Set Up and Operating Instructions Art's-Way Manufacturing Co., Inc. 592010 08/20...
-
Page 3: To The Owner
TO THE OWNER Congratulations on the purchase of your new Art's-Way Grader. You have selected a top quality machine that is designed and built with pride to ensure that you have many years of efficient, reliable service. Even if you are an experienced operator of this or similar equipment, we ask that you read the Operating Instructions before using this grader. -
Page 4: Parts And Service
PARTS AND SERVICE As the new purchaser of your Grader, it is very important to consider the following factors: A. Original Quality B. Availability of Service Parts C. Availability of adequate Service Facilities Art's-Way Manufacturing Co., Inc. has an excellent dealership network ready to answer any questions you may have about your grader. -
Page 5: Table Of Contents
TABLE OF CONTENTS To The Owner ............................iii Parts and Service ..........................iv Table of Contents ........................... v Safety First ............................vii ................................EFORE PERATION VIII ................................URING PERATION VIII ................................ AINTENANCE AFETY VIII ................................YDRAULIC AFETY VIII ..............................RANSPORTATION AFETY .................................. -
Page 7: Safety First
SAFETY FIRST Accidents can be prevented if the operator: • Fully understands how the machine functions • Knows the precautions and observes them • Is careful to consider the safe action at all times. Take note! This Safety Alert Symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. -
Page 8: Before Operation
CAUTION: Remember, a careful • Do not allow riders while the grader is in operator is the best insurance against operation. an accident. • Do not attempt to lubricate, repair or adjust CAUTION: Read and Understand the the grader while the tractor is running. Operating Instructions and all the •... -
Page 9: Transportation Safety
Storage Safety system operates under extremely high pressure and temporary repairs may fail • Store the grader in an area away from human suddenly and create a hazardous situation. activity. • Wear proper hand and eye protection when • Do not permit children to play on or around searching for a high-pressure hydraulic leak. -
Page 10: Illustrated Parts List
Illustrated Parts List • The ITEM figure corresponds to the number shown in the illustration. • Numbers listed in the PART NO. column are the numbers under which the parts are manufactured and by which the parts are identified by the manufacturer. •... -
Page 11: Alphanumeric Index
Alphanumeric Index 003350 ........12, 23 510100 .........14 LS2000029 ........25 003950 ........14 511000 ......... 16, 25 LS4000001 ......12, 25 005200 ........17 511010 .........16 LS4000027 ......14, 22 005360 ........17 511020 .........16 LS4000028 ......14, 22 005370 ........ -
Page 12: Grader Hardware Assembly
GRADER HARDWARE ASSEMBLY Hardware Kit 592450... -
Page 13: Grader Hardware Assembly Continued
GRADER HARDWARE ASSEMBLY Hardware Kit 592450 ITEM PART NO. QTY. DESCRIPTION J19H2969 Bolt, HHCS 5/8-11 x 3-1/2 Gr5 Zn J19H3170 Bolt, HHCS 5/8-11 x 4-1/2 Gr5 Zn I19508R1 Nut, Lock 5/8-11 Gr5 Zn R18660 Pin, Snapper 5/16 x 2-3/4 J34H334 Pin, Roll 5/16 x 2 990720 Washer, Flat 1.0 Std... -
Page 14: Grader Frame Assembly
GRADER FRAME ASSEMBLY Basic Unit 592400... -
Page 15: Grader Frame Assembly Continued
GRADER FRAME ASSEMBLY Basic Unit 592400 ITEM PART NO. QTY. DESCRIPTION LSGRA2056 Frame Wldt, Center Pivot LSGRA2057 Shaft, 2-1/2 x 21-3/4 LS4000028 Cylinder, Hydraulic Tilt, 4 x 8 581370 Seal Kit, 4” Cylinder (4C4507) LS4000228 Cylinder, Hydraulic Pivot, 4 x 24 581370 Seal Kit, 4”... -
Page 16: Rear Frame Assembly
REAR FRAME ASSEMBLY Sandbox and Running Gear 592410 ITEM PART NO. QTY. DESCRIPTION G146711 Bolt, HHCS 3/4-10 x 6 Gr8 JN135098 Nut, Hex 3/4-10 Gr8 036800 Washer, Lock 3/4 LSGRA2055 Frame Wldt, Rear Grader LSGRA1970 Hub & Axle Assembly, 6-Bolt LSGRA1885 Box Weldment, Sand 438880... -
Page 17: Moldboard Assembly
MOLDBOARD ASSEMBLY 9’ - 511000, 12’ - 500670, 14’ – 500850, 16’ - 583780 ITEM PART NO. LS900 LS1200 LS1400 LS1600 DESCRIPTION LS4000125 Edge, Cutting 6’ LS4000126 Edge, Cutting 7’ (shown) 583360 Edge, Cutting 8’ 511020 Edge, Cutting 9’ 500550 Bolt, Plow 5/8-11 x 2 Gr.8 020440 Washer, Lock 5/8... -
Page 18: Box End Set Assembly
BOX END SET ASSEMBLY Right and Left Sides LS2000019 ITEM PART NO. DESCRIPTION J14H805 Nut, Hex 1-8 Gr5 014770 Bolt, HHCS ½-13 x 1-½ Gr5 005370 Washer, Lock ½ 005200 Washer, Flat ½ 005360 Nut, Hex ½-13 Gr5 LSGRA1941 Bracket, Box End LSGRA1784 Pin Wldt, Box End 500730... -
Page 19: Wheel & Axle Assembly
WHEEL & AXLE ASSEMBLY ITEM PART NO. Grader Rear Gage Wheel DESCRIPTION Steer QTY LSGRA1445 Axle Weldment, Grader 129810 Seal, 2.00 x 3.62 x .250 U51100008 Hub, w/ Cups 6 Bolt 10 Ton 129800 Cone, Bearing 1.38 ID 129790 Cone, Bearing 1.80 ID I131018 Washer, Flat 15/16 x 1-¾... -
Page 20: Wheel Assemblies
WHEEL ASSEMBLIES Wheel & Tire Assembly 11L-15 3-Rib Bias Steer-592460 ITEM PART NO. QTY. DESCRIPTION 592470 Tire, 11L-15 8-Ply 3-Rib Bias Steer U51900004 Rim, 10 x 15 6 Bolt 164420 Stem, Valve Core & Cap Wheel & Tire Assembly 11L-15 Implement-500770 ITEM PART NO. -
Page 21: Blank Page
THIS PAGE LEFT INTENTIONALLY BLANK... -
Page 22: Hydraulic Assembly
HYDRAULIC ASSEMBLY... -
Page 23: Hydraulic Assembly Continued
HYDRAULIC ASSEMBLY ITEM PART NO. DESCRIPTION LS5000027 Fitting, 90 Deg. 3/4 OR x 3/8 NPSM LS5000033 Fitting, Straight 1/2 NPSM LS5000063 Fitting, Tee 1/2 NPT Branch I1272770C2 Coupling, Pioneer Nipple 1/2 NPT U50300372 Hose, 3/8 x 120 w/ 1/2 NPT LS5000459 Hose, 3/8 x 196 w/ 3/8 NPT x 1/2 NPT LS5000460... -
Page 24: Blade Gauge Wheel Assemblies
BLADE GAUGE WHEEL ASSEMBLIES Right Gauge Wheel Option-LS2000018 (Shown) and Left Gauge Wheel Option-LS2000017 ITEM PART NO. Right Hand Left Hand DESCRIPTION LS2000018 LS2000017 LSGRA1593 Bracket Wldt, RH Gauge Wheel (Shown) 502550 Bracket Wldt, LH Gauge Wheel LSGRA1594 Arm Wldt, Gauge Wheel 500770 Wheel &... -
Page 25: Decal Locations
DECAL LOCATIONS Decal Kit-500790 LS1200 ITEM PART NO. LS900 LS1200 LS1400 LS1600 DESCRIPTION E224138 Decal, SMV on Plate 346310 Decal, Warning High Pressure Fluid 476450 Decal, Red Retro-reflective 476460 Decal, Yellow Retro-reflective 511030 Decal, Grader LS900 493470 Decal, Grader LS1200 (shown) 493480 Decal, Grader LS1400 583790... -
Page 26: Set Up Instructions
SET UP INSTRUCTIONS Receipt Inspection for Complete Unit Below is a list of items that were shipped from the factory with your Art's-Way Rear Steer Grader. Actual receipt of parts depends on which model of Grader that was purchased. The company recommends that this listing be used as a checklist to insure that all parts have been received with your Grader. -
Page 27: Receipt Inspection For Kit
SET UP INSTRUCTIONS Receipt Inspection for Kit Below is a list of items that were shipped from the factory with your Art's-Way Rear Steer Grader Kit (P/N 592000). The company recommends that this listing be used as a checklist to insure that all parts have been received with your Rear Steer Grader Kit. -
Page 28: Grader Rear Steer Kit Assembly Illustration
SET UP INSTRUCTIONS GRADER REAR STEER KIT ASSEMBLY ILLUSTRATION Figure 3. Rear Steer Grader Kit New Hole Locations for Indicators. Item Qty. Part Number Description Steering Assembly, Rear Grader 592460 Wheel and Tire Assembly 592130 Pin, Pivot Rear 1-1/2” x 27-1/2” 592240 Indicator Wldt, Steering 592330... -
Page 29: Rader Ear Teer It Ssembly Llustration Continued
SET UP INSTRUCTIONS GRADER REAR STEER KIT ASSEMBLY ILLUSTRATION Figure 4. Rear Steer Grader Kit Assembly... - Page 30 SET UP INSTRUCTIONS Set Up and Assembly of Rear Steer Grader Kit CAUTION: Follow the Assembly Safety items found in the Safety The Art's-Way Rear Steer Grader Kit is section of this manual. Use floor jack shipped partially assembled from the factory. or overhead hoist as parts are heavy.
-
Page 31: Preparation For Operation
SET UP INSTRUCTIONS Preparation for Operation Follow these step-by-step instructions and guidelines to prepare the grader safely and efficiently for operation: • Fill the hydraulic system completely with hydraulic fluid and bleed free of all air. Smooth operation of the systems depends on a system completely purged of air. -
Page 32: Operating Instructions
Rear Steer Grader • The steering cylinder will allow the rear The rugged Art's-Way Rear Steer Grader frame assembly to pivot 29 º left or right, Model LS900R, LS1200R, LS1400R, or extending the reach of the grader blade by LS1600R been engineered slightly over 5 feet. - Page 33 OPERATING INSTRUCTIONS Figure 9. Sandbox on rear frame assembly. Figure 7. Box ends locked in down position. A mechanical safety stop is provided for placement lift cylinder when transporting or working on the machine (figure The Rear Steer feature adds the ability to shift 10).
-
Page 34: Operation Safety
OPERATING INSTRUCTIONS Operation Safety CAUTION: Read and understand this section prior to operation of the Grader and follow all instructions when using the grader. • Keep all children and bystanders away from the Grader when in operation. • Do not allow riders on the Grader at anytime. -
Page 35: Maintenance
MAINTENANCE Maintenance & Repair Proper and consistent maintenance is a key to long and satisfactory performance of the Grader. Before servicing, adjusting, repairing lubricating the Grader, stop the tractor engine, place all controls in neutral, set the parking brake and remove the ignition key. Do not service the grader with the moldboard blade is in the raised position. -
Page 36: Wheel Bearings
MAINTENANCE Wheel Bearings Paint all parts which have chipped or require painting. Clean and repack wheel bearings once a year or every 100 hours of operation with SAE Inspect Grader for broken or missing parts. multi-purpose type wheel grease. To access See your dealer during the off season, so that the wheel bearings: parts or service can be obtained when the... -
Page 37: Specifications
Specifications General Specifications LS900R LS1200R LS1400R LS1600R Blade Width 9’ 12’ 14’ 16’ Grader Width (Transport) 7’ 4” 9’ 7” 11’ 12’ 5” Overall Length 18’ 7” 18’ 7” 18’ 7” 18’ 7” Blade Angle 43º 43º 43º 43º Blade Tilt 15º... - Page 38 Art's-Way Manufacturing Co., Inc. Hwy 9 West - PO Box 288 Armstrong, IA 50514 Ph: (712) 864-3131 U.S.A...
