Calculated Industries Laser DIMENSION MASTER 3336 User Manual

Laser
D M
®
IMENSION ASTER
HOW TO OPERATE

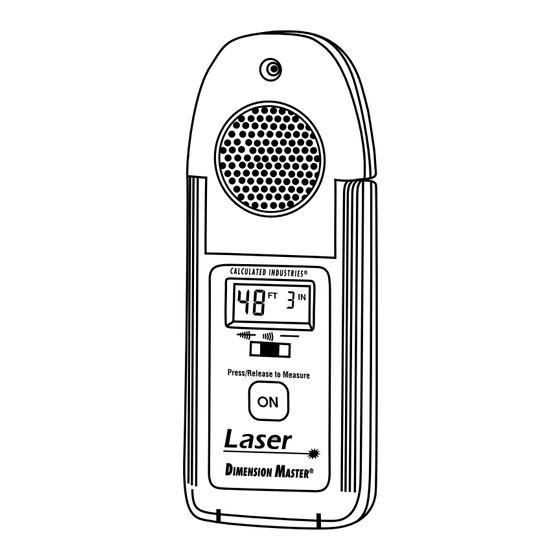

The Laser Dimension Master (LDM) has three operating modes. Select
the desired mode by moving the switch located on the front, above the
"ON" key.
OPERATING MODES
1) Measure Only (no laser)
Move switch to middle.
2) Measure with Laser Aimer
Move switch to far left.
3) Laser Pointer Only
Move switch to far right.
Note: Always use caution when operating with the Laser.
TO TAKE A MEASUREMENT
(Measure Only/No Laser)
a. Select "Measure Only" Mode.
b. Aim the front of the LDM at the target (e.g., wall). Hold the unit
perpendicular to the target surface.
c. Press and release the "ON" button. The LDM will beep once when the
"ON" button is pressed and twice when a valid measurement is
received.
Note: LDM is equipped with a "swivel" head to permit easy floor to ceiling
and wall to wall measurements.

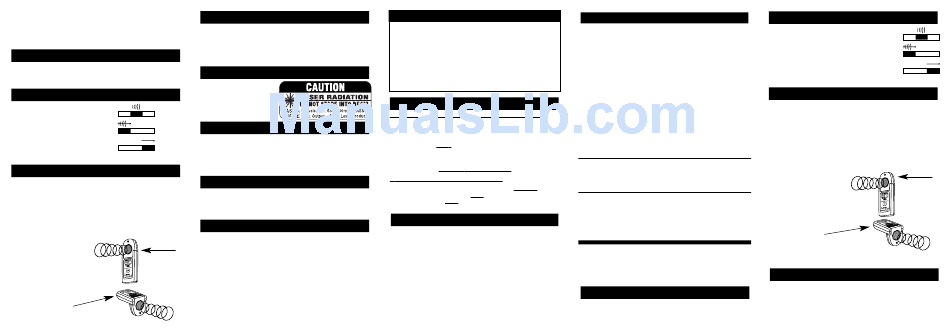

When the swivel head is
in the "upright" position,
measurements are calculated
Measures
from the "back" of the unit.
from back
(See figure "1") FIGURE
of unit with
"1"
swivel head
When the swivel head is in the
"down" position, measurements "upright"
are calculated from the "bottom"
of the unit. (See figure "2")
Measures from
bottom of unit
FIGURE
with swivel head "down"
"2"
MEASURE WITH LASER (to help you aim sonic beam)
a. Select "Measure with Laser" Mode. Aim the LDM at the target.
b. Press the "ON" button to activate the laser beam, and aim the laser ( note:
laser is located on upper face of unit, above ultrasonic sensor) at the
target. Release the "ON" button when ready to measure. The unit will
beep once when the "ON" button is released and twice when a valid
measurement is received.
TO OPERATE LASER POINTER
(Laser Only)
Select "Laser Only" Mode. Aim
the laser at your target ( note:
laser is located on upper face of
unit, above ultrasonic sensor),
and press the "ON" key.
SAFETY WARNINGS
1. Never aim laser beam at a person's eyes.
2. Do not leave product unattended or let an unauthorized person or child
use the product.
3. Do not expose others to the laser beam and assure they do not look
directly into the beam.
4. Do not aim at mirror-like surfaces
SPECIAL NOTES
If an "E" appears on the display, it means the ultrasonic signal is not being
reflected correctly, or you are aiming at a range beyond its capabilities (range
is up to a maximum of 50 feet or 15.2 meters).
To conserve battery life, your display will clear six (6) seconds after a reading.
HELPFUL USER HINTS
1. To clean your LDM use a soft, damp cloth. Do not immerse in, or spray
with water. Avoid all liquid or abrasive cleaners.
2. The electronic module in your LDM was sealed after factory calibration;
therefore, no user seviceable parts or adjustments are required.
3. Your LDM is temperature compensated. However, small variations in
accuracy may occur with changes in altitude and humidity. These
variations typically can be ignored for estimating purposes.
4. If moved from one temperature environment to another, allow the LDM
time to adjust to the surrounding air temperature before operating.
5. When measuring, make sure you are no less than two feet (61cm) from
your target. A shorter distance will give a false reading.
6. An object in the path of the measuring beam can cause a false reading.
Simply move the LDM above or to the side of the obstruction.
SPECIFICATIONS
Range: From 2 ft. up to 50 ft. (0.6m to 15.2m)
Measuring Units: Feet-Inches and Meters
Power: Ultrasonics: Permanent built-in
Lithium batteries
Laser: 3 LR-44 replaceable batteries
Display: Liquid Crystal
Accuracy: 99% over entire measuring range
Operating Temp: 40°F (4°C) to 100°F (38°C)
Weight: 3 oz. (85g)
REPAIR AND RETURN
WARRANTY, REPAIR AND RETURN INFORMATION
Return Guidelines:
1. Please read the Warranty on the Calculated Industries Website at
http://www.calculated.com. to determine that your LDM remains
under warranty before calling or returning it for evaluation or repairs.
2. If you believe you need to return your Calculator please speak to a
Calculated Industries representative for additional information!
Call Toll Free: 1-800-854-8075
BATTERY LIFE AND REPLACEMENT
1. Two built-in CR 2032 Lithium Batteries power the Ultrasonic function.
They are not replaceable. The Laser operates on (3) LR-44 replace-
able batteries. The Laser battery door is located on the bottom-rear
of the unit below the "Feet – Meter Selector" switch.
LIMITED WARRANTY
Calculated Industries ("CI") warrants this product against defects in
materials and workmanship for a period of one (1) year from the date
of original consumer purchase in the U.S. If a defect exists during the
warranty period, CI at its option will either repair (using new or
remanufactured parts) or replace (with a new or remanufactured cal-
culator) the product at no charge.
THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS
BEEN DAMAGED BY MISUSE, ALTERATION, ACCIDENT, IMPROPER
HANDLING OR OPERATION, OR IF UNAUTHORIZED REPAIRS ARE
ATTEMPTED OR MADE. SOME EXAMPLES OF DAMAGES NOT COV-
ERED BY WARRANTY INCLUDE, BUT ARE NOT LIMITED TO,
BATTERY LEAKAGE, BENDING, OR VISIBLE CRACKING OF THE LCD,
WHICH ARE PRESUMED TO BE DAMAGES RESULTING FROM MIS-
USE OR ABUSE.
Disclaimer
CI MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESS
OR IMPLIED, WITH RESPECT TO THE PRODUCT'S QUALITY, PERFOR-
MANCE, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PUR-
POSE. AS A RESULT, THIS PRODUCT, INCLUDING BUT NOT LIMITED
TO, KEYSTROKE PROCEDURES, MATHEMATICAL ACCURACY AND
PREPROGRAMMED MATERIAL, IS SOLD "AS IS," AND YOU THE PUR-
CHASER ASSUME THE ENTIRE RISK AS TO ITS QUALITY AND PER-
FORMANCE.
IN NO EVENT WILL CI BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY
DEFECT IN THE PRODUCT OR ITS DOCUMENTATION.
The warranty, disclaimer, and remedies set forth above are exclusive
and replace all others, oral or written, expressed or implied. No CI deal-
er, agent, or employee is authorized to make any modification, exten-
sion, or addition to this warranty. Some states do not allow the exclu-
sion or limitation of implied warranties or liability for incidental or con-
sequential damages, so the above limitation or exclusion may not apply
to you. This warranty gives you specific rights, and you may also have
other rights, which vary, from state to state.
U.S. Patent No. 4,975,889 Model 3336
Laser Dimension Master ® is a registered trademark of Calculated
Industries ® . Calculated Industries ® is a registered trademark of Calculated
Industries, Inc. © 2003. ALL RIGHTS RESERVED.
Calculated Industries, Inc.
4840 Hytech Drive • Carson City, NV 89706
1-775-885-4900 • Fax: 1-775-885-4949 • http://www.calculated.com
MADE IN CHINA UG3336EFS-D • 5/03
Laser
D M
®
IMENSION ASTER
FONCTIONNEMENT
Le Laser Dimension Master (LDM) est pourvu de trois modes de
fonctionnement. Le mode est sélectionné en déplaçant l'interrupteur situé
sur l'avant de l'appareil, au-dessus de l'interrupteur d'allumage.
MODES DE FONCTIONNEMENT
1) Mesure seulement (aucun laser)
déplacer l'interrupteur à la position du milieu.
2) Mesure avec viseur laser
déplacer l'interrupteur à la position de gauche.
3) Pointeur laser seulement
déplacer l'interrupteur à la position de droite.
Remarque : Toujours faire preuve de prudence lorsque le laser fonctionne.
POUR PRENDRE UNE MESURE
(mesure seulement, aucun laser)
a. Sélectionner le mode « Measure Only » (mesure seulement).
b. Pointer le devant du LDM sur la cible (ex. : mur). Tenir l'appareil
perpendiculairement à la surface visée.
c. Appuyer sur le bouton « ON », puis le relâcher. Le LDM émettra un
seul bip dès que le bouton « ON » est appuyé et deux bips lorsqu'une
mesure valide aura été prise.
Remarque : Le LDM est muni d'une tête pivotante pour faciliter les
mesures de plancher à plafond et de mur à mur.
Lorsque la tête pivotante pointe vers le
haut, les mesures sont calculées à partir
Lorsque la tête
de l'arrière de l'appareil
pivotante pointe
(voir la figure 1).
vers le haut, les
FIGURE
mesures sont
« 1 »
prises depuis
Lorsque la tête pivotante pointe vers le
l'arrière de
bas, les mesures sont calculées à partir
l'appareil.
du dessous de l'appareil (voir la figure 2).
Lorsque la tête
pivotante pointe vers le bas,
FIGURE
les mesures sont prises depuis
« 2 »
le dessous de l'appareil.
PRENDRE DES MESURES AU MOYEN DU LASER
(comment pointer le rayon ultrasonique)
a. Sélectionner le mode « Measure with Laser » (mesure au laser). Pointer le
LDM vers la cible.
b. Appuyer sur le bouton « ON » pour actionner le rayon laser (remarque : le
laser se trouve sur le dessus de l'appareil, au-dessous du capteur
ultrasonique) et pointer ce dernier sur la cible. Relâcher le bouton « ON » pour
prendre la mesure. L'appareil émettra un seul bip lorsque le bouton « ON » est
relâché et deux bips lorsqu'une mesure valide aura été prise.
