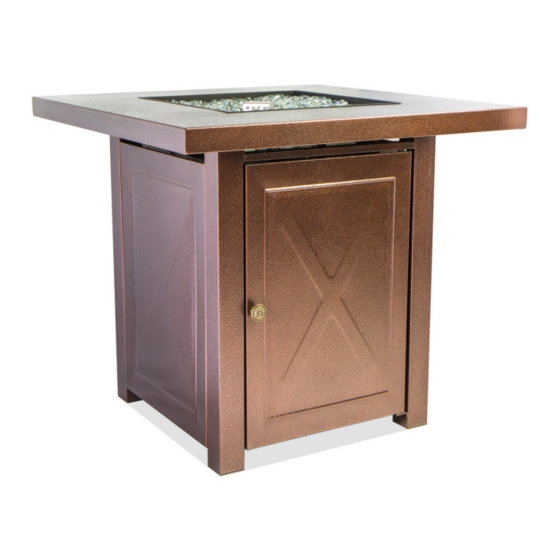

Outdoor firepit table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OUTDOOR FIREPIT TABLE
ITEM: 96801
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 96801 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xtreme Power 96801

  • Page 1 OUTDOOR FIREPIT TABLE ITEM: 96801 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY WARNING DO NOT use this product or any available optional equipment without first completely reading and understanding these instructions and any additional instructional material such as owner’s manuals, service manuals or instruction sheets supplied with this product or optional equipment.
  • Page 3 IMPORTANT SAFETY INFORMATION FOR OUTDOOR USE ONLY. Never use inside house, or other unventilated or enclosed areas. This fire pit consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 4 FEATURES Features • Bring the Heat – and Warmth – To your outdoor conversation space with the Fire Table • Clear fire glass covers the burner and adds a touch of elegance • Offering both useful functionality and contemporary appeal, the stylish patio heater features durable construction with a powder-coated bronze finish •...

  • Page 5: Parts Diagram

    PARTS DIAGRAM...

  • Page 6: Parts List

    PARTS LIST...
  • Page 7 ASSEMBLY 1. Attach the right front leg (4) to the side panel (6) with 4pcs M6x12 (A), repeat this step with the right back leg (5). 2. Attach the left front leg (3) to the side panel (6) with 4pcs of M6x12 screws (A), repeat this step with the left back leg (3).
  • Page 8 ASSEMBLY 4. Attach the cylinder bracket (11) to the bottom (10) with one M6x12 screw (A) and one M6 nut (B), repeat this step with the other 2pc bracket. 5. Attach the bottom to the 4 legs wit 4 M^x25 screws (E) and attach the beam (9) to the front legs (3 &...
  • Page 9 ASSEMBLY 7. Attach the knob (8) to the front panel (7) with one M4 washer (D) and one M4x8 screw (C). 8. Turn the assembles pieces upside down and connect the front panel with the left front legs (3). 9. Connect the hose and regulator to the cylinder. The propane gas and cylinder are sold separately.

  • Page 10: Leak Check

    ASSEMBLY A dented, rusted or damaged propane cylinder may be hazardous and should be checked by the cylinder supplier. NEVER use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.

  • Page 11: Operation

    OPERATION CARBON MONOXIDE HAZARD: For outdoor use ONLY. NEVER use inside the house or other unventilated or enclosed areas. This fire pit consumes air (oxygen). DO NOT use in unventilated or enclosed areas to avoid endangering your life. CAUTION: DO NOT attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
  • Page 12 OPERATION FOR YOUR SAFETY: Be careful when attempting to manually ignite this fire pit. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. WHEN FIRE PIT IS ON Burner will display tongues of blue and yellow flame.

  • Page 13: Operation And Maintenance

    OPERATION and MAINTENANCE AFTER OPERATION: 1. Gas control is in the OFF position. 2. The Gas tank valve is OFF. 3. Disconnect the Gas line. To enjoy years of performance from your fire pit, make sure you perform the following maintenance on a regular basis.

  • Page 14: Troubleshooting And Warranty

    TROUBLESHOOTING AND WARRANTY PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
