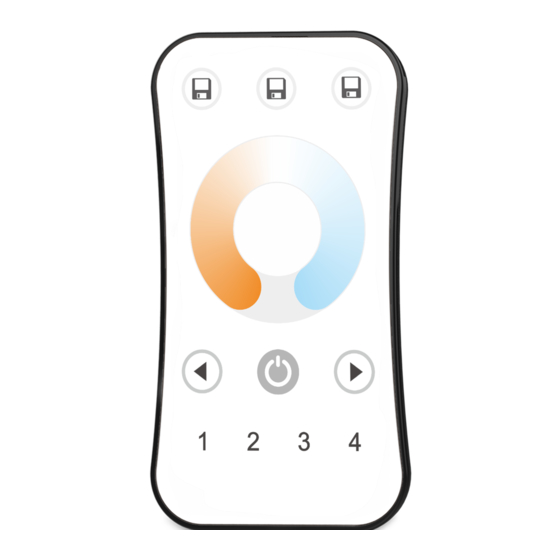

LEDVANCE VALUE Tunable White
Remote Controller
MS-CV-DIM-RF 12/24V TW RM
Features
• Up to 30 meters connection range between the nearest LEDVANCE Value Tunable White Dimming Controller
and the remote controller
• Perfectly compatible to work with LEDVANCE Value Tunable White Dimming Controller
(Model: MS-CV-DIM-RF 12/24V TW)
• Each remote controller can pair up with one or many LEDVANCE Value Tunable White Dimming Controllers
• Red indication light would be light-on if any button on the remote controller is pressed in order to provide basic
user interaction experience
• 4 zones of dimming controllers can be controlled by 1 remote controller seperately thereby users would not be
bothered by too many remote controllers on hand
• Each remote controller can save up to 3 memory scenes
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Mechanical Structures and Installations Guide
CR2032 Battery
Note: Please install the 3V 2032
battery cell first inside the battery
case at the back side before using
the remote controller.
How to fix the back holder of remote controller at somewhere if you are worried about missing it?
a. Fix the back holder on the wall with 2 screws;
b. Use the adhesive back tape to fix the back holder on the wall.
RF(2.4GHz)
3VDC
<5mA
<10 A
1 year
30m
Back holder
Environment
Operation temperature
Case temperature (Max.)
IP rating
Ta:-30°C~+55°C
Tc:+85°C
IP20
