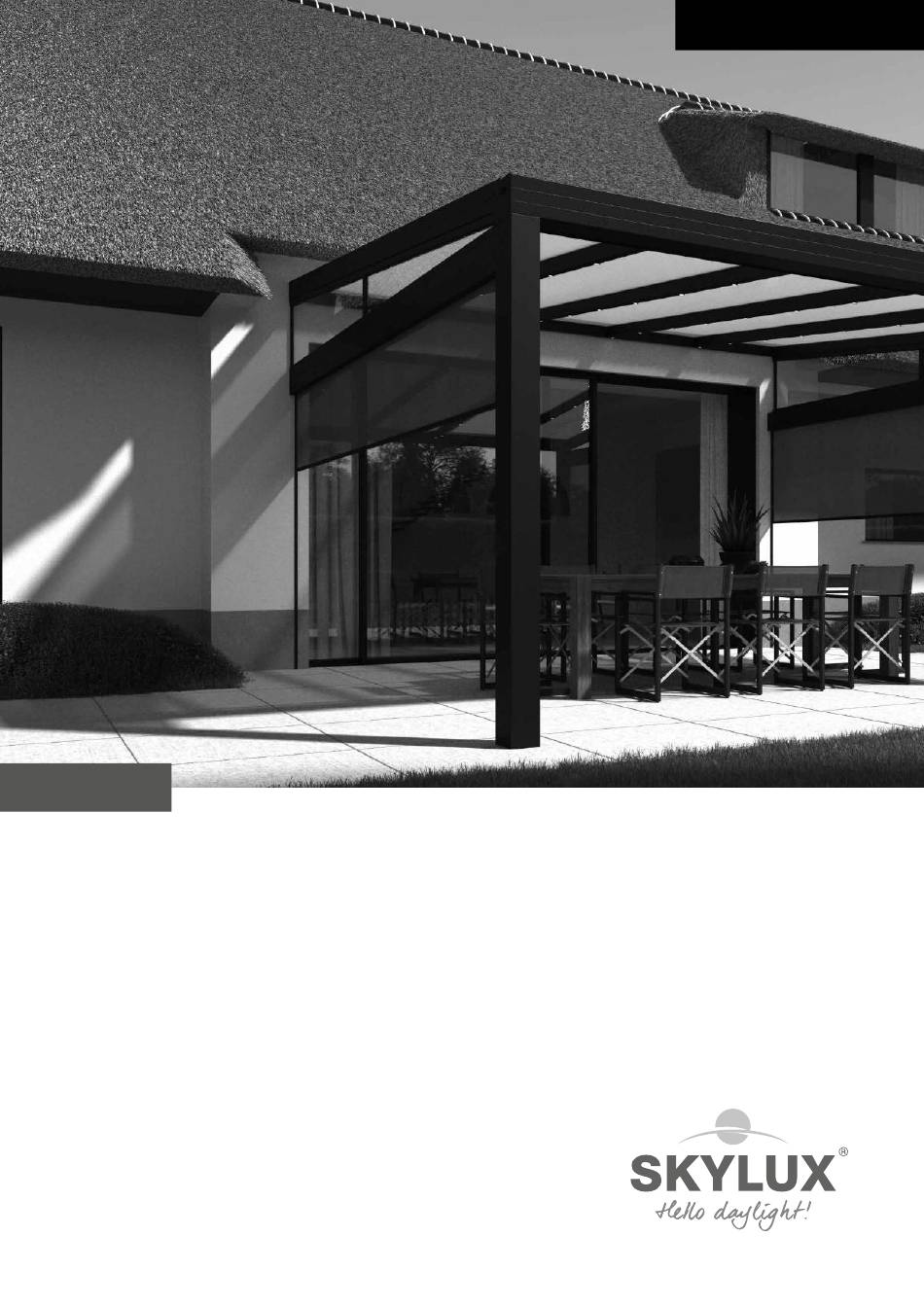

- Page 1 VERANDA Vertical sunblind Mounting instructions Art.N° 78065...
-
Page 2: Safety
Safety Take the necessary and required safety precautions, such as safety nets and lifelines when installing from the outside, safety goggles, gloves, hard hat, etc. Do not step on the glass. Falling from height • When using ladders to go on the roof: - Ladder in good condition? - Set up correctly at an angle of 75°? - Secured below and on top against moving? - Page 3 Sharp objects • Make sure your fingers/hands are not pinched and watch out for cuts while handling veranda parts. • Be careful where you put your hands during the installation. • Wearing cut-resistant gloves is mandatory. Ergonomics • Always lift loads correctly: bend your knees, move your feet instead of forcing your spine, lift as close to your body as possible.
-
Page 4: Table Of Contents
Failure to comply with these instructions relieves the manufacturer of his liability obligation. You can always contact the Skylux technical service if you have any questions about the installation of this product. Random interventions by unauthorised personnel for repairs or changes to the product can cause severe damage to the product or the residence. -
Page 5: Overview Of Profiles And Parts
Overview profiles and parts Casing Rails Adapter profile VPL1342 L-profile VPL432 Attachment screws VTSCR.002 Required tools - Allen key 3 - Spirit level - Meter - Drill 4 mm drill 5 mm drill 10 mm drill TX25 bit 5/16 01/10/2020 E_MH_Mounting_instructions_Skylux_Vertical_sunblind... -
Page 6: Installation
Installation Before attaching the rail to the posts, we advise you to recheck the measurements. 90° D +0/-1mm B +0/-1mm Please make sure that the rails are always parallel towards each other and perpendicular towards the casing. This is very important because an incorrect installation causes wrinkles in the fabric or permanent damage. 6/16 E_MH_Mounting_instructions_Skylux_Vertical_sunblind 01/10/2020... - Page 7 VPL1342 B or D 130 mm Casing 131: Casing 103: 102 mm 50 mm max 300 mm Climalux GX ø 5 mm Climalux GXLX ø 5 mm Climax GD1 Side veranda Climax Panorama GDG Climax GD2 ø 5 mm 7/16 01/10/2020 E_MH_Mounting_instructions_Skylux_Vertical_sunblind...
- Page 8 VPL1342 VTSCR.002 Pre-drill reinforcement profile with Ø 4 mm. Climalux GX Climalux GXLX VTSCR.002 VTSCR.002 Climax Panorama VTSCR.002 Climax GD1 Climax GD2 VTSCR.002 8/16 E_MH_Mounting_instructions_Skylux_Vertical_sunblind 01/10/2020...
- Page 9 PVC part 46 mm Unscrew the cover plate from the rails and take out the PVC part for the installation. Use the 3 mm Allen key. ø 10 mm ø 5 mm Drill holes in the front of the rail to secure it. Do this where the foam is situated (on the inside of the rail).
- Page 10 Slide the casing on the rail. Put the casing perpendicular on the rail. Be careful not to break the ends of the side parts. Electric connection of the actuator Before installing the sunblind, you need to drill a hole for the control unit (actuator). - Check the position of the actuator cable (left or right).
- Page 11 Drill a hole at +/- 20 mm from the post, through the adapter profile in the gutter in the marked position. If a reinforcement profile is used, you need to drill through this profile as well. Climalux GX Climalux GXLX ø...
- Page 12 VTSCR.002 Place the blind against the adapter profile. Put the power cable through the drill hole. Secure the rails. Connect the actuator cable. - brown: phase - blue: neutral wire - yellow-green: ground wire 12/16 E_MH_Mounting_instructions_Skylux_Vertical_sunblind 01/10/2020...
- Page 13 Put the side of the canvas in the PVC profile. The notch of the profile must be on top. Slide it in the rail. Finally, attach the cover of the rails. Do not fasten the screws too tightly. Configuration sunblind See manual for the remote control/switch/app.
- Page 14 VPL432 B or D 14/16 E_MH_Mounting_instructions_Skylux_Vertical_sunblind 01/10/2020...
-
Page 15: Maintenance
Failing to comply with the above mentioned maintenance and user advice voids the guarantee. Guarantee Skylux offers its professional customers a 5-year guarantee for all flaws that may occur during normal use and maintenance of the delivered sunblinds. The guarantee period starts at production date and only covers the product itself, not the product installation. - Page 16 ONLY USE ORIGINAL PARTS SUPPLIED BY SKYLUX. FAILURE TO USE ORIGINAL PARTS VOIDS THE GUARANTEE. THESE GUIDELINES ONLY SERVE AS ADVICE AND INFORMATION. INSTALLATION IS CONDUCTED UNDER THE SOLE RESPONSIBILITY OF THE CUSTOMER. SKYLUX IS A REGISTERED BRAND OF SKYLUX...
