KC-2934
FOLDING BIKE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-2934 and is the answer not in the manual?

Questions and answers

Summary of Contents for Star Shaper KC-2934

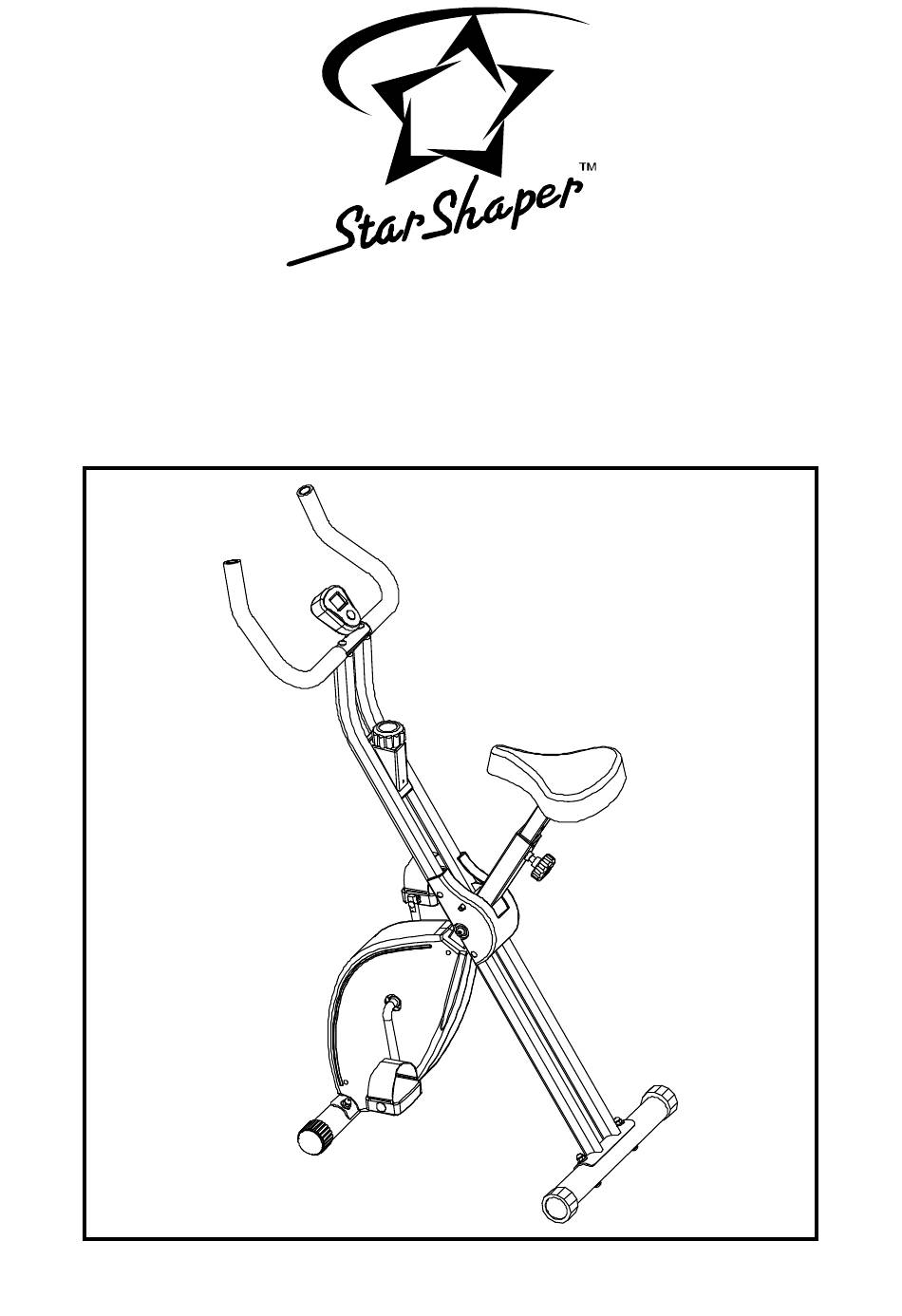

  • Page 1 KC-2934 FOLDING BIKE...
  • Page 2 …………………… Important Safet y Information Exploded-View Assembly Drawing ………………..….. ……………………………………………….… Parts List ……………………………..…… 4-7 Assembly Instruction …………………………………..… 8-9 Exercise Instructions ……………………………….…… 9-10 Exercise Computer ………………………….…… Folding Bike Storage …………………………….…… Trouble Shooting...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Please keep this manual in a safe place for reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and efficient use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 4: Exploded View

    EXPLODED-VIEW ASSEMBLY DRAWING...
  • Page 5 #6x4(M8 x 60mm) #7 x6 ( 8) #22x2(M8 x 40mm) #8 x4 (M8) #14x1 PARTS LIST PART DESCRIPTION PART DESCRIPTION Main frame Adjustment knob Rear stabilizer Lock pin Front stabilizer Seat post Adjustable end cap Lock nut (M8) Washer (φ8) Front stabilizer end cap Bolt ( M8*60) Seat...

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Pull the safety-pin (14) as the picture A shows. Insert the pin (14) when opening the X-Bike as the picture B shown 2. Attach front stabilizer (3) onto the product by insert bolts (6) through it and the main frame (1) base, fasten with curved washer (7) and domed nut (8).
  • Page 7 STEP 2 Attach seat (18) onto seat post (15) by fasten them with lock nut (16) and washer (17). NOTICE! This line mark on the seat post is for “STOP” STEP 3 position. Insert seat post (15) into main frame (1) and use adjustment knob (13) to lock it to the desired height to set up the sitting position.
  • Page 8 STEP 4 Attach handlebar (20) onto main frame (1), fasten bolts (22) and curved washers (7) to stabilize it. Put on handlebar foam (21) over handlebar (20) to for comfort grips. Notie: The foam handlebar covers can be tricky to fit as they are designed to grip tightly.
  • Page 9 STEP 6 Install Battery to the computer (23) in the battery compartment located in the back and connect the computer wire (24) and lower wire (25). Slide the computer (23) down to the Computer Bracket situated at the top of the handlebar (20...

  • Page 10: Exercise Instruction

    EXERCISE INSTRUCTION Using your FOLDING BIKE will provide several benefits, it will improve your physical fitness and flexibility, tone muscles and in conjunction with a calorie controlled diet help you lose weight. 1.The Warm Up Phase This stage helps to get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.

  • Page 11: Muscle Toning

    3. The Cool Down Phase This stage is to let your cardio-vascular system and muscles gradually slow and cool down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

  • Page 12: Exercise Computer

    EXERCISE COMPUTER SPECIFICATIONS: TIME……………………………………………………….………..00:00-99:59 SPEED(SPD)..………………………………………………..……0.0-99.9KM/H (ML/H) DISTANCE(DIST)………………………………………………..0.00-999.9KM (ML) CALORIE(CAL)………………………………………………..…0.0-9999KCAL ※ PULSE (PUL) ……..............40~240BPM KEY FUNCTIONS: MODE(SELECT/RESET): This key lets you to select and lock on to a particular function you want. OPERATION PROCEDURES: 1. AUTO ON/OFF The system turns on when any key is pressed or when it sensor an input from the speed sensor. The system turns off automatically when the speed has on signal input or no key are pressed for approximately 4 minutes.
  • Page 13 FOLDING BIKE STORAGE Pull the locking pin (14) out of the main frame, then push the rear stabilizer (2). And in insert the locking pin in to the hole.

  • Page 14: Troubleshooting

    TROUBLE SHOOTING. 1. Change the battery. To change the computer battery, please slide the computer from the computer holder, remove the battery cover on the back of the computer console, and remove the batteries. Replace with 1 x AA batteries. Finally put the cover back on the console, and slide the computer back on the computer holder.
