Radal Technology Cig-Arrete Master User Manual

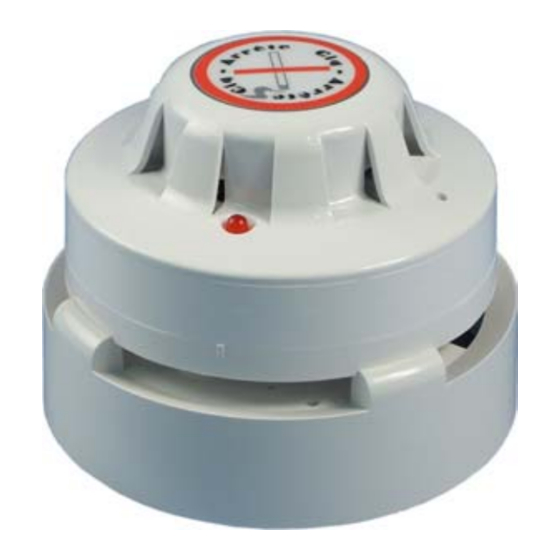

Cig-Arrête Master Smoke Module with Voice Alarm (Part No CSA-GDV)

Installation

By default the stand alone module is factory set to DIP switch 2 and 8 in the ON position. (see table below for configuration)
Voice Message No 1 –
Full volume
1 message Play -
Set for 4 x AA batteries -

Battery Operation Instructions

Remove detector head, by rotating anti-clockwise. Remove battery holder from the rear of detector. Insert 4 x good quality AA alka-
line batteries into battery holder - observing polarity and replace holder (or 1 x 9V PP3 battery) . Fix to ceiling using appropriate fixing
screws. Either accept factory default settings or configure as required and refit detector head and lock into position using anti-
tamper screwdriver. Fit anti-vandal cage (part no. CSA-AVC2) if additional protection is considered necessary.
Note: Detector can be locally powered if necessary, using optional plug-in daughter board. (see PIN CSA-DBD)
AFTER POWERING THE SYSTEM PLEASE WAIT UNTIL THE DETECTOR LED HAS STOPPED FLASHING BEFORE TESTING THE SYSTEM
WITH CIGARETTE SMOKE
DIL SWITCH SETTINGS
Infra Red Remote Enabled
Disabled
Sound Output Alert Tone
Speech
Message Repeats 1
(or tone) 3
5
Silent (no tone or speech) Relay On 20 Secs
Message Select 1
2
3
4
5
6
7
Battery Monitor 9V Battery
6V Battery
Radal Technology Ltd
Unit 1 Webber Court
Billington Road
Burnley
Lancashire BB11 5UB
England
Issue Date: October 2007

Description

The Master Smoke detector with integral voice sounder does not require
any additional products, but may connect to other products in the Cig-
Arrête product range to provide a Master Slave System
The CSA-GDV may be battery powered or may be connected to a power
supply unit, other Slave Detectors in the Cig-Arrête range, and in addition—
a combined sounder beacon unit to warn supervisors of a smoking breach.
Coverage area approx 3m x 3m x 3m
"This is a no smoking area. Please extinguish your cigarette. Staff have been contacted."
Adjustable via potentiometer
(DIP Switch 3 and 4 OFF)
The preferred battery size due to longevity of the product (DIP Switch 8 ON)

Detector Sensitivity Adjustment

High Sensitivity
Medium High Sensitivity
Normal Sensitivity
Low Sensitivity
1 2 3 4 5
ON
OFF
OFF
ON
OFF OFF
OFF ON
ON OFF
ON ON
OFF
OFF
OFF
OFF
ON
ON
ON
Web: www.radaltechnology.com
Phone: +44 (0)1282 463 770
Fax:
Email: info@radaltechnology.com
= SW1 OFF + SW2 OFF + SW3 OFF
= SW1 ON + SW2 OFF + SW3 OFF
= SW1 OFF + SW2 ON + SW3 OFF
= SW1 ON + SW2 ON + SW3 ON

Fault Indication

6 7 8
Low Battery
Head Removal

Specification

Temperature
Humidity
Operating Voltage
Operating Current
OFF OFF
Battery Life based on quality DURACELL alkaline batteries.
OFF ON
Duracell
ON OFF
ON ON
AA 6V
PP3 9V
OFF OFF
D 6V
OFF ON
Note:
ON OFF
The life of the battery is dependant on the number of message plays. In areas
where smoking occurs frequently then utilise the D Cell battery box (Part No
OFF
CSA—EBB) or purchase a plug in power supply e.g. (Part No CSA—246)
ON
+44 (0)1282 463 771
Multi-Lingual Product
**
0.5 (S) blip, once every 150 seconds - high tone
0.5 (S) blip, once every 150 seconds - low tone
-10 to +50 C
0 – 95% non condensing
4 to 12V dc
60µA standby, 100mA during alarm
@6V dc
Capacity Standby Time
2.85 A/hr 5 Years
0.58 A/hr 1 Year
15.00 A/hr 10 Years
Max No of Plays (10 secs)
10,000
2,000
50,000
