Summary of Contents for C4i HDV-R65

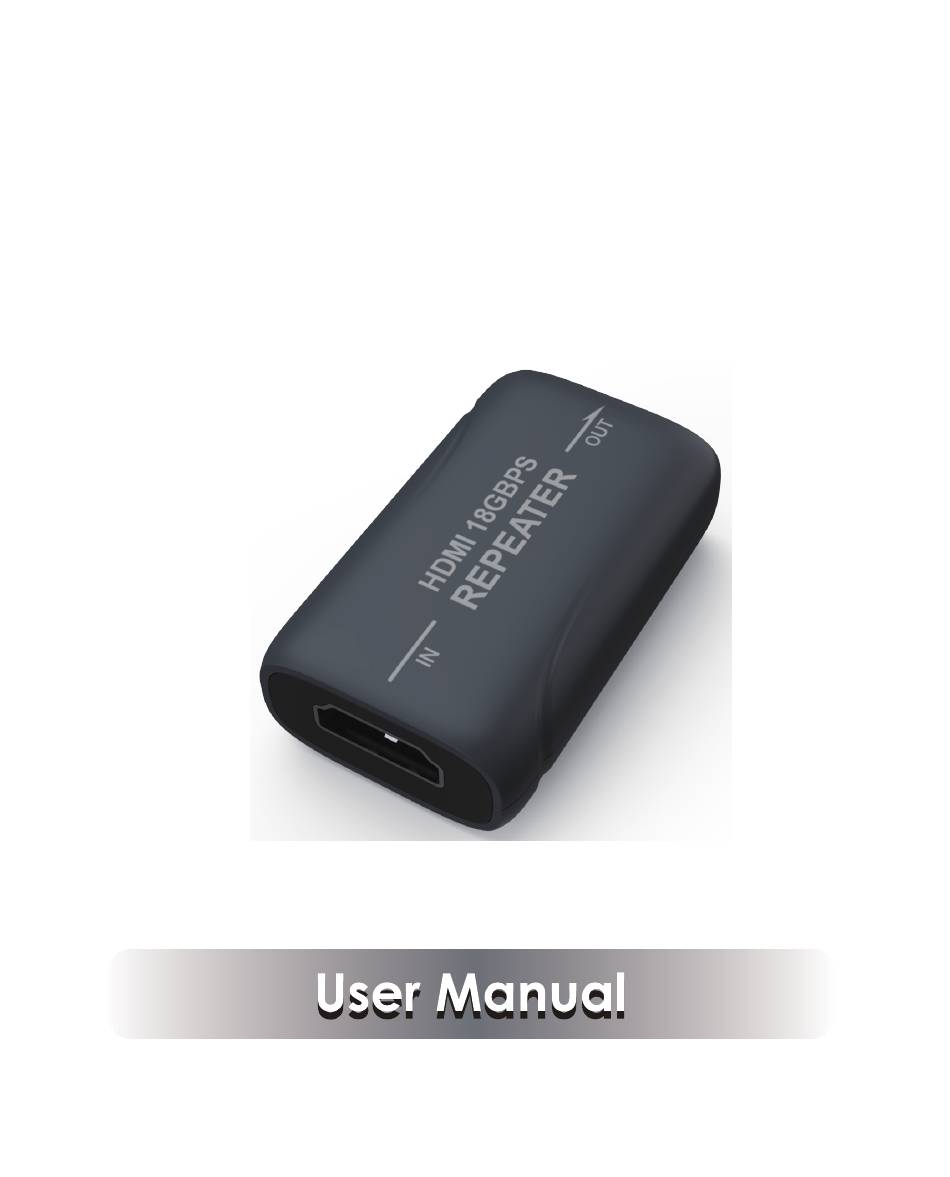

- Page 1 HDMI 18Gbps Repeater VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical compone -nts that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

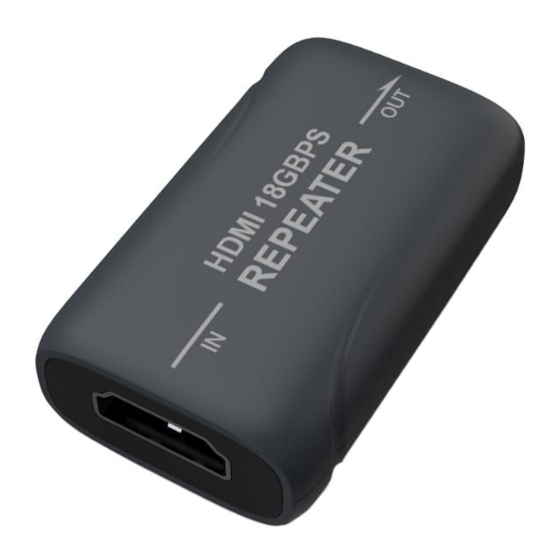

- Page 3 1. Introduction The HDMI 18Gbps Repeater is the most advanc -ed solution for HDMI signal extension/cascade. It can amplify and equalize signals to improve the quality of audio and video signal. It supports the transmission distance up to 8m at the resolution of 4K2K@50/60Hz(YUV_444), 15m at 4K2K@ 60Hz(YUV_420) and 20m at 1080p@60Hz.
- Page 4 ☆ Support transmission distance up to 8m at the resolution of 4K2K@50/60Hz(YUV_444), 15m at 4K2K@60Hz(YUV_420) and 20m at 1080p @60Hz ☆ Require the HDMI source device to output power to the unit via an HDMI cable ☆ Simple plug and play, no drive and installation setting are required ☆...
- Page 5 4. Specifications Technical HDMI HDMI 2.0 Compliance HDCP HDCP 2.2 / 1.x Compliance Video 18 Gbps Bandwidth Video Up to 4k2k@60Hz YUV 4:4:4 Resolution 8-bit,10-bit,12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) Color Depth 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) RGB, YCbCr 4:4:4, YUV 4:4:4, Color Space YCbCr 4:2:2/4:2:0 HDMI Audio...
- Page 6 Connection 1x HDMI Type A [19-pin female] Input Output 1x HDMI Type A [19-pin female] Mechanical Housing Plastic Enclosure Color Black Dimensions 48.6mm[W] x 25mm[D] x 15mm[H] Weight Power Supply HDMI Operating 32 - 104°F / 0 - 40°C Temperature Storage -4 - 140°F / -20 - 60°C Temperature...
- Page 7 5. Operation Controls and Functions Name Function Description HDMI input port, connect to HDMI 1 HDMI IN source device such as DVD or PS3 with an HDMI cable. HDMI output port, connect to 2 HDMI OUT HDMI display device such as TV or monitor with an HDMI cable.
- Page 8 6. Application Example Repeater HDMI HDMI cable cable - 6 -...
