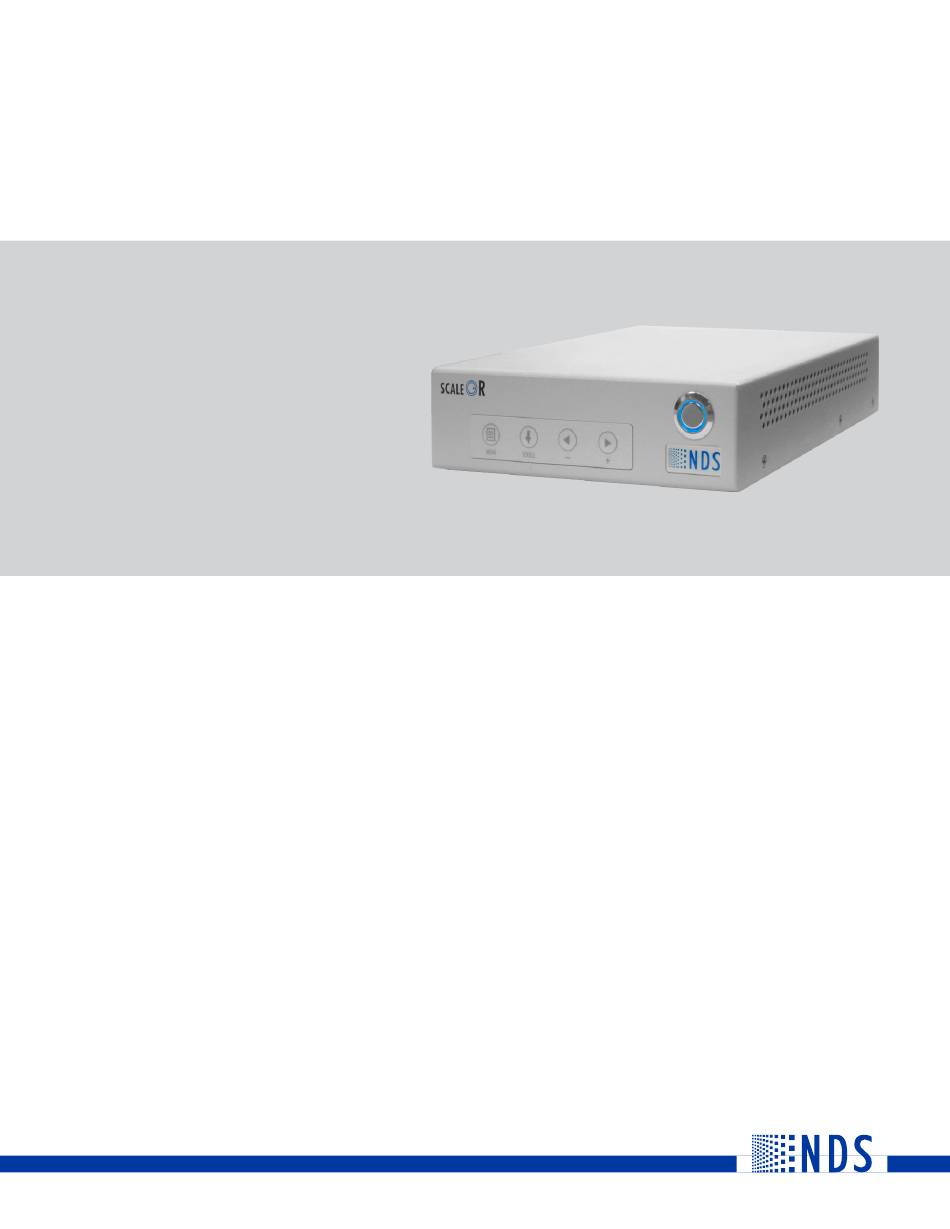

- Page 1 ScaleOR™ Video Scaling System USER MANUAL ENGLISH...
- Page 3 © 2018 NDS Surgical Imaging, LLC. All rights reserved. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. This document is subject to change without notice. NDS provides this information as reference only.
-
Page 5: Table Of Contents
Table of Contents Tab 1 Warnings and Cautions --------------------------------- -------------------- ii Recycling ------------------------------------------------------------------------- ii Declaration of Conformity --------------------------------------------------- iii Legal Statement ------------------------------------------- -------------------- iii Tab 2 About This Manual ------------------------------------------------------------- 1 Intended Use and Contraindications ------------------------------------- 1 ScaleOR Overview ------------------------------------------------------------- 2 General Information ----------------------------------------------------------- 2 Tab 3 Connector Panel ---------------------------------------------------------------- 3... -
Page 6: Warnings And Cautions
Warnings and Cautions This symbol alerts the user that important informa on regarding the installa on and / or opera on of this equipment follows. Informa on preceded by this symbol should be read carefully in order to avoid damaging the equipment. -
Page 7: Declaration Of Conformity
Declarations of Conformity FCC and Council Directives of European Standards: This device complies with Part 15 of FCC rules and 93/42/EEC of the Council Directives of European Standards Directive as amended by 2007/47/EC. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable results. -
Page 9: About This Manual
About This Manual This manual is designed to assist the user with installa on, setup and opera on of the ScaleOR and its associated displays. A list of displays that may be used with the ScaleOR is in the Compa ble Displays sec on under General Informa on... -
Page 10: Scaleor Overview
ScaleOR Overview The ScaleOR accepts 1 of following 4 input modules: DVI-D S-Video / Composite The ScaleOR is has two op ons of fixed output connectors: DVI and SDI DVI and HDBaseT (HDBT) The drawings on pages 3 and 4 show the loca ons of the two versions of fixed output connectors and the input module. -
Page 11: Tab
Connector Panel The ScaleOR with fixed DVI and SDI output connectors is shown below. Notes: Power input. Use the provided 12VDC power supply only. Op onal Fiber Op c output Input module, DVI-D module shown, all input modules are shown on page 9. ND-OS connector allows the ScaleOR to be controlled remotely via serial commands. - Page 12 The ScaleOR with fixed DVI and HDBaseT output connectors is shown below. Notes: Power input for use with the op onal 12VDC power supply only. The HDBaseT (PoE) port is the recommended power source for the ScaleOR HDBaseT. Input module, DVI-D module shown, all input modules are shown on page 9.
-
Page 13: Output Mode Switches
Output Mode Switches The Output Mode Switches, accessible on the underside of the unit, allow the user to select 1 of 46 output modes. The Output Mode Switch Se ngs table on the following page shows the switch se ngs required to select a given output mode. -
Page 14: Dvi And Sdi Output Mode Switch Settings
DVI and SDI Output Mode Switch Settings Legend: F = Off, O = On Mode DIP Switch Index DVI Mode SDI Mode 720x487/59.94P 720x480/59.94I 720x576/50.00P 720x576/50.00I 1280X720/23.98P 1280X720/23.98P 1280X720/24.00P 1280X720/24.00P 1280X720/25.00P 1280X720/25.00P 1280X720/29.97P 1280X720/29.97P 1280X720/30.00P 1280X720/30.00P 1280x720/50.00P 1280x720/50.00P 1280x720/59.94P 1280x720/59.94P 1280x720/60.00P 1280x720/60.00P 1920x1080/50.00P... -
Page 15: Dvi And Hdbaset Output Mode Switch Settings
DVI and HDBaseT Output Mode Switch Settings Legend: F = Off, O = On Mode DIP Switch Index DVI Mode HDBT Mode 720x487/59.94P 720x487/59.94P 720x576/50.00P 720x576/50.00P 1280X720/23.98P 1280X720/23.98P 1280X720/24.00P 1280X720/24.00P 1280X720/25.00P 1280X720/25.00P 1280X720/29.97P 1280X720/29.97P 1280X720/30.00P 1280X720/30.00P 1280x720/50.00P 1280x720/50.00P 1280x720/59.94P 1280x720/59.94P 1280x720/60.00P 1280x720/60.00P 1920x1080/50.00P... -
Page 16: Power Supply And Wall Adapters
Power Supply and Wall Adapters The power supply is shown with the US wall adapter installed. To exchange the adapter, proceed as follows: The ScaleOR with fixed DVI and SDI output connectors uses the power supply as the power source. The ScaleOR with fixed DVI and HDBaseT output connectors uses Power over Ethernet (PoE) through the... -
Page 17: Removable Input Modules
Removable Input Modules Input Modules: Four types of input modules are available: DVI-D, 3G-SDI, S-Video / Composite DVI-D input module accepts DVI signals up to 1920 x 1200 progressive at 60Hz. 3G-SDI input module accepts SDI signals up to 1920 x 1080 progressive at 60Hz. input module accepts analog signals up to 1920 x 1200 progressive at 60Hz. -
Page 18: Dvi And Sdi System ConGuration Example
DVI and SDI System Configuration Example A system configura on with the ScaleOR with fixed DVI and SDI output connectors is shown below. ▲ ▲ DVI Out SDI Out ▲ ◄ ► SDI, DVI, VGA, or S-Video / Composite Source Optional PC control... -
Page 19: Dvi And Hdbaset System ConGuration Example
DVI and HDBaseT System Configuration Example A system configura on with the ScaleOR with fixed DVI and HDBaseT output connectors is shown below. ▲ ▲ DVI Out HDBaseT Out ▲ ◄ ► SDI, DVI, VGA, or S-Video / Composite Source Optional PC control... -
Page 20: Tab 5 Startup
Startup Connect one of the ScaleOR outputs to a compa ble monitor. Connect a video source to the ScaleOR input. Press the power bu on located on the front panel of the ScaleOR. The illuminated blue ring on the power bu on flashes for 15 seconds then, when a video signal is detected, becomes steady. -
Page 21: Tab 6 Control
Control A 4 bu on keypad, located below and to the right of the ScaleOR logo, allows the user to make adjustments to various ScaleOR parameters using the On Screen Menu (OSM) system. Menu System Overview Press the MENU bu on once to open the OSM. The input and output resolu on are shown at the top of the menu. -
Page 22: Scaleor Setup
ScaleOR Setup Picture Menu Horizontal Position: Moves the image to the le or right. Press or to horizontally center the image. Vertical Position: Moves the image up or down. Press or to ver cally center the image. Sharpness: Press ... -
Page 23: Color Menu
Color Menu Brightness: Press the or bu on to adjust brightness. Contrast: Press the or bu on to adjust contrast. Red, Green, Blue: Press the or bu on to increase or decrease the intensity of the selected color. Saturation (Video): This parameter is enabled only when the input is 16:9, 480P, 576P, or interlaced. -
Page 24: Setup Menu
Setup Menu Input Format: Press the or bu on to match the format of the input signal. Notes: 1. This parameter is not available when a DVI or 3G - SDI input module is installed in the ScaleOR. 2. -
Page 25: Modes Menu
Modes Menu The available output modes are shown when the Modes tab is selected. If the Modes tab is selected using the bu on, the legend changes to Modes 0-15 and modes 0 through 15 are displayed. Pressing the bu on a second me, changes the legend to Modes 16-31 and modes 16 through 31 are displayed. -
Page 26: Output Modes Table
Output Modes Table Mode Index Output: Mode Mode Index Output: Mode Mode Index Output: Mode DVI/SDI/ DVI/SDI/ 0000 720x487p/i@59Hz 0016 1920x1080p@29Hz 0032 DVI Only 1152x864@85Hz HDBT HDBT DVI/SDI/ 0001 DVI/SDI 720x576p/i@50Hz 0017 1920x1080p@30Hz 0033 DVI Only 1280x768@59Hz HDBT DVI/SDI/ DVI/SDI/ 0002 1280x720p@23Hz 0018... -
Page 27: Serial Port Setup And Test
Serial Port Setup and Test Hardware Setup Turn the ScaleOR on. Connect your PC to the ScaleOR using a USB to Mini 5 USB (NDS P/N 35Z0047) or equivalent cable. Device Manager Open the Device Manager, and select Ports (COM & LPT). Find the USB Serial Port (COMx) entry. Use the port number in the ( ) when you setup Hyper Terminal. -
Page 28: Troubleshooting And Test Section
Troubleshooting and Test Section Problem Possible Causes and Remedies Power switch does not Loose power cable: Verify that the power cable is fully inserted into the power illuminate in the ON state connector and that the power supply connector collar is properly threaded onto the ScaleOR power connector. -
Page 29: Drawing And Dimensions
Drawing and Dimensions... -
Page 30: Connectors And Pin Outs
Connectors and Pin Outs Input Connectors DVI Input and Output Connectors DVI-D* Digital only. 1 RED 6 GND RED 11 N. C. * Compliant with DVI 1.0 2 GREEN 7 GND GREEN 12 DDC_SDA 3 BLUE 8 GND BLUE 13 HORIZ SYNC PIN# SIGNAL PIN# SIGNAL 4 N.C. -
Page 31: Cable Bend Radius
HDBaseT Output Connector RJ45 Connector Description Cable Bend Radius We recommend that the bend radius of metallic cables be no less than 2.5 inches (63 mm) or 7 times the diameter of the cable whichever is greater. The bend radius of Fiber Optic cables should be no less than 10 times the diameter of the cable. -
Page 32: SpeciCations
Specifications DVI Output Resolution User selectable. See Output Modes Table on page 18 SDI Output Resolution User selectable. See Output Modes Table on page 18 HDBaseT Output Resolution User selectable. See Output Modes Table on page 18 HD-SDI Input signal level .8 to 2.0 V p-p DC Power Consumption AC Power Consumption... -
Page 33: Video Formats
SDI Supported Resolutions DVI Supported Resolutions Horizontal Vertical Vertical Horizontal Vertical Vertical Signal Parameter Supported Range Resolution Resolution Frequency Resolution Resolution Frequency Active Resolution 640 x 480 min to 1920 x 1200 max (pixels) (lines) (Hz) (pixels) (lines) (Hz) (Horizontal x Vertical 480i 29.97 1280... -
Page 34: Video Inputs
Inputs Connector Type DVI-D 3G-SDI BNC, 75 Ohm terminated VGA / RGBS / YPbPr / SOG HD-15 S-video DIN-4 Composite BNC, 75 Ohm terminated Outputs Connector Type DVI-D HDBaseT RJ-45... -
Page 35: Cleaning And Disinfecting Instructions
Cleaning and Disinfecting Instructions Prior to cleaning and surface disinfection, the unit should be turned OFF and disconnected from its power source. Cleaning: Thoroughly wipe all exterior surfaces with a lint-free cloth that has been dampened with an acceptable cleaning agent. Acceptable cleaning materials are listed below. Remove residual detergent by wiping all exterior surfaces with a lint-free cloth dampened with distilled water. -
Page 36: Electromagnetic Compatibility (Emc) Tables
EMC Tables Guidance and manufacturer’s declaration – electromagnetic emissions The product is intended for use in the electromagne c environment specified below. The customer or the user of the product should assure that it is used in such an environment. Emissions Compliance Electromagnetic environment-- guidance... - Page 37 EMC Tables Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagne c environment specified below. The customer or the user of the product should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level...
- Page 38 EMC Tables Recommended separation distances between portable and mobile RF communications equipment and the product The product is intended for use in an electromagne c environment in which radiated RF disturbances are controlled. The customer or the user of the product can help prevent electromagne c interference by maintaining a minimum distance between portable and mobile RF communica ons equipment (transmi ers) and the product as recommended below, according to the maximum output power of the communica ons equipment.
- Page 40 Global Headquarters www.ndssi.com 5750 Hellyer Ave San Jose, CA 95138 +1 408 776 0085 info@ndssi.com Europe Novanta Europe GmbH Parkring 57-59 85748 Garching Germany +49 89 31 707 100 info.novanta-europe@novanta.com Asia Pacific Novanta Japan East Square Omori 6-20-14 Minamioi, Shinagawa-ku...
