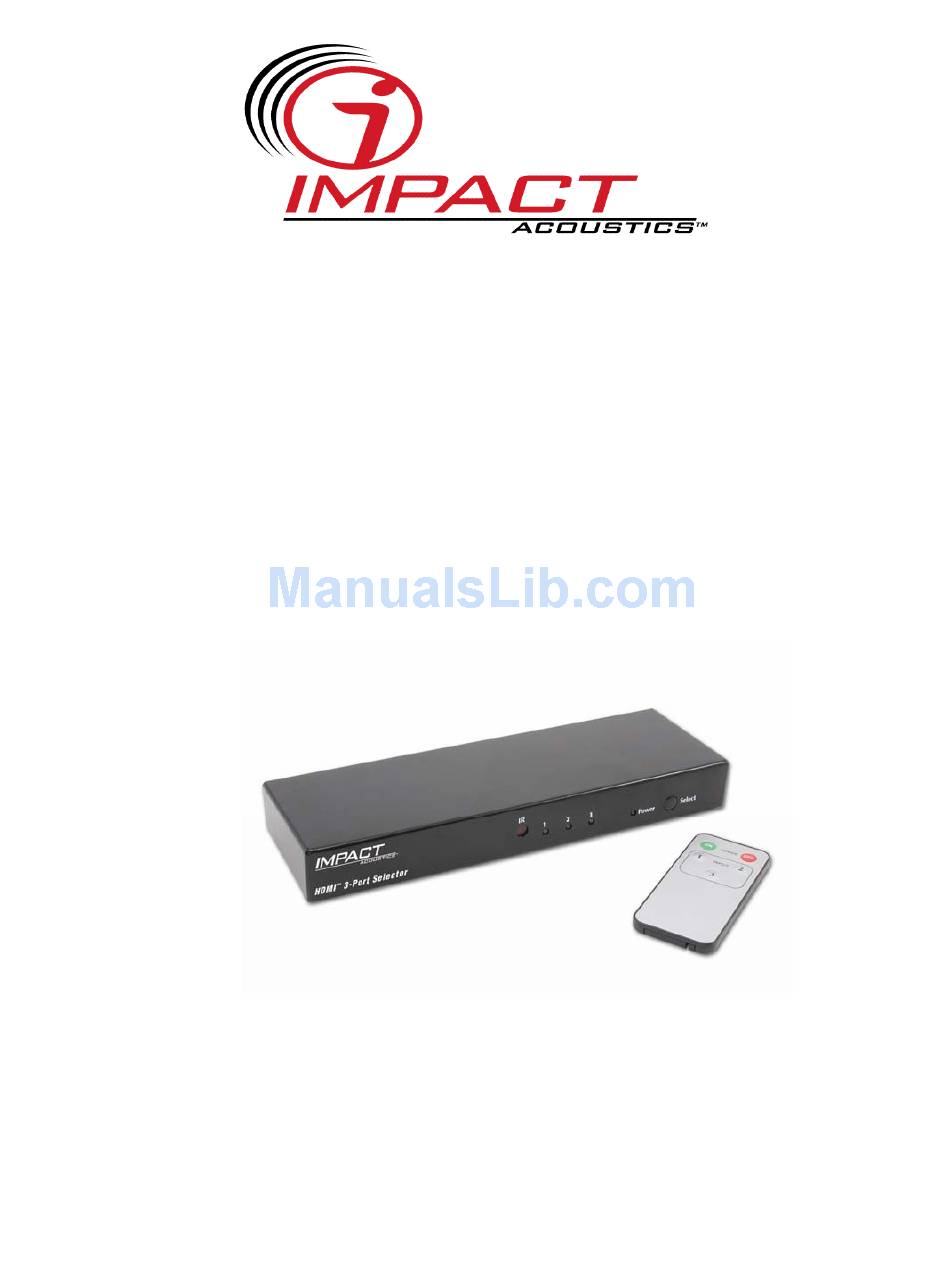

- Page 1 Model: 40921 (Three-Port) 40922 (Five-Port) HDMI™ Selector Switch User’s Manual...
-
Page 2: Table Of Contents
Functions …………………………………………………………………………...1 Features……………………………………………………………………………..2 Connecting Devices…….………………………………………………………..2-3 Operating Components Controlling the Switch from the IR Remote………………………………3 Controlling the Switch from the Front Panel………….………………….4 Troubleshooting……………………………………………………………………..5 Specifications……………………………………………………………………...6 Trademarks…………………………………………………………………………..6 Warranty/Important Safety Information……………………………………………7 Table of Contents... -
Page 3: Functions
User’s Manual Model: 40921 40922 HDMI™ Selector Switch Connect multiple devices using HDMI™ to one television Thank you for purchasing the Impact Acoustics™ HDMI™ Selector Switch. We recommend that you thoroughly read this manual and retain for future reference. 40921 Package Contents: •... -
Page 4: Features
HDMI output to an HDMI input (HDMI IN 1-3 for Model: 40921-shown on next page; HDMI IN 1-5 for Model: 40922-shown below) of the HDMI Selector Switch. (Repeat this step if necessary to connect additional devices) 3. -
Page 5: Controlling The Switch From The Ir Remote
3. Press the “1, 2, or 3” button on the remote control for Model: 40921 (to the right) or “1, 2, 3, 4, 5” for Model: 40922 (shown below). The inputs that are used by your device determine what input buttons on the remote control that you will need to press. -
Page 6: Controlling The Switch From The Front Panel
Note: The Power Indicator Light will remain illuminated as in a standby mode. You can not truly power down the switch unless you press the “Power Off” on the remote control or unplug the unit. IR Signal Power Indicator Reader Light HDMI Input LED Indicator Lights 40922 Select button 40921... -
Page 7: Troubleshooting
Troubleshooting: Problem No Operation 1. Verify the 5V power supply is connected to the selector. 2. Verify unit’s power is on by the power indicator GREEN LED. No picture or Signal; Make sure your video display is HDCP compliant. Poor picture. Make sure all HDMI connectors are tightly secured to all HDMI ports. -
Page 8: Specifications
Specifications: HDMI Source Input Port Display Device Output Port Model 40921: DC Power Jack X 1 Interface HDMI Input Connector X 3 HDMI Output Connector X 1 Single Link Range HDCP Function Display Device Selection IR Extender Max Input Cable Length... -
Page 9: Warranty/Important Safety Information
Impact Acoustics™ One Year Warranty At Impact Acoustics, we want you to be totally confident in your purchase. That is why we offer a one year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device. To request a Return Merchandise Authorization (RMA) number, contact customer service at 877-AV-EXPERT or www.impactacoustics.com. - Page 10 Impact Acoustics™ 1501 Webster St. Dayton, OH 45404, USA Tech Support: 877-AV-EXPERT www.impactacoustics.com...
