SISTEMA DE ALIMENTACIÓN ININTERRUMPIDA CC 100W

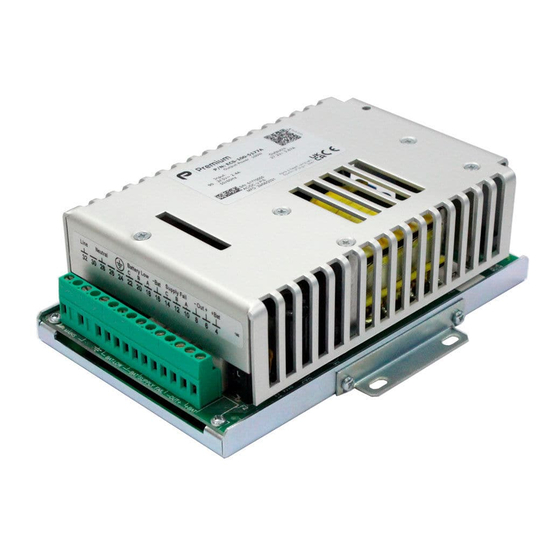

100W DC UNINTERRUPTIBLE POWER SUPPLY
MODELS
Nominal
ECS-100-
Voltage
5173
12V
5177
24V
5179
48V
ENTRADA
Tensión de entrada (seleccionable)
Margen de frecuencia de red
Corriente de pico de entrada en la conexión
SALIDA
Margen de ajuste de la tensión de salida
Regulación de línea
Rizado
Tolerancia de la corriente de carga
AMBIENTE
Temperatura de almacenamiento
Temperatura de funcionamiento
Humedad relativa máxima

MTBF

CEM
Emisión
Inmunidad
SEGURIDAD
Seguridad
Entrada - Salida
Entrada - Tierra
Salida - Tierra
MECÁNICA
Peso
Dimensiones

CONTROL

Alarma FALLO FUENTE actúa por:
Alarma BATERÍA BAJA actúa por:
Alarmas
Tensión máxima conmutable
Potencia máxima conmutable
Corriente máxima de ruptura
Valor mínimo conmutable
PROTECCIONES
Contra sobrecargas y cortocircuitos
Del a batería contra descargas profundas
Protección de la batería contra sobrecargas
Contra Sobre-corrientes de entrada
º
www.premium.es
CARACTERÍSTICAS GENERALES:
Desconexión de la batería por batería baja
Carga de la batería a corriente constante
Selección de 4 niveles de corriente de carga
Paso de red a batería sin caídas de tensión
Alarmas independientes de fallo fuente y
batería baja
Batería no incluida
Maximum
Maximum
Floating
Current
power
Voltage
7.35A
100W
3.68A
100W
1.84A
100W

INPUT

Input voltage (selectable)
Mains frequency range
Inrush current

OUTPUT

Output voltage range
Line regulation
ripple
Charging current tolerance

ENVIRONMENTAL

Storage temperature
Operating temperature
Maximum Relative humidity
MTBF

EMC

Emission
Immunity

SAFETY

Safety
Input - Output
Input - Earth
Output - Earth

MECHANICAL

Weigh
Size
CONTROL
SUPPLY FAIL alarm works by:
BATTERY LOW works by:
Alarms
Maximum switching voltage:
Maximum switching power:
Maximum switching current:
Minimum switching value:

PROTECTIONS

Against overloads and short-circuits
Battery protection against deep
discharges
Battery protection against overloads
Against Input over-currents
Battery
Cut off
Voltage
13.6V
10V
27.2V
20V
54.4V
40V
110 / 220Vac ± 20%
47 ... 63Hz
<32A
-0, +20%Von
<0,2%
< 50 mVpp
<10%
-25ºC ... 80ºC
-25 ... 50ºC (Po=nom)
-25 ... 70ºC (Po=nom/2)
500.000h @ 40°C according to IEC61709
EN61000-6-3
EN61000-2-2
EN60950-1
3000Vac 50Hz 1 min
2000Vac (1500Vac for model 5183) 50Hz 1 min
2000Vac (1500Vac for model 5183) 50Hz 1 min
560g
100 x 160 x 45 mm
Fallo de red, sobrecarga o avería de la fuente
Mains failure, overload or power supply fault
Descarga, cruce o envejecimiento de la batería
Discharge, ageing or short-circuit.
Contactos de relé / Relay contacts
120Vac / 24Vdc
100VA / 24W
1A
1mA @ 1V
Limitación de corriente / Current limiting
Desconexión de batería./ battery cut off.
Por fusible / By fuse
Fusible de entrada / Input fuse
1/4

GENERAL FEATURES:

Battery cut off when battery low
Battery constant current charging
4 Selectable current charging levels
Step mains to battery without voltage dips
Independent alarms of supply fail and
battery low
Battery not included
Charging current selection
I1
I2
Factory setting
1.0A
1.2A
0.5A
0.6A
0.22A
0.3A
95% with no condensation
13-07-2018
9502-113-10
ECS-100
I3
I4
2.4A
4.8A
1.2A
2.4A
0.6A
1.2A
CA-343-10
