LEO
P-3568
493035681

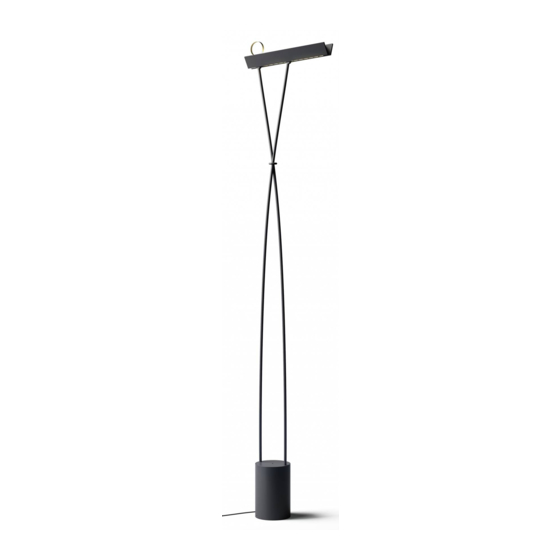

Lámpara de pie metálica. Regulador en la base.
Metallic floor lamp. Dimmer on the base.
LE RECOMENDAMOS LEA LAS INSTRUCCIONES ANTES DE PROCEDER A LA INSTALACIÓN.
* Asegúrese de que la corriente está desconectada antes de conectar el aparato.
* El montaje de luminarias debe ser efectuado solamente por personal técnico.
* No utilizar bombillas con potencia superior a la indicada en la etiqueta.
* Unicamente para uso en interiores.
* Para limpieza no utilizar alcohol ni disolventes
*
Recomendamos la intervención de 2 personas para el montaje de la lámpara
* Conexión tipo "Y". Sólo debe ser sustituida por personal calificado.
Atención: / Warning:
No mirar directamente a los LED.
Do not look directly into any LED source
Bitte nicht direkt in die LED schauen
Ne regardez jamais les ampoules LED directement
Instrucciones / Assembly instructions
1- La colocación del anillo decorativo (A) es
opcional. El lado mate del metacrilato (B) tiene que
quedar en la parte superior. Figura 1
1- Placement of the decorative ring (A) is optional.
Methacrylate matte side (B) has to be at the top.
Figure 1.
2- Fijar el metacrilato (B) a la pantalla. Figura 2
2- Placement the methacrylate (B)on the head.
Figure 2.
WE RECOMMEND TO READ THE INSTRUCTIONS ENTIRELY BEFORE STARTING YOUR INSTALLATION.
PLEASE SAVE THESE INSTRUCTIONS SO THAT YOU CAN REFER TO THEM A LETER TIME.
* Make sure the power has been disconnected before installing the fixture.
* Lighting fixtures should be installed only by qualified personnel.
* Make sure the bulb never exceeds the maximum wattage specified on the fixture label.
* For indoor use only.
* Do not use alcohol or disolvents to clean the lamp
* For your convenience assembly by two people is recommended.
* "Y" connection. This type of connection can only be replaced by qualified personnel.
1
2
67 mm
380 mm
2.5/8"
15"
140 mm
5.1/2"
A
B
B
Advertisement
Table of Contents
Related Manuals for Estiluz LEO P-3568
Summary of Contents for Estiluz LEO P-3568
- Page 1 P-3568 67 mm 380 mm 493035681 2.5/8” 15” Lámpara de pie metálica. Regulador en la base. Metallic floor lamp. Dimmer on the base. 140 mm 5.1/2” WE RECOMMEND TO READ THE INSTRUCTIONS ENTIRELY BEFORE STARTING YOUR INSTALLATION. LE RECOMENDAMOS LEA LAS INSTRUCCIONES ANTES DE PROCEDER A LA INSTALACIÓN. PLEASE SAVE THESE INSTRUCTIONS SO THAT YOU CAN REFER TO THEM A LETER TIME.
- Page 2 Instrucciones / Assembly instructions 3- Para regular la intensidad de la luz girar el botón situado en la base de la lámpara. Figura 3. 3-To adjust the light intensity rotate the button on the lamp base. Figure 3. 4- Las varillas permiten la inclinación de la pantalla para un efecto óptimo.
