Installing an ECOsmarte Programmable
Pool and Spa System
Swim Spa, Small Pool, Endless Pools®, or Hydroworx®
Step1: Determine the proper location for the control box, electrode chamber (requires 11" of pipe space
after the pump), and CO2 chamber (requires 7" of pipe space after the Electrode Chamber). The CO2
chamber will be installed after the electrode chamber. If you have a pool heater, make sure that there is
at least 12" of pipe between the chamber and the heater inlet/ outlet.

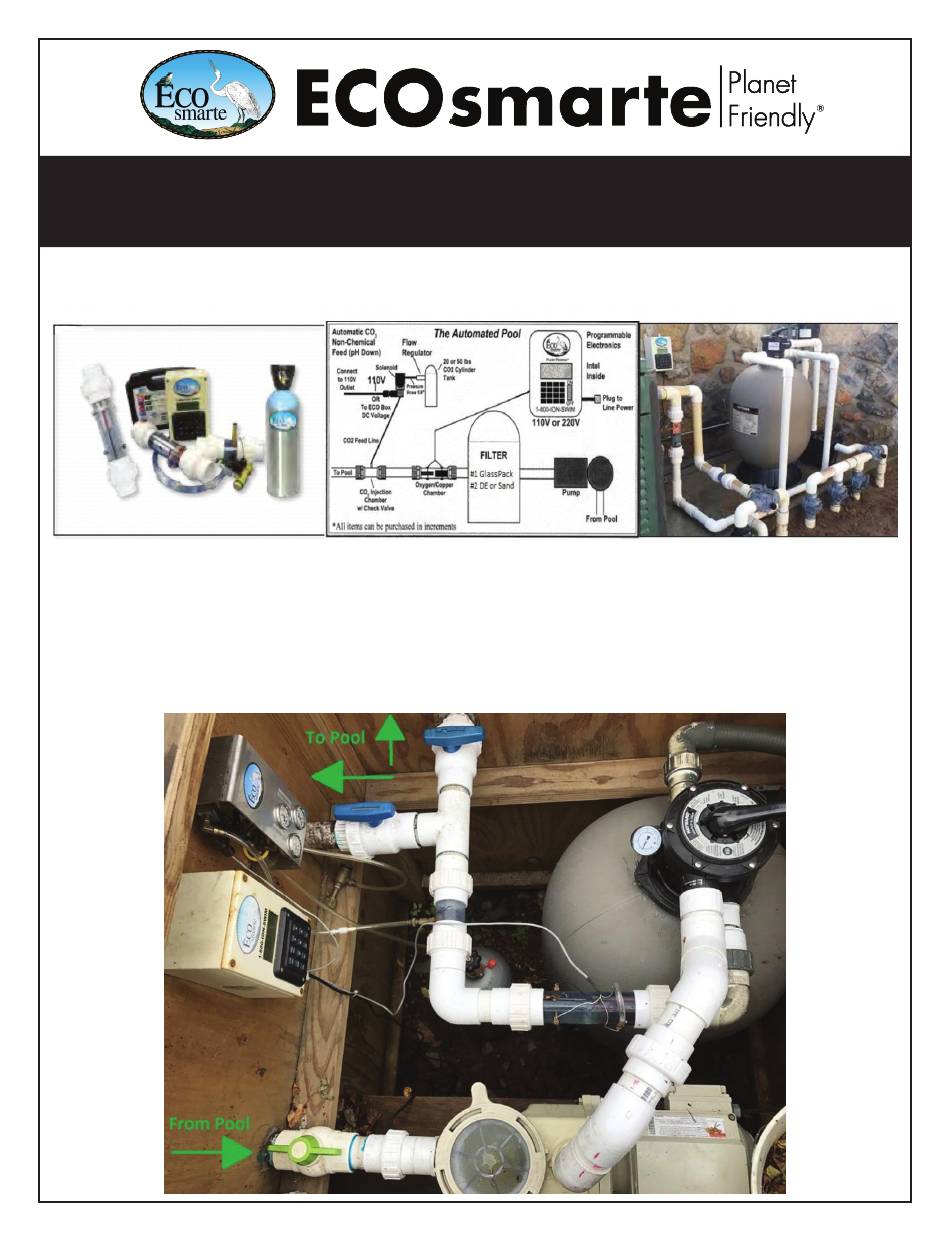

TOP VIEW OF EQUIPMENT VAULT
ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN
1
Advertisement
Summary of Contents for EcoSmarte Swim Spa
- Page 1 If you have a pool heater, make sure that there is at least 12” of pipe between the chamber and the heater inlet/ outlet. TOP VIEW OF EQUIPMENT VAULT ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 2 Tighten unions by hand as much as possible. You may or may not need a slip joint pliers (auto- motive oil filter pliers) to tighten further. ARROW INDICATES FLOW CO2 INJECTION CHAMBER INSTALLS AFTER COPPER/ OXYGEN CHAMBER TO THE POOL/ SPA/ CO2 TO THE PUMP ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 3 BLACK AND WHITE LEADS TO TITANIUM RED AND GREEN LEADS TO COPPER WATER FLOWS THROUGH THE CHAMBER FROM THE COPPER SIDE TOWARDS THE TITANIUM WHITE BLACK TITANIUM COPPER GREEN ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 4 Small Pools, Endless Pool®, and Swim Spas will require a 110v GFCI outlet within 10 feet of both the ECOSmarte control box and chambers. This outlet used on the Endless Pool® or the Hydroworx® is US Building Code since 2009.
- Page 5 Ozone tubing can be 3/8” to 3/4” in diameter. Your programmable ECOsmarte box will overcome those manufacturers without ozone programming and allow you to program six to eight hours oxygen per day. ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 6 Step 6: Find CO2 connection tubing. Locate the white plastic valve near one end of the tubing. We have hand-written near that valve which side to connect to the chamber that you installed, and which side to connect to the regulator assembly. INLINE CHECK VALVE #2 (White) ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 7 Zero Backwash Water Filtration System Made for your Yacht, Diesel Pusher, or Lake Home Ideal for Well Water Fills With Spas Gets rid of rust and odors. Interested? Give Us a Call: 612-866-1200 ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 8 NEXT WEEK will need to be reset. In addition, no OXY or ION will actually occur outside the time parameters entered for the pool. ION will runtime frame selected everyday, manual matches the pool time programming ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
-
Page 9: Manual Function
Your water will become predictable after three weeks and the ION and CO2 values can auto repeat for weeks after dialing them in with water tests. Set “ION” to come on the day before you or your service tests the copper each week. ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN... - Page 10 Remember: Red & Green connect to the copper side, Black & White to the titanium. ECOsmarte Copper Electrodes are not protected under the five-year warranty. The life of copper electrodes depends on multiple factors. Worldwide the life of copper electrodes averages three years.
- Page 11 Pressure side of the filter pump one, ideally between shut off valves. Take care to allow heater union release. Ideally, select the tap after the pump AND after the heater. ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
- Page 12 1 - The ECOsmarte will use the “IONIZE” mode on the day the water fi rst fi lled and heated only. 2 - The ECOsmarte Controll Box will circle lights when water is fl owing due tofi lter cycle OR when the spa is heating.
- Page 13 ECOsmarte Planet Friendly® | 612-866-1200 | ECOsmarte.com | Bloomington, MN...
