- Page 1 VARIO 2 2 0 0 0 0 Ceramic Furnace Operating instructions 01-2014 www.zubler.de...
-
Page 3: Table Of Contents
4 Safety warnings! Page 5 Service Page Thank you for choosing the Zubler VARIO 200 Ceramic Oven. We hope you are pleased with the improvements and new features. Be assurred, our technology comes from the requirments of experi- enced dental technicians and our desire to continu- ally improve the performace of our products for our clients.We focus on the goal of building furnaces of... -
Page 4: Introduction
0.2 General The correct processing of modern dental ceramic materials is placing higher demands on dental techni- cians. We believe that the VARIO 200 furnaces meet these requirements by providing the latest technology for current and future ceramic processing. The software installed in the VARIO 200 series enables you to optimize firing management for all dental ceramics available on the market. -
Page 5: Initial Oven Setup
0 Introduction Start of operation: Have the firing tray ready Electrical connection: The ceramic furnace requires 120V/60Hz. 1. Do not use any other power cable or extensi- on cables 2. Use fused circuit protection before the oven (e.g. multiway connector at the desk) The power switch should be in position "0". -
Page 6: Use Within Specifications
0 Introduction 0.5 Use within specifications The VARIO 200 furnace series was exclusively designed for the firing of dental ceramics, and is intended only for those applications. the user shall be liable for damages resulting from any other use, At temperatures above 1075°C/1967°F, the working life of the heating muffle is reduced. -
Page 7: Operation
1 Operation 1.0 Display functions Current temperature LCD color display Dialer Sicherungshalter F1, F2, F3 MAIN - MENU 450C V 200 Run Programs Hauptschalter Edit Programs Setup Oven Run warm-up program Start night mode ® Down Enter Section for selecting parameters: Section for changing values Confirm / Cancel –... -
Page 8: Edit Programs
1 Operation Temporary overwriting of a program during operation Touch the yellow "Edit Prog" key. There appears in the display a red bar with the first modifiable parameter. Use the dialer or +/-button to adjust the parameter. Confirm with the green "Enter" key. Repeat the last two steps until you do not see the green "Enter"... - Page 9 1 Operation Program typs - 1: Professional Program Individual firing management with 16 programmable parameters for processing all dental ceramic materials perfectly. Start temperature Temperature in the 003-PULSE MC CERAMAY firing chamber at which the program starts. 450C Edit “ 063-PULSE MC DENTIN 1 “...
- Page 10 Seite 1 Operation Program types - 2: Standard Program A standard firing management in accordance with the guidelines for the dental ceramics available on the market. Start temperature Temperature in the 003-PULSE MC CERAMAY firing chamber at which the program starts. 450C Edit “...
- Page 11 Seite 1 Operation Program types - 3: Special Program This firing program is recommended for processing ceramic materials, which require two holding times under vacuum and/or two different heat rates (specially for crystallization programs for IPS e.max e.max ® CAD) Start temperature Temperature in the 010- CERAMAY firing chamber at which the program starts.
- Page 12 1 Operation Program types - 4: TTC Prof.: This firing program is recommended for processing ceramic materials on zirconia frameworks. Use your regular firing schedule wilth the addition of the TTC cooldown stage for optimal results. (The VARIO 200Zr has only this function.) Start temperature Temperature in the 010- CERAMAY firing chamber at which the program starts.
-
Page 13: Copy/Change Program
1 Operation 1.2.2 Copy/Change program Select the program to be copied using the + / - keys or the dialer and confirm with the green "Enter" key. You now return to the brand page. Select the brand and confirm by pressing the green "Enter"... -
Page 14: New/Change Brand
Seite Seite Seite Seite 1 Operation 1.2.6 New/change brand For clear arrangement and better handling, you have 25 programmable program groups (“Brands”) availa- ble (indexed from 0 to 24) with 20 program positi- ons each. In the “Edit programs” mode, select “New/ Change Brand”... -
Page 15: Setup Oven
1 Operation “Load Programs from USB ” Select “Load Programs from USB” using the + / -keys or the dialer and confirm by pressing the green "Enter" key. Select the program file you want to load from the USB, using the + / -keys or the dialer and confirm by pressing the green "Enter"... -
Page 16: Diagnostic Tests
1 Operation 1.3.6 Diagnostic tests ‚ Run pre-heat/dry program This program is run prior to the first operation of the furnace or when the furnace has been stored or turned off for long durations.(see 0.5 Set-up oven) Note: The lift remains in a slightly open position, so any existing residual moisture can easily escape. -
Page 17: Run Warm-Up Program
1 Operation 1.4 Run Warm-up program Before starting work in the morning, always activa- te the “warm-up”-program to ensure homogene- ous, uniform heating. 1.5 Start night mode Instead of switching the furnace off, use night MAIN-MENü mode to prevent moisture and contamination from 450C entering the firing chamber while the furnace is not in use. -
Page 18: Service
2 Service 2.1 Fuse The VARIO 200 ceramic furnace requires the follo- wing fuse: Voltage 240V 230V 120V 100V Fuse 10Aslow blow 10Aslow blow 15Aslow blow 15Aslow blow 2.2 Filter element for vacuum pump The filter element prevents dissolved particles and/or condensation from clogging the vacuum pump. -
Page 19: Operational Information
2 Service 2.5 Operational Information The operator using the furnace must close the lift after completing a firing program After closing the lift, the unit will remain at the pro- grammed idle temperature for four hours. If the unit is not used, it will automatically go into the “stand- by”... -
Page 20: Data
1x castallated beam (ceramic)* 1x Warranty card 1x Operating instructions Accessories: P3 vacuum pump only VARIO 200 4 Safety warnings! Never put any potentially flammable materials such This furnace must be plugged into the as paper, brushes or similar things, as well as easily proper grounded circuit. - Page 21 4 Safety warnings! Leave at least 8” – 12” of free space around and Do not touch the surface of the heating chamber, above the unit. Adjacent structures surrounding the heating elements or the interior surface of the unit should be non-flammable and the area the heating chamber.
-
Page 22: Service
It contains important information on safety, operation and maintenance that is designed to protect you and prevent damage to the instrument. 5 Service Zubler USA 4220 Steve Reynolds Blvd. Suite 24 Norcross, GA 30093 Telephone: 770-921-2131 Email: sales@zublerusa.com www.zublerusa.com... - Page 23 Current temperature LCD color display Dialer MAIN MENU 450C V 200 Run Programs Edit Programs Setup Oven Run warm-up program Start night mode ® Down Enter Section for selecting parameters: Section for changing values Confirm / Cancel – key Rapid selection (circle dialer) Step by step (yellow keys) CUSTOMIZE CALIBRATION Users can offset their calibration for ceramic programs...
- Page 24 B000xx/ 02-2014 www.zubler.de Zubler Gerätebau GmbH Buchbrunnenweg 26 D-89081 Ulm-Jungingen...
Need help?
Do you have a question about the VARIO 200 and is the answer not in the manual?
Questions and answers

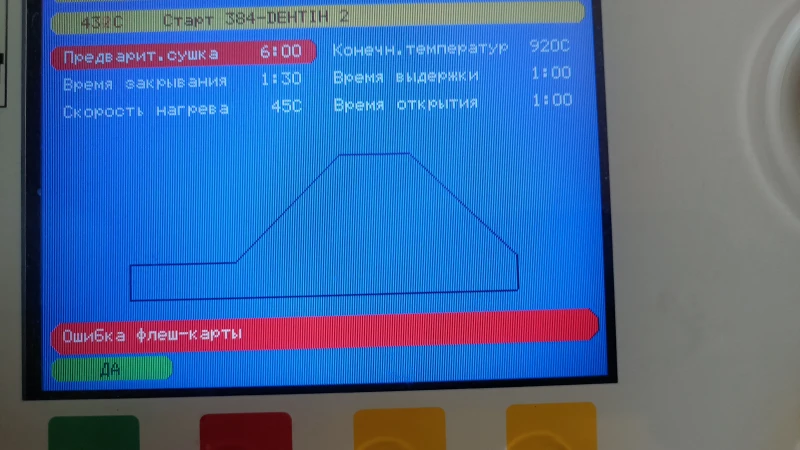

Здравствуйте. Печка пишет -"ошибка флеш карты"
