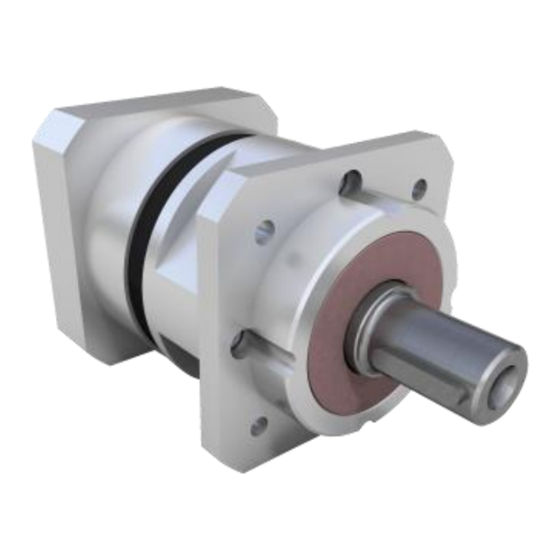

- Page 1 Operating Manual Planetary Gearbox EPL50X – 155X EPL-Q EPL-SA EPL-FE ESP-L...
-
Page 2: Table Of Contents
Operating manual Planetary gearbox EPL, EPL50X-155X, EPL-Q, EPL-SA, EPL-FE, ESP-L Table of contents Introduction................................3 General information ............................ 3 Warning and safety information ......................... 3 Safety instructions ..............................4 Machinery Directive ............................ 4 Intended use ..............................4 General safety information ......................... 4 Product description .............................. -
Page 3: Introduction
EPL, EPL50X-155X, EPL-Q, EPL-SA, EPL-FE, ESP-L 1 Introduction This document contains important information about safe usage of the Eisele planetary gearbox from series EPL, EPL50X-155X, EPL-Q, EPL-SA, EPL-FE und ESP-L. For simple understanding, all series of the planetary gearboxes will be referenced as planetary gearbox. -
Page 4: Safety Instructions
Operating manual Planetary gearbox EPL, EPL50X-155X, EPL-Q, EPL-SA, EPL-FE, ESP-L 2 Safety instructions The entire manual, especially the safety instructions, must be considered by every person working with the planetary gearbox. In addition, all legal regulations, in particular regarding accident prevention and environmental protection, must be followed. -
Page 5: Product Description
▪ The planetary gearboxes must be disposed of properly. 3 Product description The Eisele planetary gearboxes of the ESP series are single or two-stage low backlash planetary gearboxes. The drive motor is attached using an integrated clamp connection within the gearbox and a motor-specific adapter plate. -
Page 6: Lubrication
Please contact us in these cases. Technical data The technical data of the respective planetary gearboxes can be found in the current product catalog, the technical datasheet or our website: www.eisele-getriebe.de 4 Delivery and handling Delivery condition The planetary gearboxes are packed in safe and appropriate packaging. -
Page 7: Assembly And Installation
A detailed description of the motor assembly is provided in the respective assembly instructions. These are available on the internet at www.eisele-getriebe.de Attaching couplings, toothed pulleys, etc. Couplings, pulleys, gear wheels, sprocket wheels etc. are to be mounted up onto cleaned or lightly greased shafts with the help of the axial threaded hole in the gearbox output shaft or by heating. -
Page 8: Sound Emission
As described in chapter 3.2, under normal operating conditions, a grease change is required after 15.000 operating hours or after 3 years. In order to change the gearbox grease, the planetary gearbox must be dismantled. We, therefore, advise having Eisele Antriebstechnik carry out the grease change. Recommissioning after testing or maintenance The outside of the planetary gearbox must be cleaned prior to recommissioning. -
Page 9: Disposal
Operating manual Planetary gearbox EPL, EPL50X-155X, EPL-Q, EPL-SA, EPL-FE, ESP-L 8 Disposal The planetary gearboxes are packed in a safe and appropriate packaging. All packaging materials must be disposed of at the designated disposal points, the country-specific requirements must be met. The planetary gearboxes must be disposed of in accordance with the national regulations and laws.
