ALL-NEW
Assembly and Usage Instructions

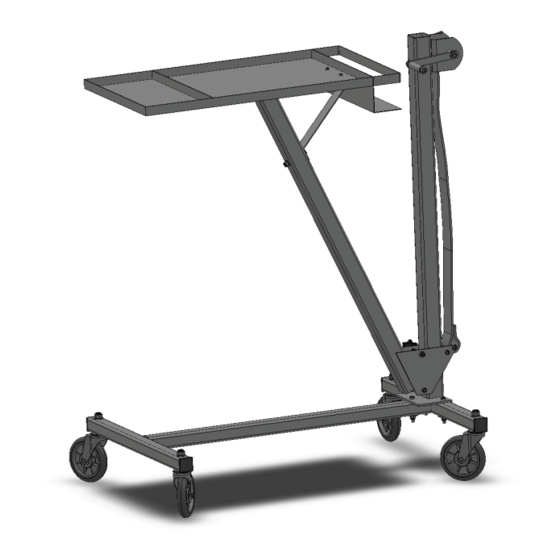

The ProGear Topside Tool-Tray provides easy tool
and parts access from high to low. Raise and lower
your workspace altitude with the Easy-Crank
Ratchet - up to 72 inches high!
The ProGear Topside Tool-Tray is a nice combination
of great looks and extraordinary function.
Model 3-750
517 South 28th Street; Van Buren, AR 72956
T
479-474-3460
F
479-431-6875
PROFESSIONAL
The
PROFESSIONAL
TOOLS DIVISION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProGear Topside Tool-Traq and is the answer not in the manual?

Questions and answers

Summary of Contents for TRAXION ProGear Topside Tool-Traq

  • Page 1 PROFESSIONAL ALL-NEW Assembly and Usage Instructions The ProGear Topside Tool-Tray provides easy tool and parts access from high to low. Raise and lower your workspace altitude with the Easy-Crank Ratchet - up to 72 inches high! The ProGear Topside Tool-Tray is a nice combination of great looks and extraordinary function.
  • Page 2 TraXion Engineered Products | ProGear Line Instructions v1 | 3-750 Assembly Attach the Riser Tube to the I-Base using three bolts and three lock nuts. Then slide the Butler Arm onto the Riser Tube Butler Arm as shown. Riser Tube...
  • Page 3 Instructions v1 | 3-750 TraXion Engineered Products | ProGear Line Assembly Bolt the Ratchet onto the Riser Tube and attach Webbing to the Ratchet Slider as shown. Webbing Slider 8mm x 15mm Bolts, Lock Nuts and Plastic Cap 8mm x 70mm Bolt with...
  • Page 4 TraXion Engineered Products | ProGear Line Instructions v1 | 3-750 Assembly Attach the Tray Angled Sup- ports to the bottom of the tray as shown here. Front Rear 8mm x 15mm Bolts and Lock Nuts Attach the Tray to the Tray Angled Supports.
  • Page 5 TraXion Engineered Products | ProGear Line Assembly Attach the Casters to the I-Base. Make sure the two Locking Casters are on the Rear of the I-Base 12mm Lock Nuts Rear Front Locking Casters Here Your New Altitude Adjustable ProGear Topside Tool Tray is now assembled and ready to roll.
  • Page 6 Instructions v1 | 3-750 TraXion Engineered Products | ProGear Line Usage Altitude Adjustment Lock both Front Casters. To increase Tray altitude leave the Ratchet Lever Handle Ratchet Lever engaged with the Ratchet Gear as shown here. Crank handle until at desired altitude. Then see tension knob information below.
  • Page 7 TraXion Engineered Products | ProGear Line Instructions v1 | 3-750 Usage Safety First Only move the Topside Tool Tray when the tray is at it’s lowest altitude. ALWAYS lock both Rear Casters before using the Tray or changing its altitude.
  • Page 8 Other ProGear Products The ProGear Topside Creeper Racing GearSeat The ProGear Widebody Creeper patented and/or patents pending Contact Us Phone: 1-479-474-3460 Email: info@traxionproducts Or visit ProGear on the web at www.traxionpro.com ProGear is Professional Tools Division of TraXion Engineered Products...
